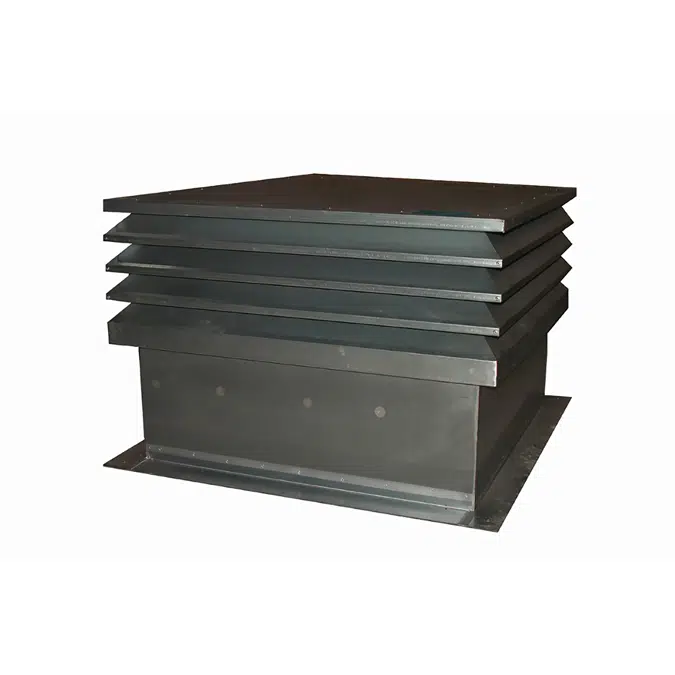

BlueKit HVL - Louvre hood

Technical data

Net ventilation aera:
0.10 m² / 0.23 m² / 0.41 m² / 0.62 m² / 0.90 m² / 1.22 m²
Recommended unfinished opening (B1xH1):
590 x 450 mm / 700 x 450 mm / 760 x 620 mm / 930 x 790 mm / 1090 x 950 mm / 1260 x 1120 mm / 1430 x 1290 mm
External base dimensions (B2xH2):
740 x 600 mm / 850 x 600 mm / 910 x 770 mm / 1080 x 940 mm / 1240 x 1100 mm / 1410 x 1270 mm / 1580 x 1440 mm
Ventilation hood dimensions (B3xH3):
HVL-A: 890 x 750 mm / 1000 x 750 mm / 1060 x 920 mm / 1230 x 1090 mm / 1490 x 1350 mm / 1660 x 1520 mm / 1930 x 1790 mm
HVL-S: 690 x 550 mm / 800 x 550 mm / 860 x 720 mm / 1030 x 890 mm / 1190 x 1050 mm / 1360 x 1220 mm / 1530 x 1390 mm
Ventilation base height (L1): 500 mm
Ventilation hood height (L2):
HVL-A: 250 mm / 300 mm / 350 mm /400 mm
HVL-S: 320 mm / 385 mm / 450 mm /515 mm
Total height roof hood (L3):
HVL-A: 750 mm / 800 mm / 850 mm /900 mm
HVL-S: 770 mm / 835 mm / 900 mm /965 mm
Material: Galvanised sheet steel (HVL-S) / Aluminium (HVL-A)
Wall thickness base: Base body: 1.2 mm, flange: 2 mm
Wall thickness top hat: Inner body: 1.2 mm, outer plate 2 mm
Production: Base: sopt welded, cap: riveted
