FONODAN BJ

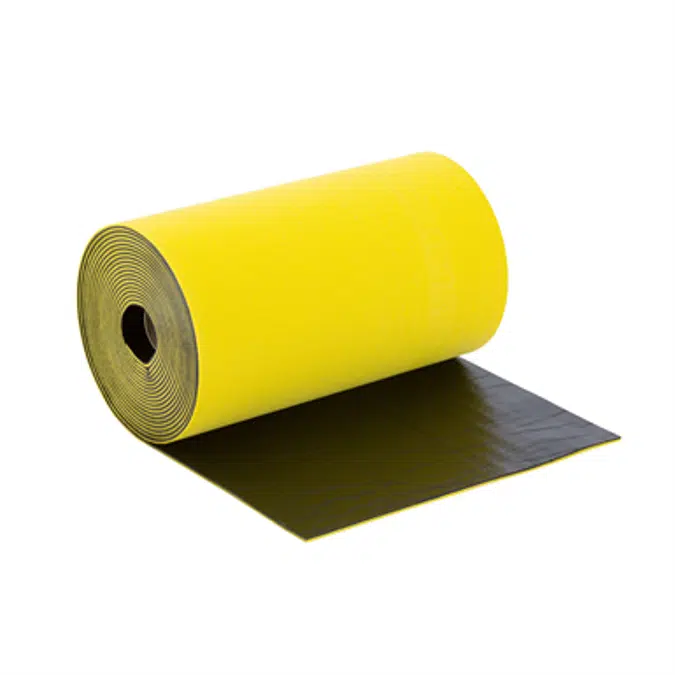

FONODAN BJ is a two layer product made of a self-adhesive high density bitumen membrane thermally bonded to a cross-linked polyethylene. FONODAN BJ acoustically works providing the acoustic mass of the tube body and removing resonant frequencies. SCOPE - It is specially designed to minimize the noise of evacuation pipes in all types of buildings. - The Fonodan 130 increases the insulation in the noisiest area of the downpipe, such as junctions and elbow pipes. - The Fonodan 70 reduces the noise of siphonic boats and pipes hanging down inside false ceilings.

Specification

TECHNICAL DATA
- Nominal mass 1100 gr/ml (EN 1849-1)
- Thickness 3.9 mm (EN 1923)
- Thickness tolerance less than 5 % (EN 823)
- Length and width tolerance less than 1 % (EN 822)
- Airborne sound insulation improvement, ΔRW more than 12 dB (EN 140-16)
- Dynamic stiffness ≤ 100MN/m3 (EN 29052-1)
- Hysteresis load more than 1.9 Nm (EN 3386-1)
- Remaining deformation, (24h, 50% compression, 23ºC) less than 35 % (EN 1856)
- Tensile strength: longitudinal more than 600 N/5 cm (EN 12311-1)
- Work temperature more than 10 ºC
- Reaction to fire B s1 d0 Euroclase (EN 13501-1)
- Cross-linked polyethylene thermal conductivity 0.040 w/mºK (EN 12667, EN 12939)
PRESENTATION
- Length 10 m
- Width 42 cm
- Total thickness 3.9 mm
- Rolls per pallet 32 rolls
- ml / pallet 320 ml
- Product Code 610207

Technical specification

Unique ref.fonodan_bj
Product familyAcoustic Insulation
Product groupPolyethylene
TypeObject (single object)
Date of publishing2019-03-08
Edition number1
Height (mm)420
Width (mm)10000
Depth (mm)3.9

Links

Product urlhttp://portal.danosa.com/danosa/CMSServlet?node=610207&lng=2&site=4
Instruction videohttps://www.youtube.com/watch?v=ZhGdeU44Q8c

Material mainPolyethylene
Material secondaryAsphalt
Designed inSpain
Manufactured inSpain
Weight Net (Kg)2

Classification

BIMobject CategoryBuilding Materials - Acoustic Panels & Accessories
IFC classificationBuilding Element Proxy
Uniclass 2015 CodePr_35_31_85_02
Uniclass 2015 DescriptionAcoustic chute coatings
CSI MasterFormat 2014 Code09 81 00
CSI MasterFormat 2014 TitleAcoustic Insulation
OmniClass Number23-23 17 17
OmniClass TitleChutes
CSI UniFormat II CodeD20
CSI UniFormat II TitlePLUMBING
