Dab Pumps

NKVE-Booster-sets

Name: NKVE-Booster-sets
Rating: 4.5 (11 reviews)

4.5(11 reviews)

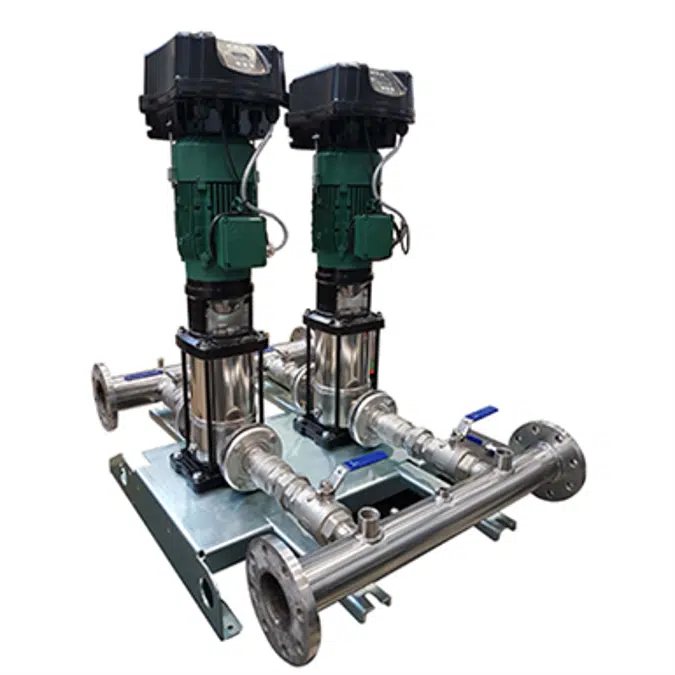

1, 2, 3, 4 NKVE 10, 15, 20, 32, 45 MCE-P are variable pressure units for residential building service and commercial building service. They can also be used in agriculture and in watering systems. NKVE are 1, 2, 3 or 4 multi-impeller vertical centrifugal pumps with coupling with MCE-P variable frequency drive installed as standard. The models with NKVE 10 S, 15 S, 20 S have the parts in contact with the liquid in AISI 304 stainless steel. The models with NKVE 32 and 45 have the pump body and upper flange in cataphorized cast iron. The impellers, diffusers and pump casing are in AISI 304 stainless steel. One control unit and one pressure sensor per units. Delivery check valve and expansion vessel for each pump. X version with materials in contact with water in stainless steel AISI 316. The units are supplied assembled, set and tested directly at the factory. IE3 electric motors. D.Connect ready (D.Connect Box supplied separately).

Specification

1, 2, 3, 4 NKVE 10, 15, 20, 32, 45 MCE-P are variable pressure units for residential building service and commercial building service. Galvanized steel base. They can also be used in agriculture and in watering systems. There are 1, 2, 3 or 4 multi-impeller vertical centrifugal pumps with coupling with MCE-P variable frequency drive installed as standard. One control unit and one pressure sensor per units. Delivery check valve and expansion vessel for each pump. Suction and delivery manifolds in AISI 304 stainless steel. Possibility of remote control thanks to the D.Connect service (D.Connect Box supplied separately). The units are supplied assembled, set up and tested directly in the factory and complete with installation and maintenance instructions and test report of the test. The NKVE 10 S, 15 S and 20 S models have all the parts in contact with the liquid in stainless steel. Internal pump body, impellers and jacket in AISI 304 steel, diffusers in technopolymer. Removable mechanical seal in silicon carbide-graphite. It is possible to remove it without removing the motor, starting from the 5.5 kW models. The NKV 32 and 45 versions have the impellers, diffusers and jacket in AISI 304 stainless steel. Pump body and sealing port in cataphorized cast iron. Mechanical seal in removable silicon carbide-graphite without removing the motor starting from the 5.5 kW models. Available on request version X with materials in contact with water in AISI 316 stainless steel.

Technical specification

Unique ref.NKVE-Booster-sets
Product familyVSD Booster set
Product groupVSD Booster set
TypeBuilding Material
Date of publishing2020-12-17
Edition number1

Links

Product urlhttps://www.dabpumps.com/en/products/pressure-units/electronic-pressure-units/1-2-3-4-nkve-10-15-20-32-45-mce-p
Installation instructionshttps://dna.dabpumps.com/dat/Docs/DAB/EN/Cod_001359321.pdf
Product certificationhttps://dna.dabpumps.com/dat/Docs/DAB/EN/Cod_001359321.pdf
Technical descriptionhttps://www.dabpumps.com/sites/default/files/document/60152203_1-2-3-4-NKVE_MCE_TS_ENG.pdf

Material mainSteel
Material secondaryCast iron
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryPlumbing - Pumps
CSI MasterFormat 2014 Code22 11 23
CSI MasterFormat 2014 TitleDomestic Water Pumps
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures
