EVOSTA 2/SAN

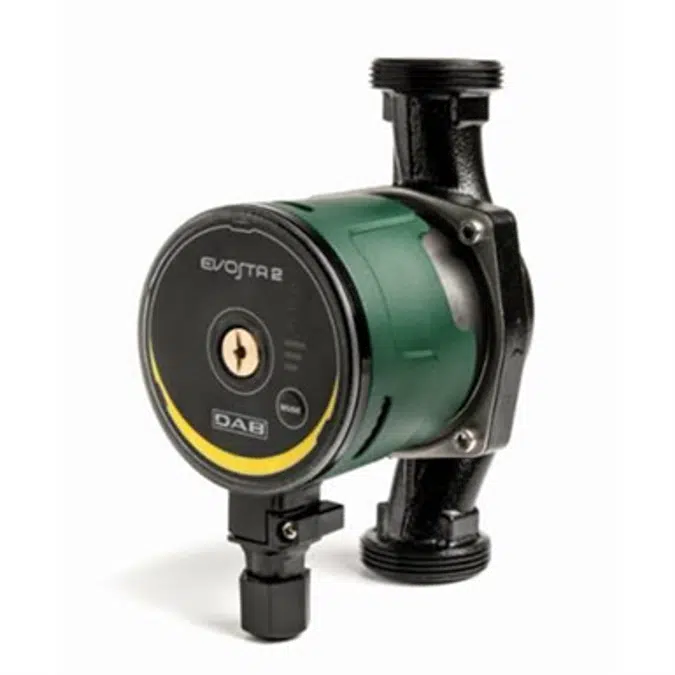

APPLICATIONS Low energy consumption electronic pump for water circulation in all types of domestic heating and cooling systems. ADVANTAGES The new range of EVOSTA 2 circulators by DAB combines the strength of an mechanical circulator with the benefits of the electronic circulator. Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI ≤ 0.18, as well as the protection class IPX5 and the integrated bleeding plug, the EVOSTA 2 family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 2 circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary. CONSTRUCTION FEATURES Cast iron pump body with cataphoresis paint coating and wet rotor motor. Steel motor casing, technopolymer impeller. Ceramic motor shaft on graphite bushings lubricated by the pumped liquid. Stainless steel rotor liner, stator liner and closing flange. Ceramic thrust ring. EPDM seal ring and brass bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection. CONTROL PANEL The settings of the EVOSTA 2 circulators can be modified in the control panel on the facia of the pump device. The pumps have nine settings that can be selected scrolling the MODE button. Three LED lights on the facia show the current setting.

Specification

TECHNICAL DATA Operating range: 0,4-3,6 m3/h with head up to 6,9 metres. Pumped liquid temperature range: from -10 °C to +110°C Working pressure: 10 bar (1000 kPa) Protection class: IPX5 Insulation class: F Installation: with horizontal motor axis Standard power input:: single-phase 1x230 V~ 50/60 Hz Pumped liquid Clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%).

Technical specification

Unique ref.EVOSTA-2-SAN
Product familyCirculators
Product groupWet Rotor Electronic Circulators
TypeObject (single object)
Date of publishing2018-03-11
Edition number1

Links

Product urlhttps://www.dabpumps.com/en/products/circulators/wet-rotor-electronic-circulators/evosta-2
Installation instructionshttps://dabpumps.com/sites/default/files/qrcode_pdf/60187640_EVOSTA2-3-2SOL.pdf
Technical descriptionhttps://www.dabpumps.com/sites/default/files/document/60187311_NEW%20EVOSTA%202-3_TS_ENG.pdf

Material mainCast iron
Material secondaryPlastic
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryPlumbing - Pumps
IFC classificationPipe Fitting
ETIM CodeEC010980
ETIM NameBuilt-in circulation pump
UNSPSC nameCirculating pumps
UNSPSC code40151504
Uniclass 2015 CodePr_65_53
Uniclass 2015 DescriptionPump products
CSI MasterFormat 2014 Code22 35 23
CSI MasterFormat 2014 TitleCirculating, Domestic Water Heat Exchangers
OmniClass Number23-27 17 00
OmniClass TitlePumps
CSI UniFormat II CodeD2020
CSI UniFormat II TitleDomestic Water Distribution
