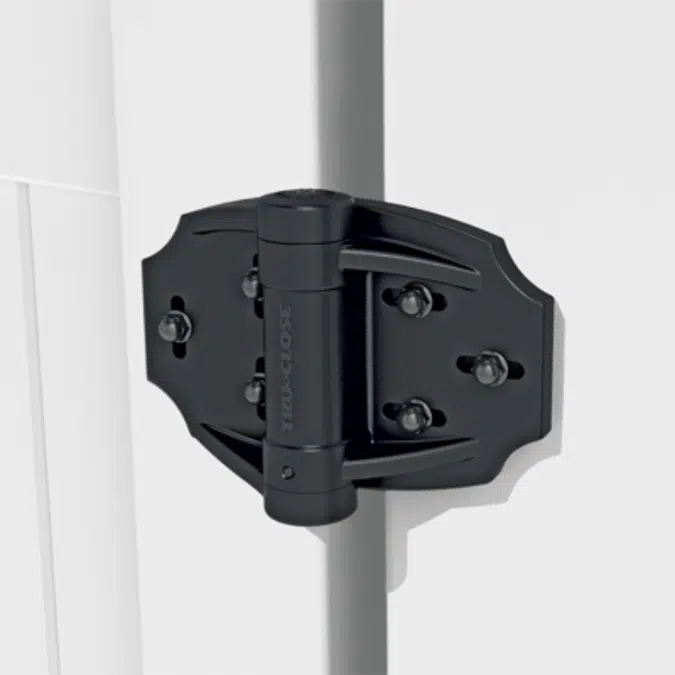

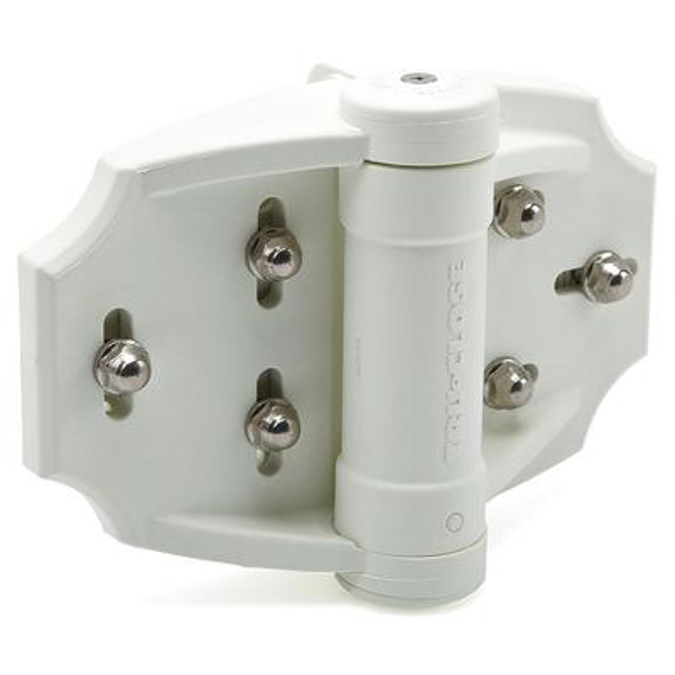

TruClose® Multi-Adjust Heavy Duty

TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose® MULTI-ADJUST™ Hinges are the world’s most adjustable gate hinges. They’re ideal for heavy or high-traffic wood or vinyl gates weighing up to 60kg. TruClose hinges are quick and easy to install and to adjust for self-closing speed. D&D has sold millions of award-winning TruClose® Gate Hinges worldwide.

Specification

Highly Adjustable Gate Hinges for Wood & Vinyl Gates
• 3-way adjustment - vertical, horizontal & tension
• Up to ¾" (19mm) adjustment
• Self-closes wood and vinyl gates up 132 lb (60kg)
• Won’t rust, bind, sag or stain
• Made from super-strong engineered polymer
• Internal stainless steel spring and components
• UV stabilized, self-lubricating durability
• Only one person needed to hang large gates
• Easy alignment legs & adjustment slots
Brand: TruClose®
Product Code: TCHDMA1 – TCHDMA1WT
Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
Gate Type: Self-Closing
Gate Material: Wood, Vinyl/PVC
Self-Closing Gate Weight: Up to 60kg (132lb)
Approx Gate Size: 3ft W x 6ft H (1m x 1.8m)
Gate Frame/Post Shape: Square-to-Square
Min Post Size: 3"+ (80mm)
Ideal Gate Gap: 1" (25mm)
Fixing Method: Screw-On
Color/Finish: Black, White

Technical specification

Unique ref.TruClose-Multi-Adjust-Heavy-Duty
Product familyGate Hinges
Product groupHinges
TypeObject (single object)
Date of publishing2021-08-09
Edition number1

Links

Product urlhttps://us.ddtech.com/collections/all/products/truclose-multiadjust-heavy-duty
Installation instructionshttps://ddtechnologies.box.com/s/0t0w4nw9yo706vid3efwm5usqkm8gx06
Instruction videohttps://youtu.be/mWor9sLxZEo

Designed inAustralia
Manufactured inAustralia

Classification

BIMobject CategoryLandscaping - Gates
UNSPSC nameGates
UNSPSC code301720
Uniclass 2015 CodePr_30_36_36_34
Uniclass 2015 DescriptionGate hinges
CSI MasterFormat 2014 Code32 31 00
CSI MasterFormat 2014 TitleFences and Gates
OmniClass Number23-11 25 17
OmniClass TitleGate Hardware
