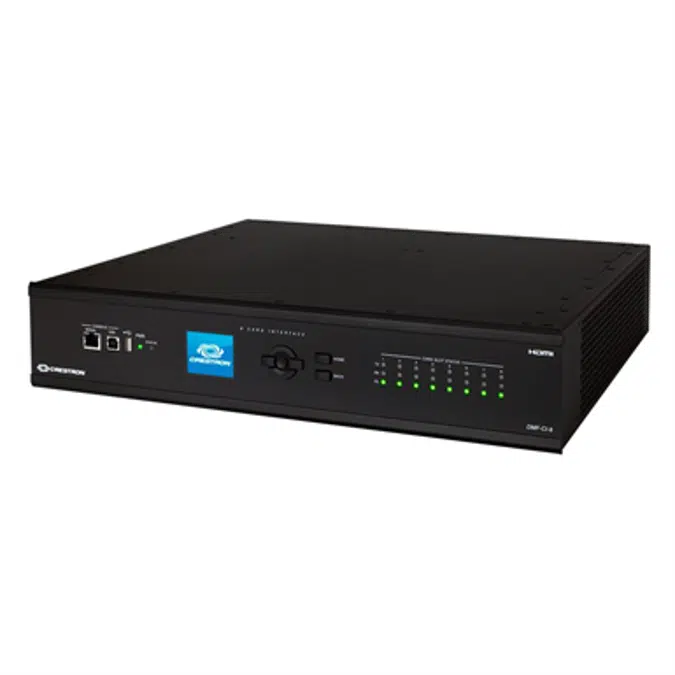

DMF-CI-8 - DigitalMedia™ Card Chassis for DM-NVX-C & DMCF, 8 Slots

Communications
USB Host - For loading of firmware via a USB mass storage device
USB Device - Computer console for setup
RS-232 - Computer console for setup

Card Slots
CARD SLOT ID 1 – 8 - (8) Card slots; Each slot accepts (1) DM-NVX-C series encoder/decoder card or (1) DMCF series transmitter or receiver card

Connectors
G - (1) 6-32 screw; Chassis ground lug
100-240V~4.3-1.8A 50/60Hz - (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included
CONSOLE, SERIAL (front) - (1) 8-pin RJ45 female; RS-232 computer console port
CONSOLE, USB (front) - (1) USB Type-B female; USB computer console port
USB (front) - (1) USB Type A female; Supports USB mass storage devices for firmware update

Controls & Indicators
PWR - (1) Bi-color green/amber LED, indicates operating power supplied from AC line, turns amber while booting and green when operating
STATUS - (1) Bi-color green/red LED, indicates a normal (green) or critical error (red) condition
Display - (1) 2 inch (52 mm) diagonal, 220 x 176 pixels, 16-bit TFT active matrix color LCD, displays IP address settings for each installed card
Nav Pad - (1) 5-way navigation pad for menu navigation and adjustment of settings
HOME - (1) Pushbutton, enters or returns to the home menu
BACK - (1) Pushbutton, steps menu back one level
CARD SLOT STATUS, TX 1 – 8 - (8) Green LEDs, each indicates the corresponding card is in transmitter mode
CARD SLOT STATUS, RX 1 – 8 - (8) Green LEDs, each indicates the corresponding card is in receiver mode
CARD SLOT STATUS, OL 1 – 8 - (8) Green LEDs, each indicates the corresponding card is online

Power
Main Power - 4.3-1.8 Amps @ 100-240 Volts AC, 50/60 Hz
Power Consumption - 350 Watts fully loaded

Environmental
Temperature - 32° to 104° F (0° to 40° C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - 1195 BTU/hr fully loaded

Enclosure
Chassis - Metal with black finish, vented sides, fan-cooled
Front Panel - Metal, black finish with polycarbonate label overlay
Mounting - Freestanding or 2 RU 19-inch rack-mountable (rack ears included)

Dimensions
Height - 3.47 in (89 mm)
Width - 17.40 in (442 mm); 19.00 in (483 mm) with rack ears
Depth - 15.43 in (392 mm)
Weight - 9.9 lb (4.5 kg) without cards
