Expansion joints for walls and facades P-15 corner

Archived

Expansion joints for walls and facades P-15 corner

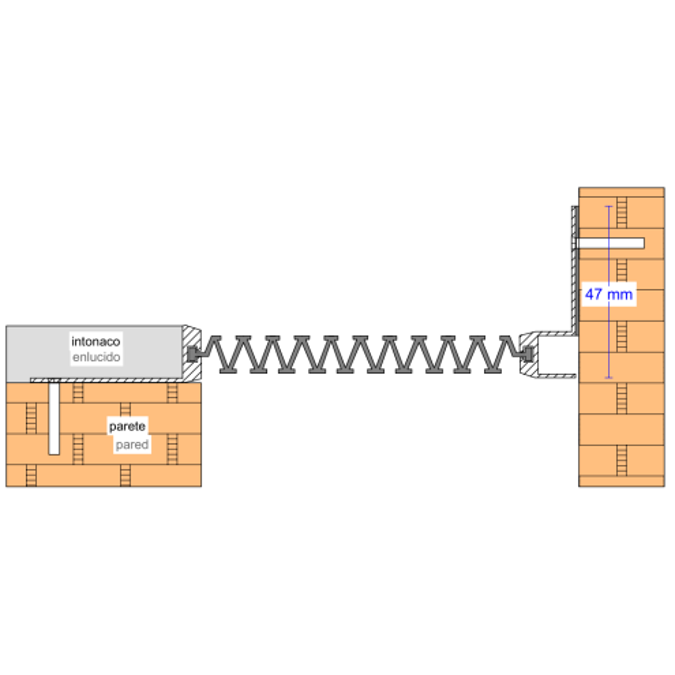

Structural joint for walls and facades in corner version to be layed over plaster.

Bellows seal in black or grey color

Profiles are supplied in 3 lm long bars and insert in 25 lm rolls

The profile takes up differentiated ground settling and the particular seal
design allows large movements.

Specification

Structural joint P 15/.. for walls and facades in corner version to be layed over plaster for joints frmo 20 up to 300 mm.
Neoprene flexible seal available in grey or black color, guaranteeing expansion and contraction of the joint, (resistant to atmospheric corrosion and temperature variations from -30°C to +90°C).
The cellular neoprene on the bearing area to provide for any unevenness of the walls or ceilings.

Technical specification

Unique ref.P-15corner
Product family CPR FLOOR
Product group Expansion joints for floors
TypeObject (single object)
Date of publishing2022-02-07
Edition number1

Related

Material mainExtruded Aluminum
Material secondaryRubber

Classification

BIMobject CategoryConstruction - Joining Systems
Uniclass 2015 CodePr_35_90_27_11
Uniclass 2015 DescriptionChloroprene and aluminium expansion joints
OmniClass Number23-13 31 21 19 11
OmniClass TitleExpansion and Contraction Joints
