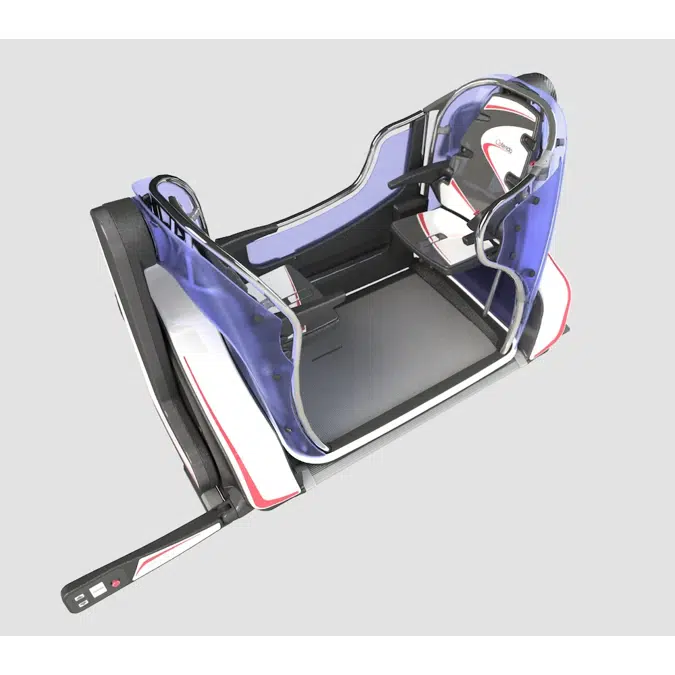

    Poolpod 3.0® – The World’s Leading Swimming Pool Access Lift

    Poolpod 3.0® is a next-generation submersible swimming pool lift designed to provide safe, dignified, and independent access to the water. Whether for wheelchair users, older adults, or anyone who finds ladders difficult, Poolpod makes pools more welcoming and inclusive.

    Originally developed as part of the London 2012 Paralympic legacy, Poolpod is now recognised worldwide as the benchmark in pool accessibility. The new model features improved safety systems, easier installation, and an updated visual design, ensuring it works for both swimmers and operators.

    Unlike traditional pool hoists, Poolpod 3.0 allows users to travel standing, seated, or in a wheelchair. Space is provided for a carer to accompany the swimmer if needed, and multiple grab rails, fold-down seating and audio prompts support every user type.

    For operators, Poolpod is portable and easy to manage. It installs without a pit or plant room, runs on rechargeable batteries, and can be moved between pools on integrated transport wheels. The system increases daily pool usage and revenue while meeting Equality Act and ADA pool lift standards.

    Key Features & Benefits

    • Universal Pool Compatibility: Transports users up to 1.4m depth, suitable for both skimmer and freeboard pools.
    • Flexible & Portable: Built-in electronic transport wheels allow Poolpod to be relocated between pools at short notice.
    • Inclusive Design: Accompanied use enables a wheelchair user and caregiver to enter the pool together, providing both physical and emotional support.
    • User-Friendly Controls: Large interface screens, tactile buttons, RFID wristband entry, and audio guidance support users with different abilities, including those with visual impairments.
    • Accessibility for All: Standing, seated, or wheelchair users can access the pool with confidence using dedicated handrails, fold-down seats, and automatic wheelchair lock-down safety functions.
    • Reliability & Safety: Operates without a plant room or pit, powered by a rechargeable battery system offering up to 40 cycles per charge.
    • Striking Aesthetics: A modern design that complements high-quality leisure facilities.

    Why Choose Poolpod 3.0?

    • Meets Sport England Guidance: Endorsed as best practice for inclusive pool access.
    • Proven ROI for Operators: Centres with Poolpod report up to 30 daily users, generating over £10,000 additional revenue per year through increased visitor numbers.
    • Futureproof & Compliant: Supports Equality Act, ADA pool lift standards, and inclusive facility design guidance worldwide.
    • Health Benefits of Swimming: Swimming provides low-impact exercise proven to reduce cardiovascular disease risk, improve mobility, and support mental wellbeing.
    Specification
    • Poolpod 3.0® – Submersible Pool Lift for Inclusive Swimming

      Poolpod 3.0® is a next-generation submersible pool platform lift that delivers safe, dignified, and independent access to swimming pools. Designed for wheelchair users, older adults and anyone who finds ladders difficult, it combines modern engineering with a focus on user experience.

      Specification

      • System type: Submersible pool platform lift, free-standing, deck-anchored with two resin sockets
      • Vertical travel: Up to 1.4m (suitable for skimmer and freeboard pools)
      • Capacity: 250kg (2 people, or 1 wheelchair user + caregiver)
      • Platform size: 2.0m x 0.85m (with flip-up controls folded)
      • Controls:
        • 3 in-pool control points (up/down, emergency stop, display screen)
        • RFID wristband access for users
        • Operator remote control (smartwatch based)
        • Audio guidance and large display screens for accessibility
      • Seating: 2 fold-down seats with optional armrests (stowable when using wheelchair access)
      • Safety features:
        • Automatic wheelchair lock-down
        • Overload detection (max load warning)
        • Anchor load sensors
        • Safety edges under platform and door
        • LED perimeter lighting for attendants
      • Drive system: Electro-hydraulic, constant-pressure operation
      • Speed: 0.13m/s
      • Power: 24V rechargeable battery system (hot-swappable)
        • Supplied with 4 batteries (2 in use, 2 on charge)
        • ~40 cycles per charge
        • Charging supply: 230V, 1ph, 2A, 50Hz
      • Mobility: Integrated 12-wheel transport system with hydraulic lift and fold-out steering handles for relocation
      • Construction: 316 stainless steel, nickel alloys, engineering ceramics, and high-resistance plastics
      • Environment: Waterproof electronics (IP68 & IP69K), resistant to pool chemicals and temperatures up to 45°C
      • Emergency operation: Manual winding or cordless drill option in case of power loss
      • Compliance: Meets Equality Act, ADA standards, UN38.3, Machinery Directive, EMC, and Low Voltage Directive


    Technical specification
    • Unique ref.poolpod-3-0
    • TypeObject (single object)
    • Date of publishing2025-08-22
    • Edition number1
    Related
    • Material mainStainless steel 316
    • Material secondaryPE/PP
    • Designed inUnited Kingdom
    • Manufactured inUnited Kingdom
    Classification
    • BIMobject CategorySports & Recreation - Swimming Pool
    • IFC classificationFurniture
    • Uniclass 2015 CodeSs_80_50_60_94
    • Uniclass 2015 DescriptionVertical platform lift systems
    • OmniClass Number23-23 13 11 25
    • OmniClass TitleWheel Chair Lifts
