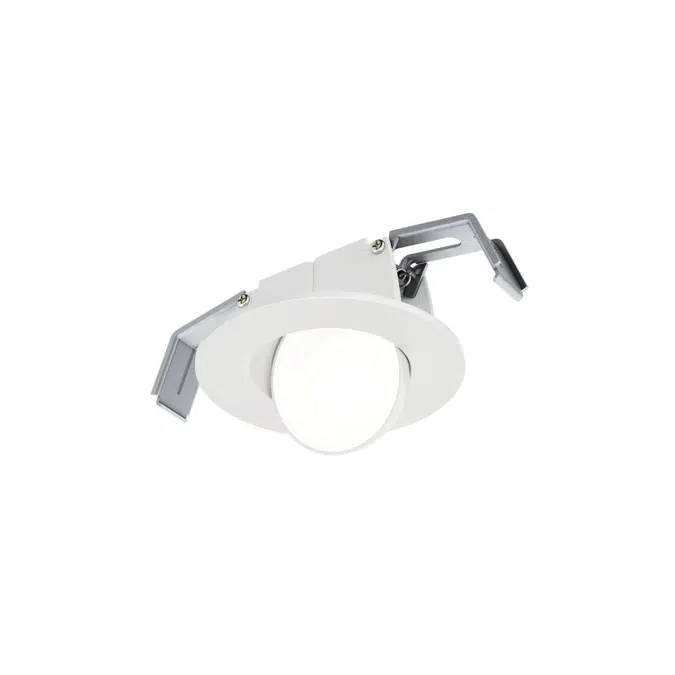

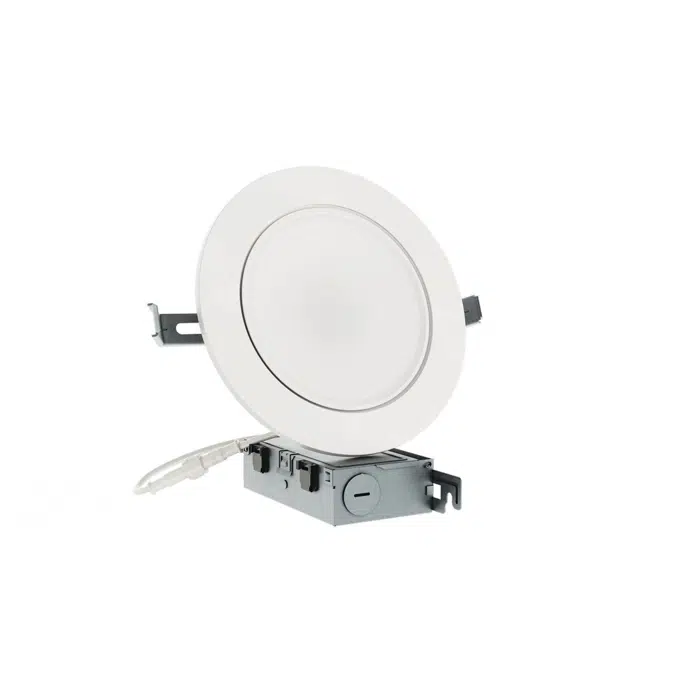

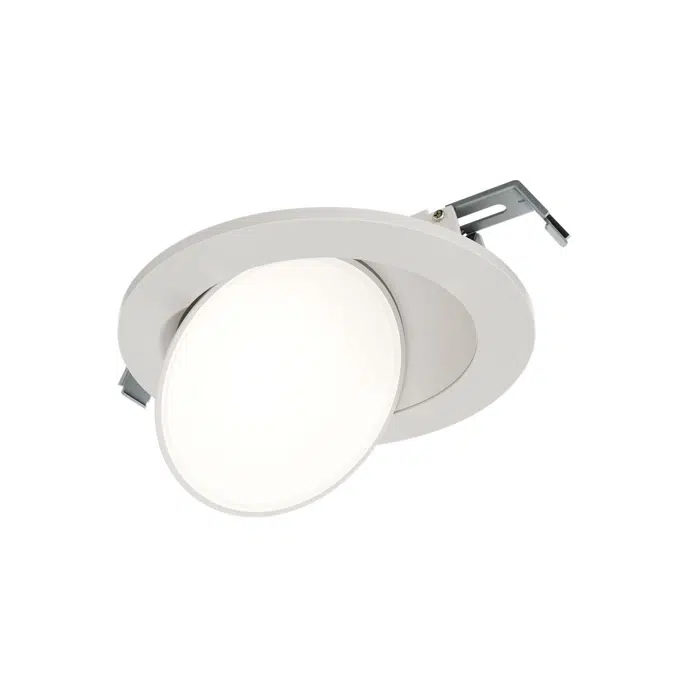

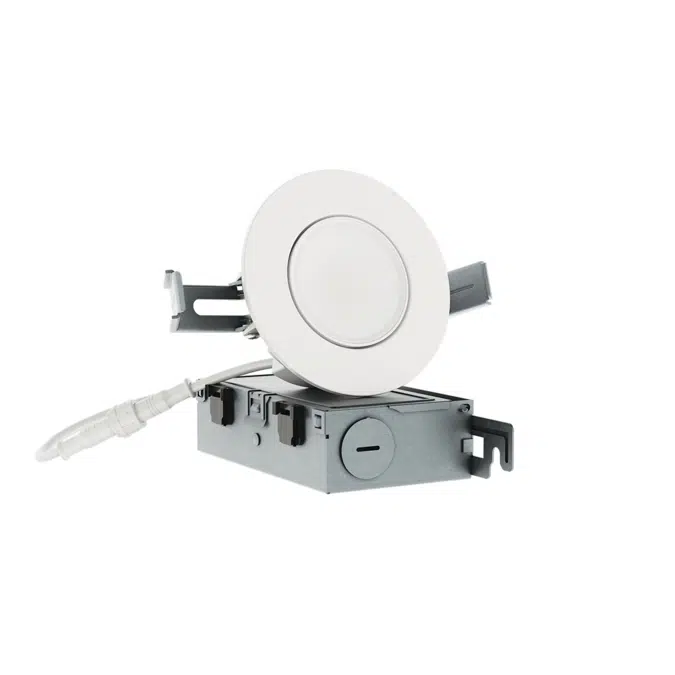

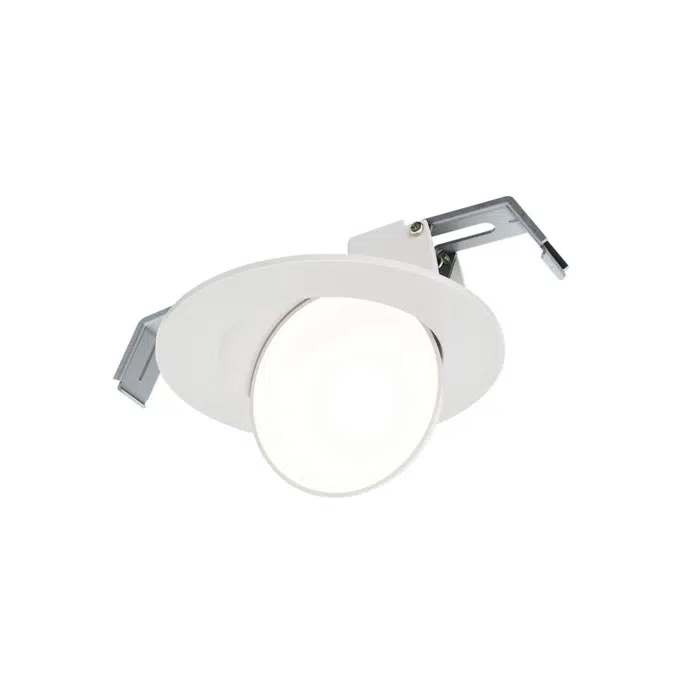

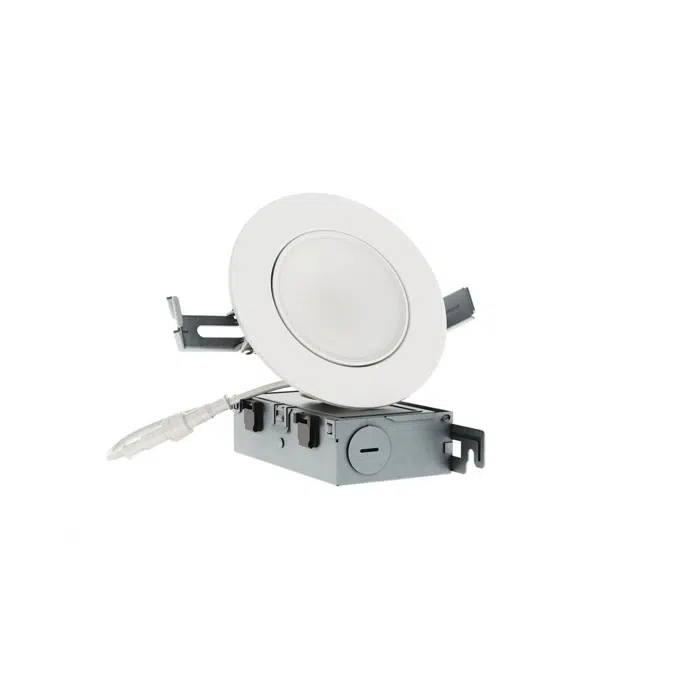

    The HLA Super Adjustable Canless LED Gimbal simplifies installation by mounting directly to drywall or suspended ceilings without the need for a recessed housing or additional junction box, saving time and money. The revolutionary Flip-N-Klip Locking Springs prevent painful spring snap making installation faster, easier, and safer. The HLA Series features 5 field-selectable color temperature options, and the gimbal tilts up to 90° for ultimate aiming and control. Designed to match the look and dimensions of our best-selling HLB Series, HLAs are perfect for accent lighting and task lighting applications.

    Specification

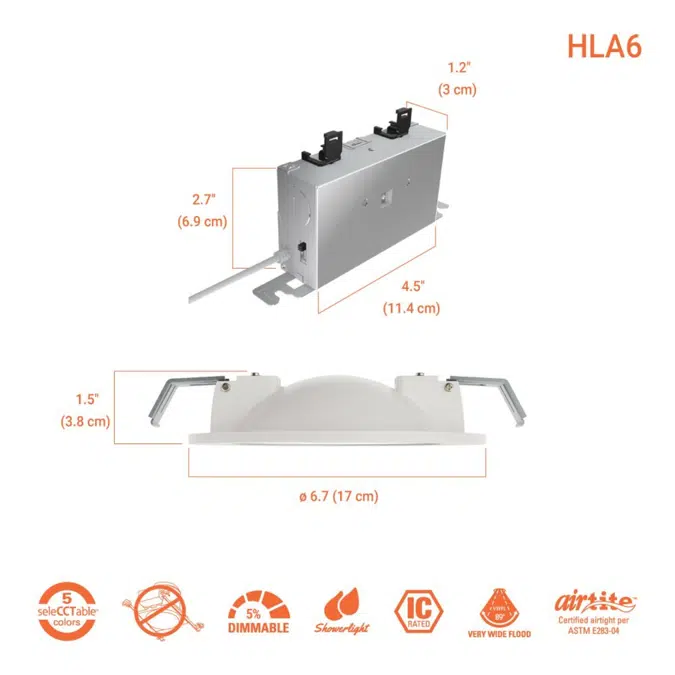

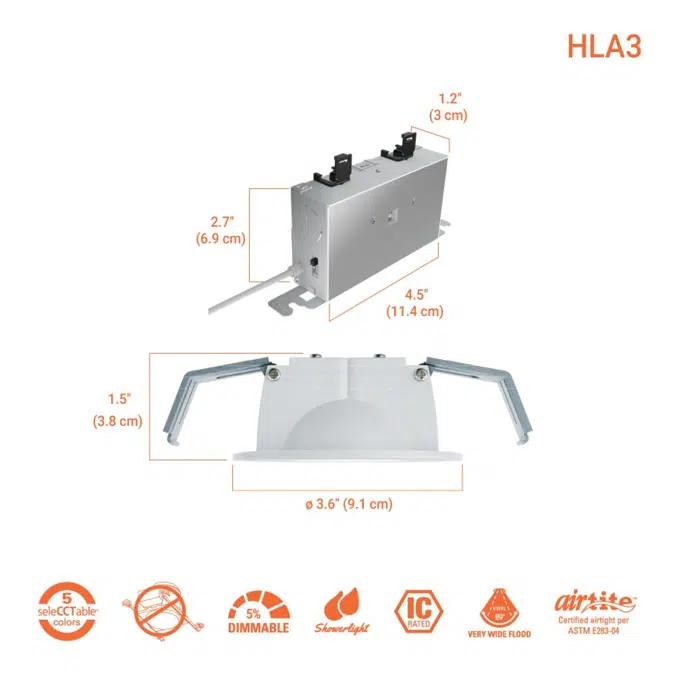

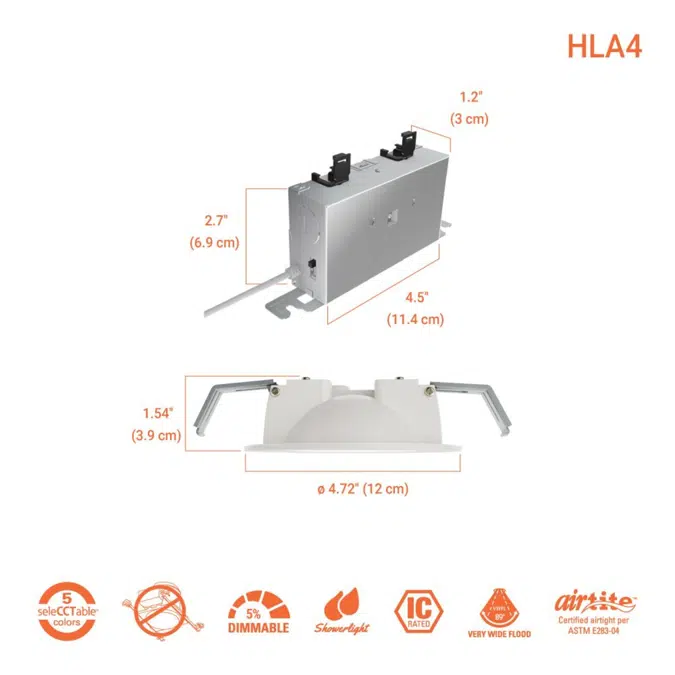

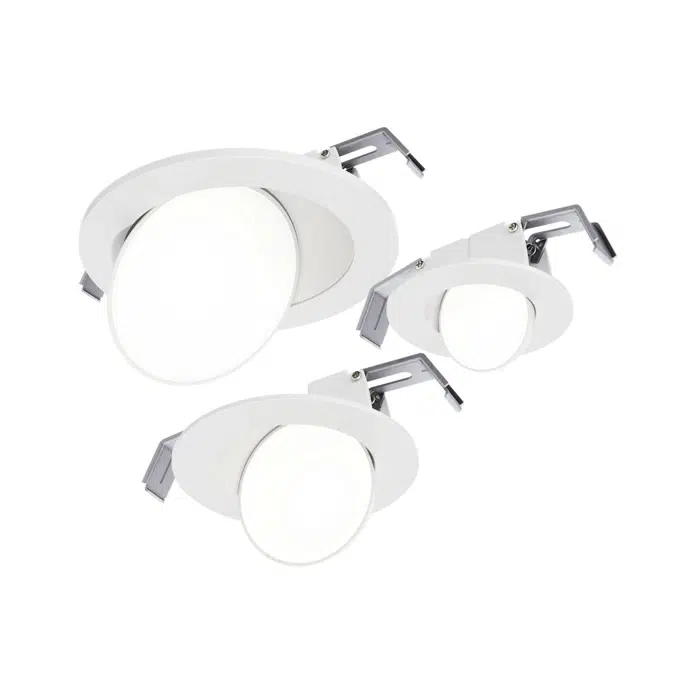

      • Round 3-, 4-, & 6-inch Super Adjustable Canless LED Gimbals
      • Flip-N-Klip Locking Springs prevent painful spring snap
      • Lens & Trim: Slim metal trim with smooth diffuse lens
      • Color Temperature (CCT): 5-color Field-SeleCCTable (27/30/35/40/5000K); 90+ CRI
      • Brightness (@3000K): 610, 660, or 990 lumens
      • Dimming: Dims to 5% (phase cut LE/TE); 120V input
      • AIR-TITE, wet location-listed, and ENERGY STAR®
      • 50,000 hrs of maintenance-free operation in damp or wet locations
      • 5-year warranty
    Technical specification
    • Unique ref.cooperlighting-hla-super-adjustable-canless-led-gimbals
    • Product familyLighting
    • Product groupHalo LED
    • TypeObject (single object)
    • Date of publishing2026-02-27
    • Edition number1
