WaveLinx CAT Emergency Switchpack

WaveLinx CAT Emergency Switchpack

WaveLinx CAT Emergency Switchpack

WaveLinx CAT Emergency Switchpack

Cooper Lighting Solutions

WaveLinx CAT Emergency Switchpack

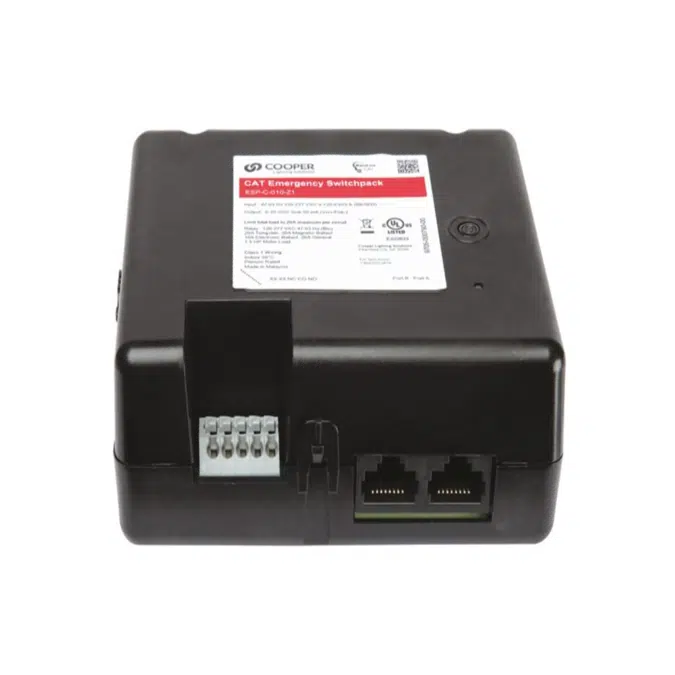

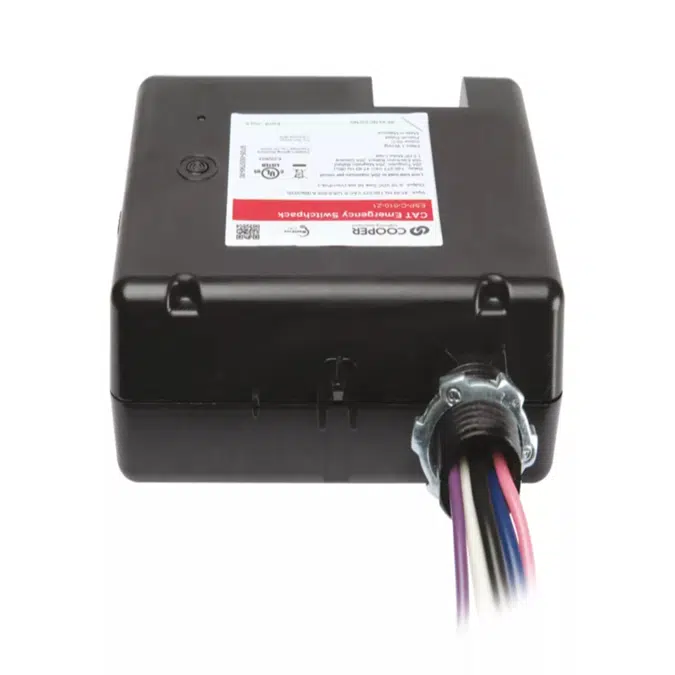

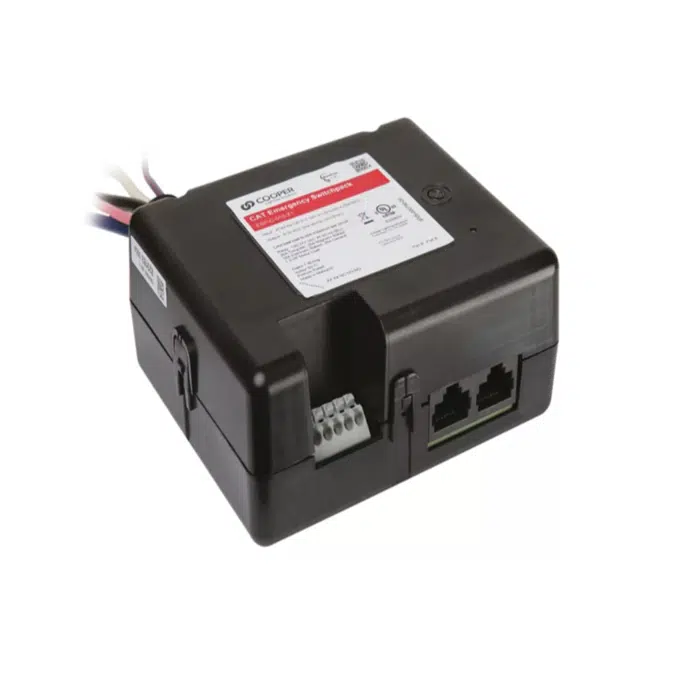

The CAT Emergency Dimming Switchpack (ESP-C-010-Z1) is a lighting control device designed to control loads powered via an emergency circuit. Each unit consists of 120-277VAC 20A latching relay used to turn on/off LED and non-LED loads and a continuous 0-10V dimming control used to dim/raise fixtures' light level. The CAT Emergency Dimming Switchpack is used in conjunction with the standard CAT Dimming Switchpack to control the lights within a space. The CAT Emergency Dimming Switchpack is equipped with two RJ 45 connectors to connect the unit to other CAT devices over standard CAT5 cables using WaveLinx CAT protocol. The unit has an elongated chase nipple that allows it to be attached either directly through a 1/2"" knockout into a junction box or inside an adjacent box for meeting specific local code requirements in ceiling plenums.

Technical specification

Unique ref.cooper-controls-cat-esp-c-010-z1
Product familyControls
Product groupWaveLinx
TypeObject (single object)
Date of publishing2024-05-10
Edition number1

Links

Classification

BIMobject CategoryElectrical - Controls

Region availability

North America
Canada
Costa Rica
Cuba
Dominican Republic
Greenland
Guatemala
Haiti
Honduras
Jamaica
Mexico
Nicaragua
Panama
United States

Similar products

Image for Greengate OAWC-P- Passive Infrared Wall/Corner Sensor

Cooper Lighting Solutions Greengate OAWC-P- Passive Infrared Wall/Corner Sensor

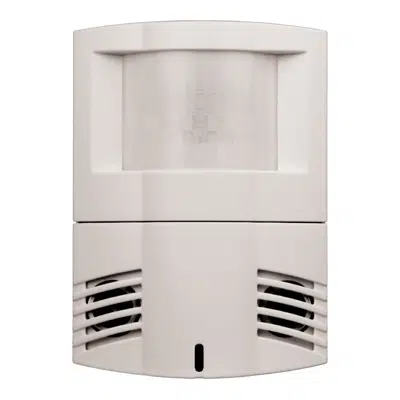

Image for Greengate OAWC-DT - Dual Technology Wall/Corner Sensor
