DOTTO 22
DOTTO 22
    Co.E.M.

    DOTTO 22

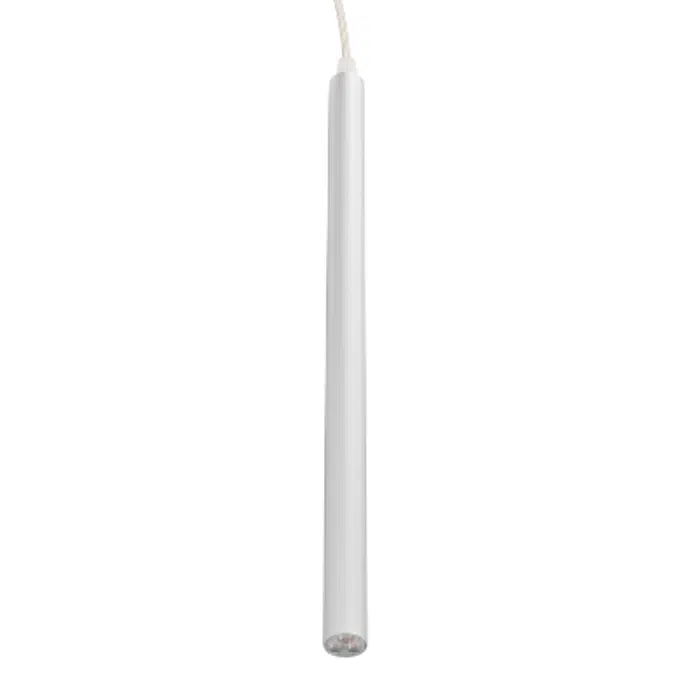

    DOTTO22 is a suspended LED projector with fix optics and an aluminum body. It is available with a diameter of 22mm and different lenghts.

    Specification

    • Suspension for indoor application;ceiling mounting;body in anodized aluminiu;finishing: anodized Al;3 power LED High Intensity;7,5W (230V), 3W (350mA), 6W (700mA);includes 1,5m tramsparent FEP cable, 2x0.75 Ø6 mm;total delivered flux:   804lm (7,5W,3000K), 402lm (3W,3000K), 804lm (6W,3000K);optics: 16°,37°;LED color: white 2200K, 2700K, 3000K, 4000K;ingress protection: IP40;The product was manufactured in compliance with the EN 62471:2009 standards, risk-free class;appliance class: I (230Vac model),III (350-700mA model);weight: 0,245 Kg;dimensions: Ø22x200mm;  dimming using a dimmable power supply unit (350-700mA version);

    Technical specification
    • Unique ref.dotto22
    • Product familyIndoor
    • Product groupSuspension
    • TypeObject (single object)
    • Date of publishing2018-12-20
    • Edition number1
    • Width (mm)22
    • Depth (mm)200
    Links
    Related
    • Material mainAluminium
    • Material secondaryGlass
    • Designed inItaly
    • Manufactured inItaly
    • Weight Net (Kg)0.245
    Classification
    • BIMobject CategoryLighting - Pendant
    • IFC classificationLight Fixture
    • UNSPSC nameLighting Fixtures and Accessories
    • UNSPSC code3911
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 50 00
    • CSI MasterFormat 2014 TitleLighting
    • OmniClass Number23-35 47 11
    • OmniClass TitleLighting Fixtures
    • CSI UniFormat II CodeD5020
    • CSI UniFormat II TitleLighting & Branch Wiring
