Slidemaster SR2

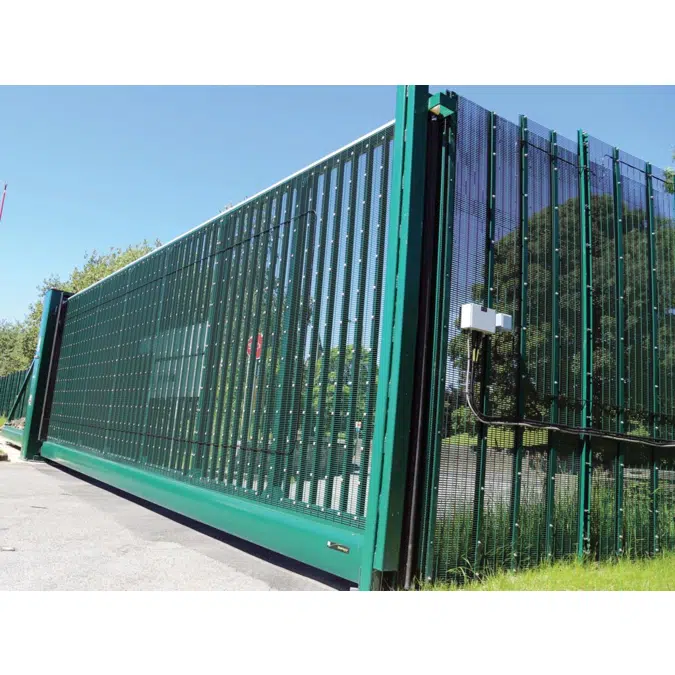

Automatic LPS1175 SR2 and Secured by Design cantilever sliding single leaf gate.

CLD SlideMaster SR2 gates have been specially developed to blend in seamlessly with a CLD Securus fenceline. With a double skin of 365 mesh panels, they are very difficult to break through or scale. Rigorously tested by the Loss Prevention Certification Board (LPCB) to guarantee a minimum delay of 3 minutes against attack, SlideMaster SR2 is also Secured by Design accredited, making it a police preferred specification for security. This system is ideally used in the following applications: Data Centres, MoD, Utilities, Government sites

Features:

Specialist high-security system to withhold minimum 3 minutes delay
Recycled materials
Automatic operation
Clear drive-through widths up to 8m
Mesh options to match fenceline

Specification

Standard: LPS 1175 SR2 Issue 7, BS1722-14: 2017
Secured by Design - Police Preferred Specification
Product Reference: CLD SlideMaster SR2 Cantilever Auto Gates
Description: Open mesh steel high security gate system with mesh infill
Configuration: Single leaf sliding to left or right
Infill Panels: 2 panels of CLD Securus
Heights: 2480mm
Select as required
Nominal heights: 2.4m
Widths: 1000mm to 8000mm
Select as required
Gate Construction: Gate consists of steel main upright tower to house motor and all safety equipment. Main gate frame supported on custom made aluminium cantilever beam. Gate frame constructed from 75x75mm aluminium box with mesh infill as above. 230v single phase power required to power the 100% duty cycle motor with a gate opening speed of 4 seconds per metre.
Fixing: Main control tower, park post and support rollers to be rawl-bolted to cast concrete footings all as per manufacturers drawings. Setting out not to commence until site specific drawings have been issued by manufacturer.
Locking: Auto
Finish: Polyester powder-coated to minimum 80 microns.
Any RAL colour
Foundations: Concrete slab foundation to suit gate size. Please contact CLD Physical Security Systems.
Other requirements: Please allow for 60mm safety cell ducting between gate tower and park post, and main power feed to tower, as per drawing
Warranty: Minimum of 15 years against manufacturing defects.
Notes: All dimensions are nominal, for further information please contact CLD Fencing Systems.
Information is correct at time of production. As part of our policy of continuous improvement, we reserve the right to alter product specification without notice.
To be read in conjunction with Preliminaries/General conditions

Technical specification

Unique ref.Slidemaster-SR2-Single-Carbon-steel-gate
Product familyLandscaping
Product groupGates
TypeObject (single object)
Date of publishing2022-05-05
Edition number1

Links

Product urlhttps://www.nationalbimlibrary.com/en-gb/cldfencingsystems/slidemaster-sr2-single-carbon-steel-gate/?lo=en-GB

Material mainSteel
Material secondaryAluminium

Classification

BIMobject CategoryLandscaping - Gates
IFC classificationObject
Uniclass 2015 CodePr_30_59_59_79
Uniclass 2015 DescriptionSliding vehicular barriers
