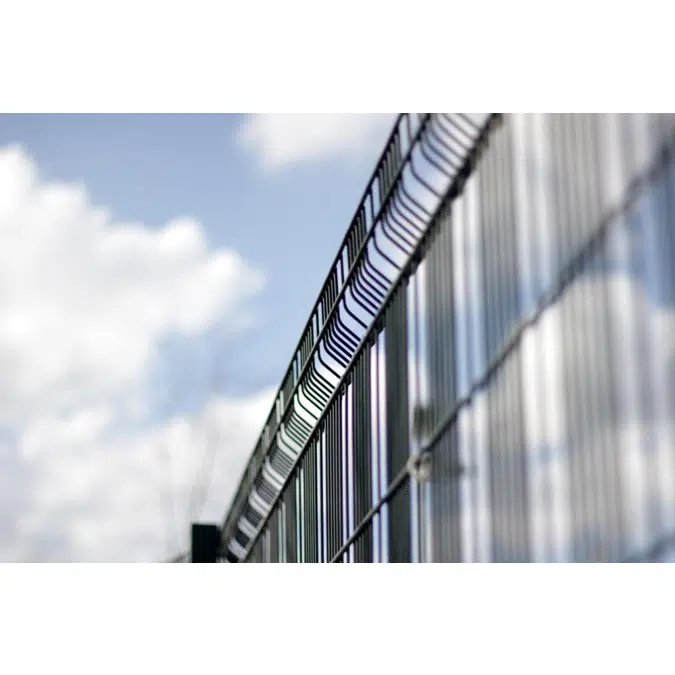

Multiplus - Fencing system

Standard: BS1722-14: 2017, BS EN ISO 1461:2022, BS EN 13438:2013

Product Reference: CLD MultiPlus Profiled Variable Rigid Mesh Panel System

Panel type: Variable aperture mesh panel system with 3 profiles. Galvanised and powder coated to minimum 60 microns dft.

Panel width: 2940mm up to 2330mm high

2800mm at 3030mm high

Wire diameter: 4mm & 5mm

Mesh size: 200 x 45mm and 200 x 25mm

Available heights

Select as required: 1730mm, 1930mm, 2330mm (all 2929 wide) and 3000mm (2800mm wide)

Nominal heights: 1.8m to 3.0m

Finish: Polyester powder-coated to 60-80 microns or 160-200 microns with marine grade and metallics. Any RAL colour available

Top edge projection: nil

Panel installation: Bottom of panel approx 40mm above ground 

Security topping n/a

options:

Posts: SHS, galvanised after manufacture and polyester powder-coated to match fencing.

Post dimensions: 60mm x 60mm up to 2.4m high , 80mm x 40mm for 3m high

Maximum post

Centres: 2940mm up to 2330mm high and 2820 for 3030mm high

Fixings: Clips with safety screws

Foundations: Set posts in holes minimum 300mm diameter x 800mm deep.

Note: Contractor/client is responsible for the foundation size suitable for the ground conditions and fence height.

Warranty: Minimum of 15 years against manufacturing defects.

Notes: All dimensions are nominal, for further information please contact CLD Fencing Systems.

Information is correct at time of production. As part of our policy of continuous improvement, we reserve the right to alter product specification without notice.

To be read in conjunction with Preliminaries/General conditions
