Oberon™ In-Plane™ Recessed Mounts 1019-RM

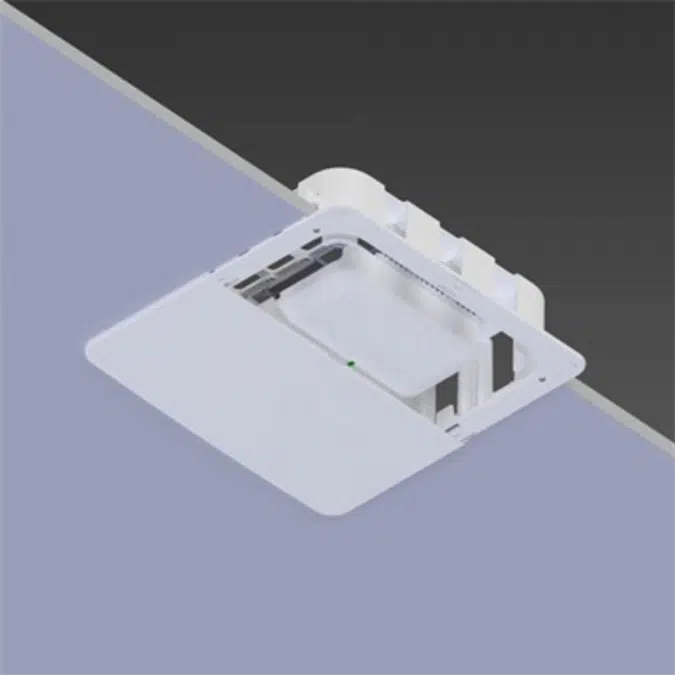

Oberon™ In-Plane™ Recessed Mounts 1019-RM conceal Wi-Fi and Small Cell APs, Wi-Fi routers, and associated cabling in residence halls, hotels, multiple dwelling units, retail locations and other indoor venues where aesthetics is important. Recess AP into the wall and conceal with the low profile, paintable, snap-on cover. This rugged UL 94-5VB ABS plastic enclosure is virtually transparent to wireless signals so there is minimal impact on wireless coverage. The Oberon™ In-Plane™ Recessed Mounts 1019-RM features slots for TIA 569-B compliant furniture faceplate RJ-45 modular jacks, to facilitate cable termination and management.

Specification

- Designed to conceal and secure PoE APs with integrated or non-detachable antennas. Also designed as a recessed Horizontal Connection Point enclosure for low voltage network cabling
- Performance: Ventilated, paintable, impact resistant plastic enclosure is virtually transparent to wireless signals
- Snap-on cover with concealed attachment points can optionally be screwed on for added security
- Universal T-bar mounting plate for most vendor’s APs, mounting features for Cisco APs
- Slots for TIA 569-B compliant furniture faceplate RJ-45 modular jacks
- Cable management features
- Swivel fasteners secure enclosure into pre-existing walls and ceilings 0.75 in. thick or less
- Construction: UL 94-5VB Flame retardant PC/ABS plastic. All PC/ABS components are white. 18 gauge galvanized steel AP mounting plate
- Size: Cage (backbox) is 13.5 x 13.5 x 3.7 in. (343 x 343 x 94 mm). Cover is 15.7 x 15.7 in. (400 x 400 mm)
- Maximum useable internal dimensions: 12.75 x 12.75 in. (323.9 x 323.9 mm)
Includes:
- (1) Recess box and bezel
- (1) AP Mounting Plate
- (1) Tamper Resistant Snap-on Cover
- (1) Spare Swivel Fasteners
- (6) Removable Cable Management Pegs
- (4) #6 – 19B x 1/4 in. Screws
- (4) #8 – 18A x 1/4 in. Screws
- (4) #4 – 24A x 1-1/2 in. Screws
- Installation instructions
For use with the following Wi-Fi/Small Cell Access Points: Aerohive
AP110/120, AP20, AP250, AP320, AP330, AP340/350, AP370
Arista
C-230
Aruba
AP-135, AP-205, AP-215, AP-225, AP-228, AP-303, AP-305, AP-315, AP-325, AP-335, AP-345, AP-515, AP-535, AP-555, AP-615, AP-635, AP-655
Cisco
1600i/1700i/2600i/2700i/3500i/3600i/3700i Series, 1810W Series, 1815W, 1830i/1850i Series, 2800e/3800e Series with DART Connector, 2800i/3800i Series, 4800 Series, 9115AXI, 9117AX, 9120AXI, 9136AXI, CW9166, CW9164, CW9162
Corning Spidercloud
SCRN-320/SCRN-220
Extreme Networks
AP305C, AP3705i, AP3710i, AP3715i, AP3765i, AP3801i, AP3805i, AP3825i, AP3935i, AP3965i, AP4000, AP410C, AP410e, AP410i, AP5010, AP505i / AP510i, AP510C, AP650
Meraki
MR32/34/42, MR33, MR44/45/46, MR52/53, MR55/56, MR57
Mist
AP34, AP41, AP45, BT11
Ruckus
7300 Series and 7025, R310, R320, R510, R550, R610, R650, R710, R720, R850
Ubiquiti
UniFi UAP-AC-HD, UniFi UAP-XG

Technical specification

Unique ref.oberon-1019-rm
Product familyCellular Wireless Solutions
Product groupOberon Wireless Mounts and Enclosures
TypeObject (single object)
Date of publishing2020-06-16
Edition number1
Height (inches)15.7
Width (inches)15.7
Depth (inches)3.75

Links

Material mainPC/ABS
Material secondaryGalvanized steel
Designed inUnited States
Manufactured inChina
Weight Net (Lbs)3.5

Classification

BIMobject CategoryElectronics - Networking
UNSPSC nameData Voice or Multimedia Network Equipment or Platforms and Accessories
UNSPSC code4322
Uniclass 2015 CodePr_65_70_15
Uniclass 2015 DescriptionCommunications cables and accessories
CSI MasterFormat 2014 Code27 21 33
CSI MasterFormat 2014 TitleData Communications Wireless Access Points
OmniClass Number23-37 13 15 29
OmniClass TitleLocal Area Network Wireless Devices
CSI UniFormat II CodeD5030
CSI UniFormat II TitleCommunications & Security
