Oberon™ In-Plane™ Recessed Mounts 1018-00

Design: Non-metallic wireless access point flush-mount enclosure. Designed to conceal and secure APs with integrated or non-detachable antennas

Features & Benefits

• Recess and conceal Wi-Fi APs into hard lid ceiling or wall

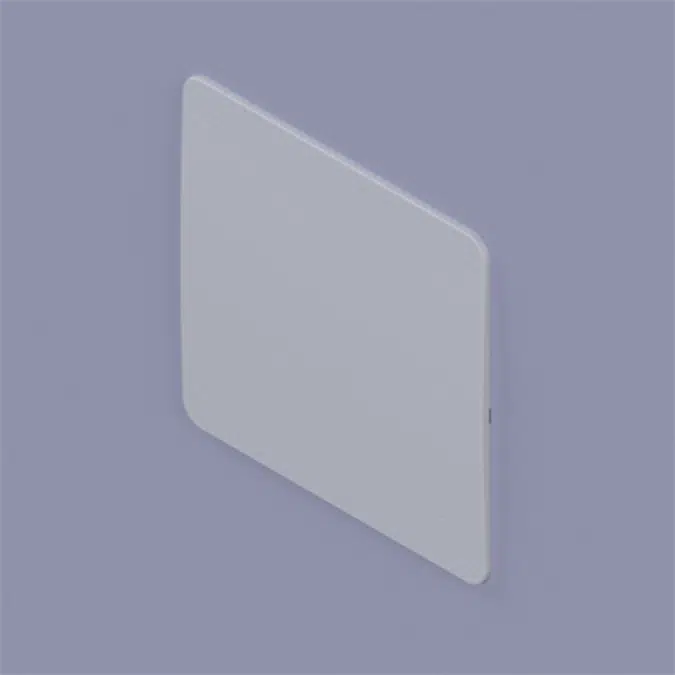

• The paintable snap-on cover is almost flush with wall
• Easily fastens to drywall using swivel fasteners
• Plastic construction minimizes impact on wireless performance

Technical Specifications

• Design: Non-metallic wireless AP flush-mount enclosure. Designed to conceal and secure APs with integrated or non-detachable antennas. UL 2416 is listed for recess installation in walls
• Performance: Paintable, impact-resistant plastic enclosure is virtually transparent to wireless signals. UL listed for recess installation in walls
• Snap-on cover with concealed attachment points can optionally be screwed on for added security
• Swivel fasteners mount the box into the wall opening with minimal hardware
• Includes UL Listed Conduit Connector which accommodates up to 2 Cat 6A cables, permits code-compliant recess wall installation
• Universal mounting T-bar for most vendor’s APs, mounting features for Cisco and Aruba APs
• Construction: Flame retardant PC/ABS plastic. All PC/ABS components are white. 18 gauge galvanized steel T-bar
• Size: 13 x 13 x 4 in.
• Assembled in the USA

Includes:

• (1) Base Enclosure
• (1) Removable bottom panel
• (1) Cover
• (1) T-Bar Mount
• (4) Press Pads
• (10) #6-19 x 3/8 in. Pan Head Thread-Forming Screws for Plastic
• (4) #4-24 x 1-1/2 in. Pan Head Screws for Sheet Metal
• (1) Self-Centering 1 in. Trade Size Hole Plug, UL Listed
• (1) 1 in. Trade Size Conduit Connector

For use with the following Wi-Fi/Small Cell Access Points: Aerohive
AP110-120, AP20, AP250, AP320M, AP330, AP340-350, AP370
Arista
C-230
Aruba
AP-135, AP-205, AP-225, AP-228, AP-303, AP-305, AP-315, AP-325, AP-335, AP-345, AP-505, AP-515, AP-535, AP-615, AP635
Cisco
1600i, 1700i,2600i, 3500i, 3600i, 3700i Series, 1810 Series, 1815W, 1830i-1850i Series, 2800e-3800e Series with DART Connector, 2800i - 3800i Series, 3700i Series with Hyperlocation antenna, 4800 antenna, 4800 Series, 9155AXI, 9117AX, 9120AXI, 9130AXI
Corning Spidercloud
SCRN-320 - SCRN-220
Extreme Networks
AP305C, AP305i, AP3710i, AP3715i, AP3765i, AP3801i, AP3765i, AP3801i, AP3805i, AP3825i, AP3835i, AP3965i, AP410e, AP410i, AP505i-AP510i, AP510C, AP650
Meraki
MRE32,34,42, MR52-53
Mist
AP21, AP33, AP34, AP41,AP45, BT11
Ruckus
7300 Series and 7025, R310, R320, R510, R550, R610, R850
Ubiquiti
UniFi UAP-AC-HD, UniFi UAP-XG

• Performance: Ventilated, paintable, impact-resistant, and flame-retardant PC/ABS plastic enclosure is virtually transparent to wireless signals. UL listed for recess installation in walls.
• Snap-on cover with concealed attachment points can optionally be screwed on for added security
• Swivel fasteners mount box to wall with minimal hardware.
• Firestop grommet accommodates up to 2 Cat 6A cables, permits code compliant recess wall installation
• Universal mounting T-bar for most vendor’s access points, mounting features for Cisco and Aruba APs
• Construction: Flame retardant PC/ABS plastic. All PC/ABS components are white. 18 gauge galvanized steel T-bar
