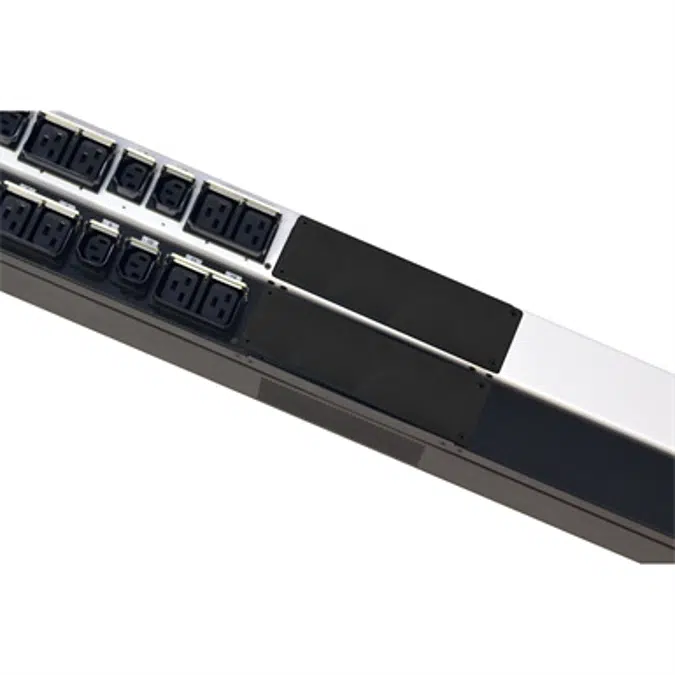

Basic eConnect® PDU

Description: Single-input, vertical rack-mount PDUs

Use: For indoors or within enclosures, in environmentally controlled areas, may not be used outdoors or in harsh environments

Refer to Operating Conditions listed below

Power Input:

  • Alternating current, 50/60 Hz, 10’ (3m) input power cord

  • Voltage, maximum current, and inlet/plug type varies per model (see ordering table)

Power Capacity: Specific to PDU, limited by circuit breakers or power input (see ordering table)

Power Output: NEMA 5-20R, Locking IEC C13 and/or IEC C19 Outlets, specific to PDU with up to 54 outlets (see order table)

Circuit Protection:

  • UL 489 listed, single- or two-pole, 100%-rated hydraulic-magnetic breakers available on single- and three-phase models  with 30A and above input

  • 10kAIC breakers on 220-240/380-415 VAC models; 5kAIC for all other models

  • Low-profile design prevents accidental discharge

Mounting: • 2 preinstalled toolless mounting buttons; adjustable positions

  • Top or bottom power cord entry orientation

Grounding/Bonding:

  • Bonded power inlet/plug and external bond connection with a threaded M5 attachment point

  • Includes a bonding kit for CPI cabinets

Color Options: • Black or Glacier White

  • Redundancy Pack includes (1) Black PDU and (1) Glacier White PDU

Operating Conditions:

  • Temperature: 32°F – 149°F (0°C – 65°C) at Input Power Rating (kW)

  • Relative Humidity: 5% – 95%, non-condensing

  • Elevation: 0 – 10,000 ft (0 – 3,000 m)

Storage/Non-operating

Conditions:

Temperature: -13°F – 149°F (-25°C – 65°C)

  • Relative Humidity: 5% – 95%, noncondensing

  • Elevation: 0 – 50,000 ft (0 – 15,000 m)

Shipping Weight: 27 lb (12 kg) single unit; 54 lb (24 kg) Redundancy Pack

Certifications: UL/cUL/IEC62368, CE (EU), FCC Part 15, Class A, EN 55022, RoHS Compliant

Warranty: 3 years standard with advanced replacement; 2 additional years optional
