B-Vent Support Bracket

Centrotherm Eco Systems

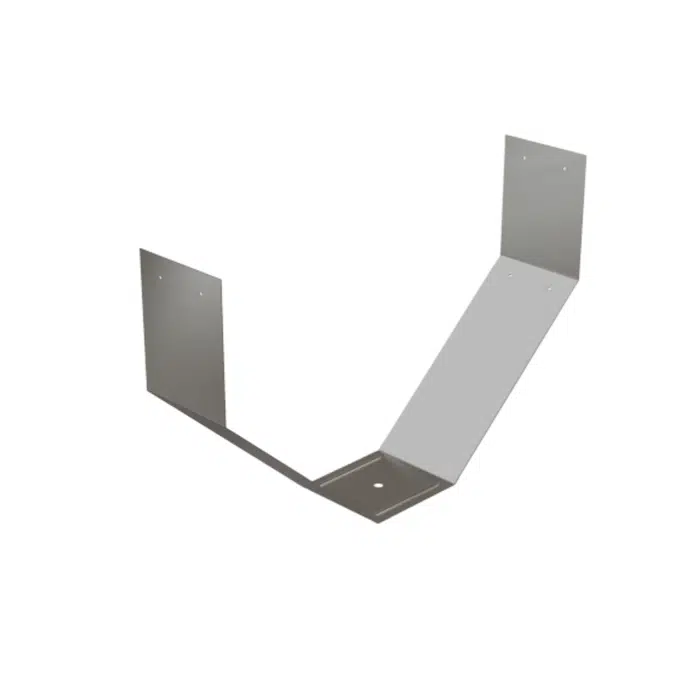

B-Vent Support Bracket

Providing load-bearing support when mounted between floors joists, InnoFlue B-Vent Support Bracket easily installs and integrates with InnoFlue Base Supports. Tricky vertical runs are handled with simplicity while providing a solution to a common exhaust system issue. Mount InnoFlue Bracket to support InnoFlue Flex and Single Wall.

Provides vertical support to vent systems.
Evaluated to UL1738 and ULCS636 by ICC.
Installs quickly & easily without glues, primers, or solvents.
Seamlessly integrates with InnoFlue Flex and Single Wall.

Specification

SpecificationsGeneralProduct NameB-Vent Support BracketTrade nameInnoFlueGTIN0815010018071Part number250410003460TechnicalColorSilverMaterialSteelDimensionsLength gross470 mm / 18.5 inchHeight102 mm / 4 inchWidth293 mm / 11.5 inchNet weight0.607 kg / 1.3 lbsLogisticalIntrastat7326908588Base unit packagingUnpackedPackaging / Trade length470 mm / 18.5 inchPackaging / Trade height102 mm / 4 inchNumber per packaging1Gross weight0.607 kg / 1.3 lbsPackaging / Trade width293 mm / 11.5 inchCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ESBack to overview

Technical specification

Unique ref.b-ventsupportbracket
Product familyBase Supports
Product groupFlex
TypeObject (single object)
Date of publishing2025-07-10
Edition number1

Links

Product urlhttps://www.centrotherm.us.com/products/innoflue-polypropylene-vent-systems/flex/base-supports/b-vent-support-bracket/

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryHVAC - Ductwork
IFC classificationDuct Fitting
ETIM CodeEG015540
ETIM NameFittings, flanges and connectors
Uniclass 2015 CodePr_65_65_25
Uniclass 2015 DescriptionDuctwork and fittings
CSI MasterFormat 2014 Code23 31 13.19
CSI MasterFormat 2014 TitleMetal Duct Fittings
OmniClass Number23-33 49 00
OmniClass TitleHVAC Ductwork

Region availability

North America
Canada
United States
