Air Excellent distribution box DB212V125-200VE 12 connections

Centrotherm Eco Systems

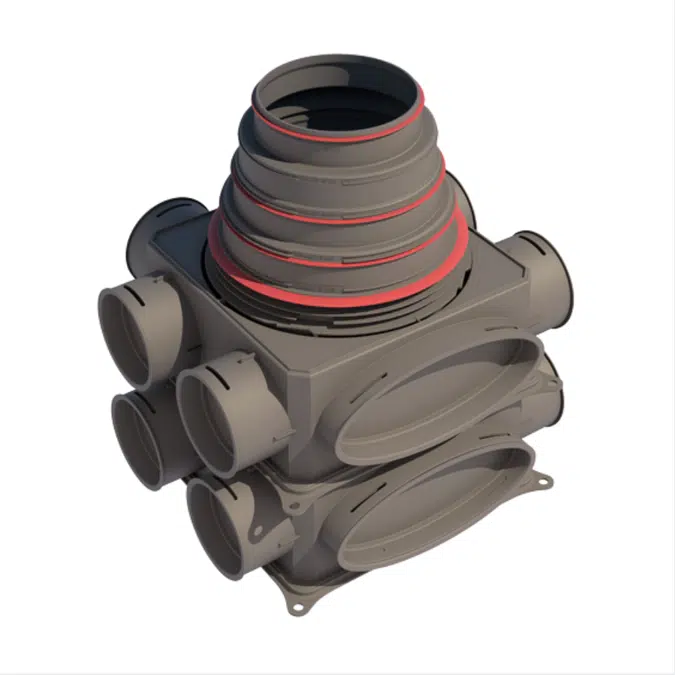

Air Excellent distribution box DB212V125-200VE 12 connections

The Air Excellent vertical DB212 is designed to radially distribute air from a ventilation unit, minimizing system pressure drop, fan energy use, and sound levels. It is compatible with Aerfoam insulated ducts and features 12 Air Excellent duct connections. With DBOX adaptors, it can connect to any duct diameter within the Air Excellent range. The compact box is ideal for small spaces, it can be installed on ceilings, walls, or floors.

Includes stepped adaptor, 12 internal air restrictor rings, and 6 covers for unused connections
Ideal for optimizing space in small areas
Made of durable, rust-free, lightweight plastic (PP) for easy handling and installation
Mechanical connections to minimize pressure loss, fan energy consumption, and sound levels

Specification

Specifications
- Number of connections: 12
- Main connection diameters: 125 mm / 200 mm
- Orientation: Vertical configuration
- Material: Durable polymer distribution box
- Application: Air distribution manifold for mechanical ventilation systems
- Compatible duct system: Air Excellent AE34C

Technical specification

Unique ref.air-excellent-distribution-box-db212v125-200ve-12-connections
Product familyAir Ventilation System
Product groupAir Excellent Ventilation Ductwork
TypeObject (single object)
Date of publishing2026-03-17
Edition number1

Links

Related

Designed inNetherlands
Manufactured inUnited States

Classification

BIMobject CategoryHVAC - Ductwork
ETIM CodeEC000059
ETIM NameInstallation duct
Uniclass 2015 CodePr_20_85_12
Uniclass 2015 DescriptionBunds and ducts
CSI MasterFormat 2014 Code23 31 00
CSI MasterFormat 2014 TitleHVAC Ducts and Casings
OmniClass Number23-33 49 00
OmniClass TitleHVAC Ductwork

Region availability

North America
Canada
United States
