Air Excellent AE34C Bend 90° Kit

Centrotherm Eco Systems

Air Excellent AE34C Bend 90° Kit

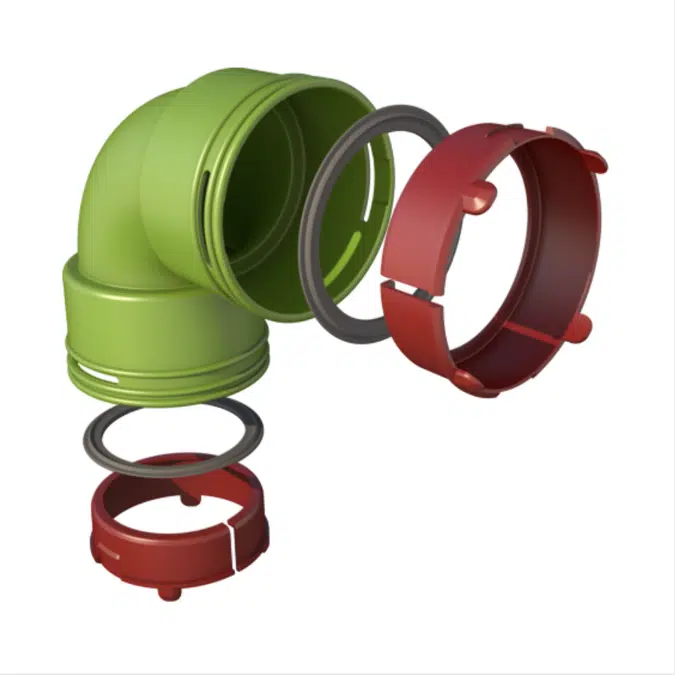

An AE34C (DN75/63mm) duct accessory. Includes 2 AE34C seal and click rings to make airtight mechanical connections to the ducts (airtightness Class ATC1 up to +/- 1000 Pa).

Low system pressure loss due to radial design
Airtightness Class ATC1 up to +/- 1000 Pa, which minimizes fan energy use and sound production
Modular manifolds, which can be used with all duct types
Semi-rigid ducts on a roll and airtight mechanical connections, which are extremely easy to install
TÜV SÜD and ISEGA tested and certified, REACH compliant

Specification

- Bend angle: 90°
- Compatible duct system: Air Excellent AE34C
- Material: Durable polymer ventilation component
- Application: Directional change within semi-rigid ventilation duct systems
- Installation: Push-fit connection with AE34C ducts
- Suitable for: Residential and commercial mechanical ventilation systems

Technical specification

Unique ref.air-excellent-ae34c-bend-90-kit
Product familyAir Ventilation System
Product groupAir Excellent Ventilation Ductwork
TypeObject (single object)
Date of publishing2026-03-17
Edition number1

Links

Product urlhttps://www.centrotherm.ca/products/air-ventilation-system/air-excellent-ventilation-ductwork/bends-b01f16b4745f5c55b31f1d0221708609/air-excellent-ae34c-bend-90%C2%B0-kit/
Installation instructionshttps://cdn-blob.centrotherm.ca/syncforce/2e8ef1be-a624-4e35-800a-c9b9f814870e/F0007993_0001.pdf
Product certificationhttps://cdn-blob.centrotherm.ca/syncforce/e6257ccd-571e-40a9-8ff3-ae2af1c88876/F0010815_0002.pdf
Technical descriptionhttps://cdn-blob.centrotherm.ca/syncforce/78990b33-f83e-4cc7-ac3a-d2bd09178425/F0009183_0012.pdf

Related

Designed inNetherlands
Manufactured inUnited States

Classification

BIMobject CategoryHVAC - Ductwork
ETIM CodeEC000059
ETIM NameInstallation duct
Uniclass 2015 CodePr_20_85_12
Uniclass 2015 DescriptionBunds and ducts
CSI MasterFormat 2014 Code23 31 00
CSI MasterFormat 2014 TitleHVAC Ducts and Casings
OmniClass Number23-33 49 00
OmniClass TitleHVAC Ductwork

Region availability

North America
Canada
United States
