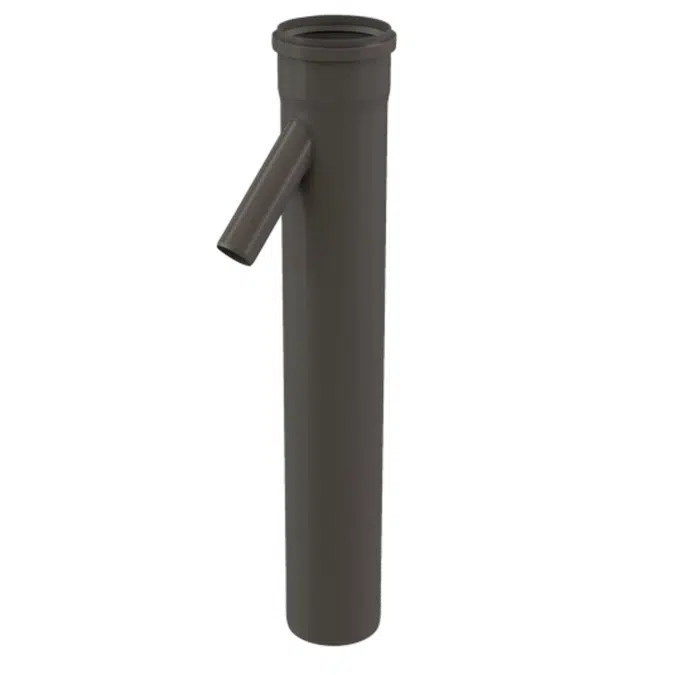

6" x 36" Branch Tee w/2" Feeder

Precisely configure a Cascade of Common Vent system with InnoFlue Branch Tees. Tested and approved by trusted OEM manufacturers, InnoFlue Branch tees effortlessly tether multiple appliances together into a singular manifold system. Available in a variety of diameter combinations, InnoFlue Branch Tees provide a versatile option designed for optimal large diameter venting. Straightforward installations is quick and easy without glues, primers, or solvents.

Approved for Cascade/Common Vent use by trusted appliance manufacturers.
Evaluated to UL1738 and ULCS636 by ICC.
Rated to 230°F (110°C).
Installs quickly & easily without glues, primers, or solvents.
Available in a variety of diameter combinations.

Specification

SpecificationsGeneralProduct Name6" x 36" Branch Tee w/2" FeederTrade nameInnoFlueGTIN0815010019801Part number250409401780TechnicalColorGrayMaterialPPsSystem typeCascadeMaterial flue pipePPsDimensionsLength gross1014.4 mm / 39.9 inchHeight183 mm / 7.2 inchDiameter flue pipe160 mm / 6 inchWidth318 mm / 12.5 inchNet weight1.56 kg / 3.4 lbsLogisticalIntrastat3917220000Base unit packagingUnpackedPackaging / Trade length1014.4 mm / 39.9 inchPackaging / Trade height183 mm / 7.2 inchNumber per packaging1Gross weight1.56 kg / 3.4 lbsPackaging / Trade width318 mm / 12.5 inchPerformanceTemperature resistance (max.)120 °CCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ES

Technical specification
