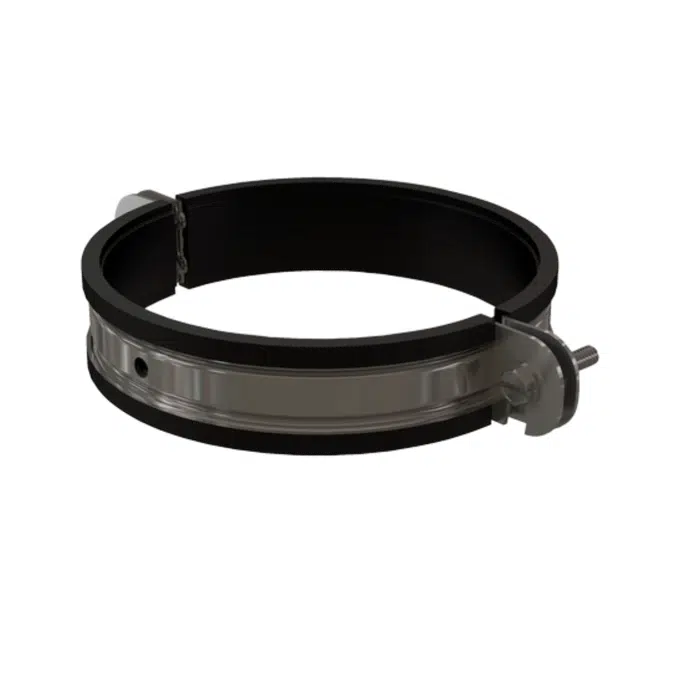

4" Support Clamp with 3/8" Nut

InnoFlue Support Clamps provide a sleek, user-friendly option to support the exhaust system. The engineered metal clamp is designed to withstand & support the vent system while installing quickly and easily. The metal interior is coated with a rubber exterior to prevent any scratching of the venting components. InnoFlue Support Clamps can be used as vertical or horizontal support. Space 78" in vertical and 39" in horizontal installations. Integrated installation system uses 3/8th" threaded rod.

Accepts standard 3/8th" threaded rod.
Metal interior and rubber exterior support and protect pipe.
Evaluated to UL1738 and ULCS636 by ICC.
Lightweight and durable.

Specification

SpecificationsGeneralProduct Name4" Support Clamp with 3/8" NutTrade nameInnoFlueGTIN0815010016152Part number250410203530TechnicalColorSilverMaterialSteelDimensionsLength gross160 mm / 6.3 inchHeight27 mm / 1.1 inchDiameter flue pipe110 mm / 4 inchWidth130 mm / 5.1 inchNet weight0.14 kg / 0.3 lbsLogisticalIntrastat7326908630Base unit packagingUnpackedPackaging / Trade length160 mm / 6.3 inchPackaging / Trade height27 mm / 1.1 inchNumber per packaging1Gross weight0.14 kg / 0.3 lbsPackaging / Trade width130 mm / 5.1 inchCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ES

Technical specification
