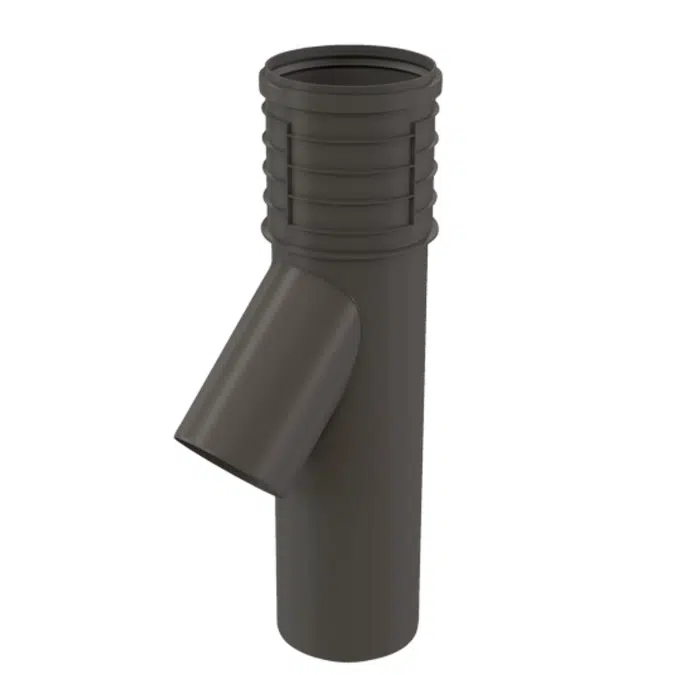

12" x 36" Branch Tee w/10" Feeder

Precisely configure a Cascade of Common Vent system with InnoFlue Branch Tees. Tested and approved by trusted OEM manufacturers, InnoFlue Branch tees effortlessly tether multiple appliances together into a singular manifold system. Available in a variety of diameter combinations, InnoFlue Branch Tees provide a versatile option designed for optimal large diameter venting. Straightforward installations is quick and easy without glues, primers, or solvents.

Approved for Cascade/Common Vent use by trusted appliance manufacturers.
Evaluated to UL1738 and ULCS636 by ICC.
Rated to 230°F (110°C).
Installs quickly & easily without glues, primers, or solvents.
Available in a variety of diameter combinations.

Specification

SpecificationsGeneralProduct Name12" x 36" Branch Tee w/10" FeederTrade nameInnoFlueGTIN0815010017753Part number250409701950TechnicalColorGrayMaterialPPsSystem typeCascadeMaterial flue pipePPsDimensionsLength gross1238.25 mm / 48.7 inchHeight603.25 mm / 23.7 inchDiameter flue pipe315 mm / 12 inchWidth353.06 mm / 13.9 inchNet weight7.65 kg / 16.9 lbsLogisticalIntrastat3917220000Base unit packagingUnpackedPackaging / Trade width353.06 mm / 13.9 inchNumber per packaging1Packaging / Trade length1238.25 mm / 48.7 inchPackaging / Trade height603.25 mm / 23.7 inchPerformanceTemperature resistance (max.)120 °CCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ES
