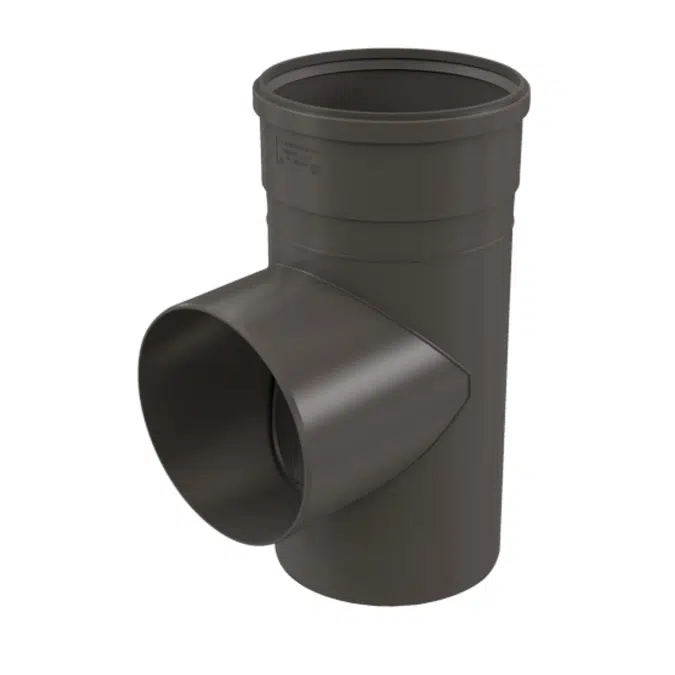

10" Tee

Centrotherm Eco Systems

10" Tee

Optimize exhaust system configuration with InnoFlue Tees. Engineered for push-fit installation, InnoFlue Tees install quickly without glues, primers, or solvents. Elevate the functionality and versatility of your exhaust system with a versatile product evaluated to UL1738 and ULCS636 by ICC.

Provides additional design and configuration versatility.
Evaluated to UL1738 and ULCS636 by ICC.
Installs quickly & easily without glues, primers, or solvents.
Lightweight and durable.
Rated to 230°F (110°C).

Specification

SpecificationsGeneralProduct Name10" TeeTrade nameInnoFlueGTIN0815010013229Part number250407603020TechnicalColorGrayMaterialPPsBird protectionSystem typeSingle wallMaterial flue pipePPsDimensionsLength gross530 mm / 20.9 inchHeight274 mm / 10.8 inchDiameter flue pipe250 mm / 10 inchWidth381 mm / 15 inchNet weight1.906 kg / 4.2 lbsLogisticalIntrastat3917400090Base unit packagingUnpackedPackaging / Trade length530 mm / 20.9 inchPackaging / Trade height274 mm / 10.8 inchNumber per packaging1Gross weight1.906 kg / 4.2 lbsPackaging / Trade width381 mm / 15 inchPerformanceTemperature resistance (max.)120 °CCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ES

Technical specification

Unique ref.10-tee
Product familyTees
Product groupSingle Wall - Large diameter
TypeObject (single object)
Date of publishing2025-07-10
Edition number1

Links

Product urlhttps://www.centrotherm.us.com/products/innoflue-polypropylene-vent-systems/single-wall-large-diameter/tees/10-tee/

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryHVAC - Ductwork
IFC classificationDuct Fitting
ETIM CodeEG015540
ETIM NameFittings, flanges and connectors
Uniclass 2015 CodePr_65_65_25
Uniclass 2015 DescriptionDuctwork and fittings
CSI MasterFormat 2014 Code23 31 13.19
CSI MasterFormat 2014 TitleMetal Duct Fittings
OmniClass Number23-33 49 00
OmniClass TitleHVAC Ductwork

Region availability

North America
Canada
United States
