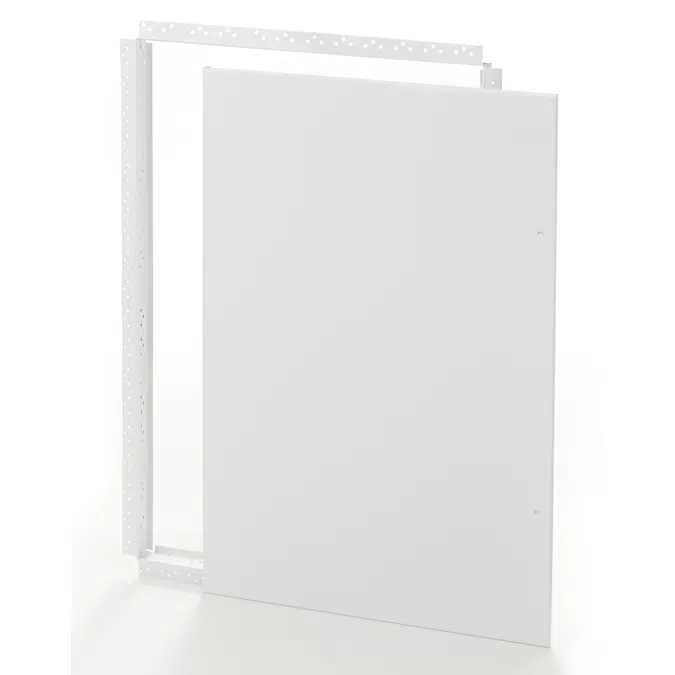

Flush Removable Access Door with Drywall Bead Flange

The AHR-GYP Removable Access Door with Drywall Bead Flange is a multipurpose access solution designed for medium to large openings where ease of installation, aesthetics, and service access are key priorities. Its removable panel allows one-person installation, making it a highly efficient option for commercial and institutional projects and HVAC application.

Contractors, architects, engineers, and professionals in the industry opt for our access panel model due to its removable, lightweight design, which simplifies handling and servicing while maintaining a clean, discreet appearance once installed.

Key Features & Benefits

• Removable panel for one-person installation
• Multipurpose solution for HVAC and general service access
• Clean, aesthetic appearance with discreet white finish (primer that blended with drywall)
• Up to 4 locking points for secure panel positioning
• Pin hinge system for reliable alignment and durability
• Flush, professional look suitable for visible applications

Product Applications

• HVAC access points
• Mechanical rooms
• Commercial and institutional buildings
• Wall and ceiling service openings

Technical Details

• Installation : Walls and ceilings
• Material : Made from 16-gauge cold-rolled steel.
• Locking Mechanism : Equipped with a screwdriver-operated cam latch (up to 4).
• Hinge : Includes a spring pin hinge. Hinge location: second dimension (height).
• Flange : Perforated 1 ⅛ gypsum flange, made from 22-gauge galvanized steel.
• Frame : 1½" deep frame made from cold-rolled steel.
• Rough Opening : Door dimensions + ¼" or + 6mm.
• Finish : High-quality white powder coat primer.
• Packaging : Individually packed, 1 door per box.
• Dimensions : From 24" × 48" up to 48" × 60"

All the dimensions and options that you want in 5 days! Choose from over 100 access panel designs and 30 add-on options for personalized solutions, all delivered within the shortest lead time in the industry. A wide range of standard access panels is also in stock and ready to ship the next day.

Download our catalog to explore available sizes, options, and configurations.

Cendrex is a premier manufacturer specializing in crafting custom and odd-sized doors with the industry's shortest lead time, offering rated and non-rated access panels since 1985.
