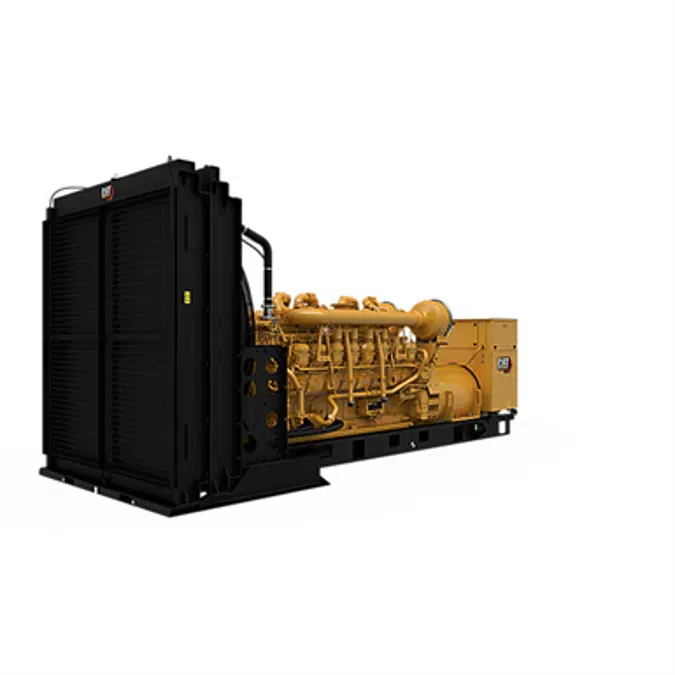

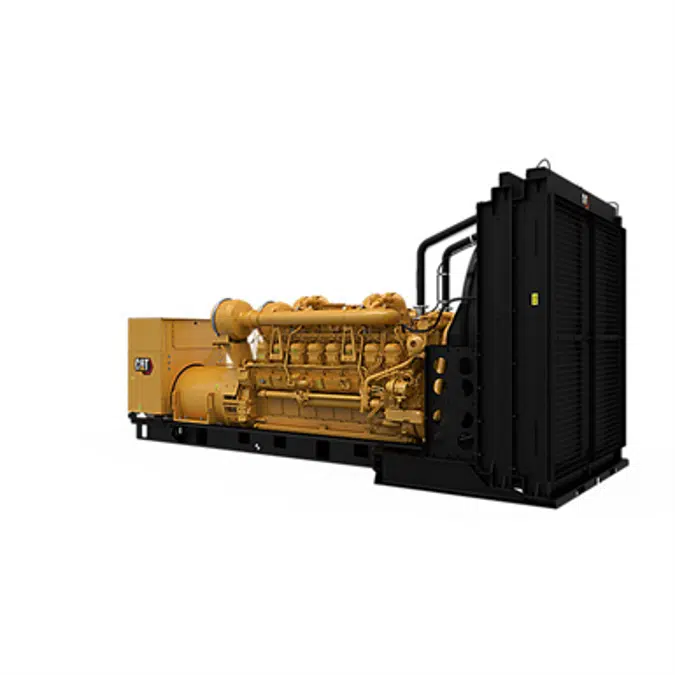

3516B (50 Hz) 2000-2500 kVA Diesel Generator Set

3516B (50 Hz) 2000-2500 kVA Diesel Generator Set

Caterpillar is the world's largest manufacturer of generator sets, offering the largest range of specifications available. If you need a diesel generator set with 6.8 to 5,720 ekW (6.8 to 7,150 kVA) of power potential, you'll have peace of mind knowing our diesel-fueled generator sets are built to world-class standards, for high efficiency, low fuel consumption and global emissions compliance. Cat^® Diesel Generator Sets come in a range of options to match your power needs - so selecting the right diesel generator set for your application, and installing it, is simple.

DIESEL GENERATORS - CONTINUOUS, PRIME OR STANDBY POWER
For continuous, prime or standby power service, Cat commercial and industrial diesel generator sets deliver reliable, clean, economical power – even in the most demanding conditions. Each Cat diesel generator set is designed, engineered and manufactured for optimal performance. All major components are tested individually; and once the generator set is assembled, the complete unit is tested at and above 100% of rated load for operation and safety.

A Cat brand generator set offers a huge advantage over all other brands: They all come with the expert service and comprehensive support of your nearby Cat^®dealer. It begins with prompt delivery and continues through the life of the diesel genset.

Specification

Generator Set Package
• Accepts 100% block load in one step and meets other NFPA 110 loading requirements
• Conforms to ISO 8528-5 G3 load acceptance requirements
• Reliability verified through torsional vibration, fuel consumption, oil consumption, transient performance, and endurance testing
Cat^® Diesel Engine
• 3516B, 69 Liter displacement, V-16, 4-Stroke Water-Cooled Diesel Engine
• Designed and optimized for low emissions and low fuel consumption
• Reliable performance proven in thousands of applications worldwide
Cat Alternator
• Superior motor starting capability minimizes need for oversizing generator
• Designed to match performance and output characteristics of Cat diesel engines
Cooling System
• Cooling systems available to operate in ambient temperatures up to 50°C (122°F)
• Tested to ensure proper generator set cooling
Cat Energy Control System (ECS)
• User-friendly interface and navigation
• Scalable system to meet a wide range of installation requirements
• Expansion modules and site specific programming for specific customer requirements
Warranty
• Coverage of the entire package
• 24 months/1000-hour warranty for standby and mission critical ratings
• 12 months/unlimited hour warranty for prime and continuous ratings
• Extended service protection is available to provide extended coverage options
Worldwide Product Support
• Cat dealers have over 1,800 dealer branch stores operating in 200 countries
• Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Technical specification

Unique ref.Diesel-Generator-3516B-50Hz-2500
Product familyDiesel Generator Sets
Product group50Hz
TypeObject (single object)
Date of publishing2018-05-07
Edition number1
Height (mm)2367
Width (mm)2286
Depth (mm)6377

Links

Product urlhttps://www.cat.com/en_US/products/new/power-systems/electric-power-generation/diesel-generator-sets/1000028973.html
Installation instructionshttps://www.cat.com/en_US/articles/electric-power/podcasts.html
Instruction videohttps://youtu.be/itJ0ZsBmtRw
Technical descriptionhttps://specsizer.cat.com

Designed inUnited States
Manufactured inUnited Kingdom
Weight Net (Kg)18290

Classification

BIMobject CategoryConstruction - Power Generation & Light
IFC classificationElectric Generator
ETIM CodeEC002823
ETIM NamePower generator
UNSPSC nameDiesel generators
UNSPSC code26111601
Uniclass 2015 CodePr_60_70_65_34
Uniclass 2015 DescriptionGenerator sets
CSI MasterFormat 2014 Code26 32 13.13
CSI MasterFormat 2014 TitleDiesel-Engine-Driven Generator Sets
OmniClass Number23-35 11 15 11
OmniClass TitleDiesel Generator Sets
CSI UniFormat II CodeD5010
CSI UniFormat II TitleElectrical Service and Distribution
