SEP4™ 4-in-1 Magnetic Hydraulic Separators (ANSI flange, 8-14") - NA Market

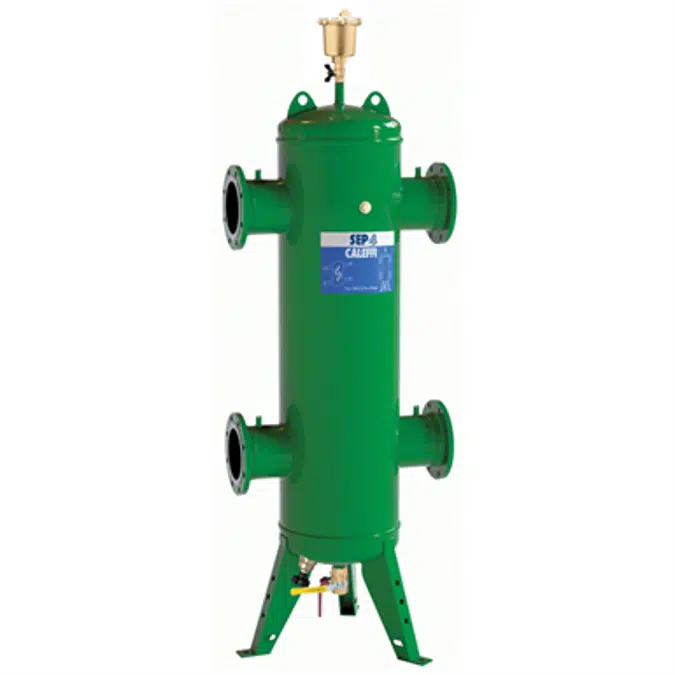

The Caleffi SEP4™ 4-in-1 combination separator incorporates four important functions for hydronic systems: hydraulic separation, air separation, dirt separation and ferrous impurity separation. The unique geometry and design of the separator causes the connected primary and secondary circuits to be hydraulically de-coupled to prevent pump conflict from occurring. An internal screen element facilitates the coalescing and capture of micro-bubbles to facilitate high performance automatic removal, while concurrently causing the capture of non-ferrous debris particles down to 5 micron size. A powerful magnetic field induced by rare-earth neodymium magnets facilitates the capture of ferrous impurities such as iron oxide down to microscopic size thus delivering 2½ times the ferrous impurity removal performance of standard air and dirt separators. The SEP4 saves on system installation and maintenance costs as four devices are combined into one. Additionally, all captured debris is blown down through the purge valve without requiring to take the system offline.

PLEASE download from "DOWNLOAD" panel on this page, the Revit Content Instruction Guide, to aid in understanding what is in the Revit family and how to select various available options.

Specification

Combination air, dirt, hydraulic and magnetic separator.
Stainless steel internal coalescing mesh.Three neodymium magnet assemblies.
Complete with:
→ Automatic air vent (code 501502A)
→ Air vent shut-off valve (code NA39589)
→ Drain valve (code NA59600)
ANSI 150 flange connections.
Thermometer pockets (NPT): ½" inlet/outlet flanges, ¾" front center
Max working pressure: 150 psi
Vessel temperature range: 32 - 270°F
Particle separation capacity: to 5 μm (0.2 mil)
ASME registered. CRN registered thru 12" (consult factory for 14").
NA prefix indicates ASME-U stamp tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors. Visit bim.caleffi.com to stay updated.
