QuickSetter™ Balancing Valve (flanged) - NA Market

QuickSetter™ Balancing Valve (flanged) - NA Market

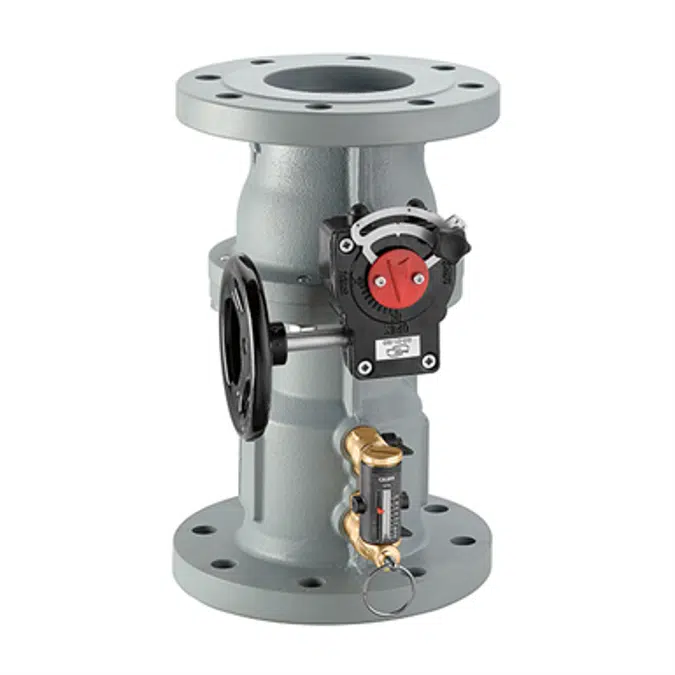

Static balancing valve with flow meter. Direct reading of flow rate. Cast iron body. Brass flow meter. Characterized rotating valve for smooth flow rate adjustment. Graduated scale flow meter with magnetic movement flow rate indicator. ANSI 125 flange connections. Max working pressure: 150 psi Temp range: 14° - 230°F Max percentage of glycol: 50% Visit bim.caleffi.com to stay updated.

Specification

The 132 series balancing valve accurately sets the flow rate of heating and cooling transfer fluid supplied to fan coils and terminal units or where flow balancing is required in solar thermal systems. Proper hydronic system balancing ensures that the system operates according to design specifications, providing satisfactory thermal comfort with low energy consumption. The flow meter is housed in a bypass circuit on the valve body and can be shut off during normal operation. The flow meter permits fast and easy circuit balancing without added differential pressure gauges and reference charts. The threaded version is furnished with a hot pre-formed insulation shell to optimize thermal performance for both hot and cold water systems.

Technical specification

Unique ref.132A-Flanged
Product familyHVAC
Product groupNorth America
TypeObject (single object)
Date of publishing2018-05-16
Edition number1

Links

Product urlhttps://www.caleffi.com/usa/en-us/catalogue/quicksettertm-balancing-valve-flanged-132060a
Installation instructionshttps://www.caleffi.com/sites/default/files/file/h0003350_na_03.pdf
Technical descriptionhttps://www.caleffi.com/sites/default/files/file/01149_17_na.pdf

Related

Material mainBrass
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryHVAC - Other
IFC classificationValve
ETIM CodeEC010014
ETIM NameConstant flow rate controller
UNSPSC nameValves
UNSPSC code401416
Uniclass 2015 CodeSs_60
Uniclass 2015 DescriptionHeating, cooling and refrigeration systems
CSI MasterFormat 2014 Code23 00 00
CSI MasterFormat 2014 TitleHeating, Ventilating, and Air Conditioning (HVAC)
OmniClass Number23-27 31 13
OmniClass TitleBalancing Valves
CSI UniFormat II CodeD30
CSI UniFormat II TitleHVAC

Region availability

North America
Canada
United States
