Roof Fan BRCF
BVN
Archived

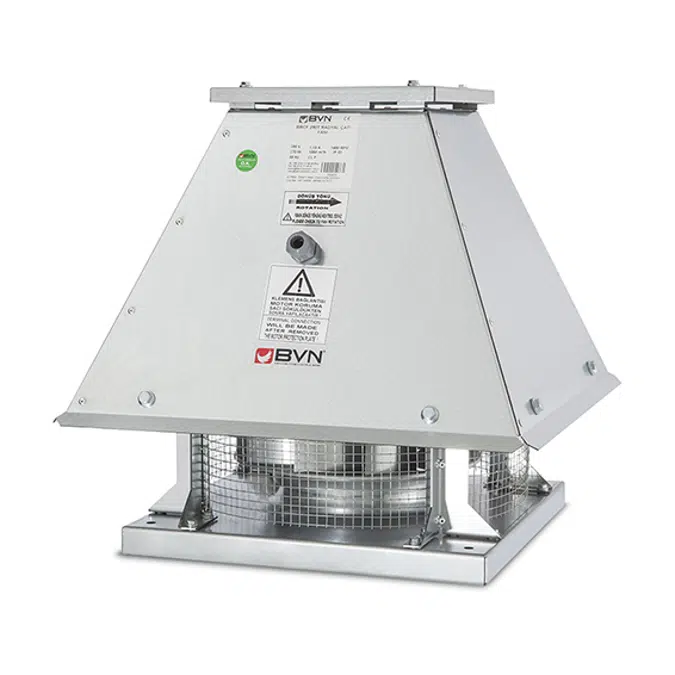

Roof Fan BRCF

4.0 out of 5 stars4.0(5 reviews)
The BVN roof fans are used for the ventilation of department stores, supermarkets, factories, swimming pools, kitchens, dining halls, warehouses, garages, farms, and stables. The fans are suitable for mounting on a flat or any shaped roof. The fans can be operated up to 120°C as the motor is out of the air stream.
Specification
  • Vertical outlet with IEC standard Motor Rain protection cover and square housing made of galvanized sheet metal. Base frame equipped with threaded bolts for tightening accessories on the suction side and a bended inlet cone, manufactured of galvanized sheet metal. Motor outside of the air stream weatherproof. Ø630-710-800 Impeller made of powder-coated sheet metal backward curved blades,Ø450-500-560 Impeller made of aluminum backward curved blades, and Ø 280-315-355-400 Impeller made of galvanized sheet metal backward curved blades. Compact and flexible design. IEC motor according to EN 60034 (IEC 60072). Min. Meets efficiency class IE2. Applicable for use with Variable Frequency Drive (VFD). Protection class IP55. 50/60Hz operation possible. Isolation class F. Motorized Impeller statically and dynamically balanced according to DIN ISO 21940-11 at least with quality level G6.3. Integrated terminal box and environmental resistant cable glands.
Technical specification
  • Unique ref.BRCF
  • Product familyRoof Fan
  • Product groupHorizontal outlet
  • TypeObject (single object)
  • Date of publishing2021-09-03
  • Edition number1
  • Height (mm)522
  • Width (mm)522
  • Depth (mm)495
Links
Related
  • Material mainSheet metal
  • Material secondaryGalvanized steel
  • Designed inTürkiye
  • Manufactured inTürkiye
  • Weight Net (Kg)35
Classification
  • BIMobject CategoryHVAC - Mechanical Ventilation
