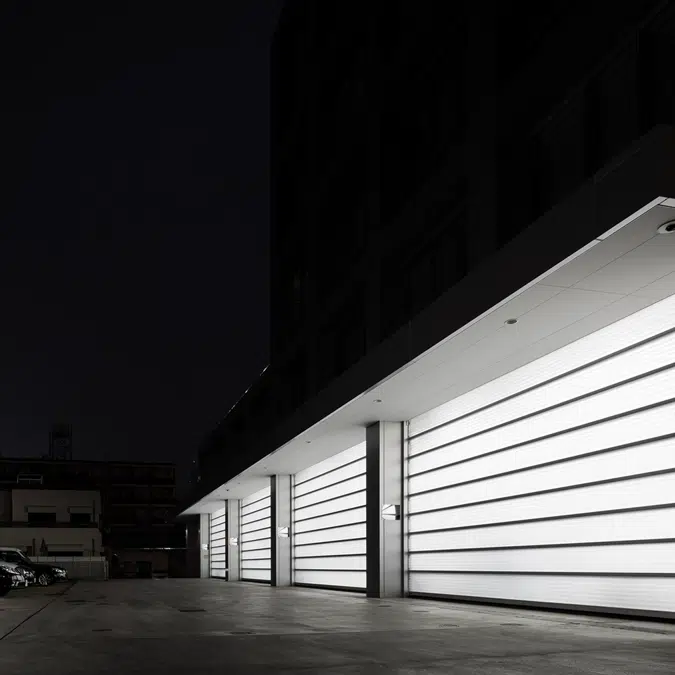

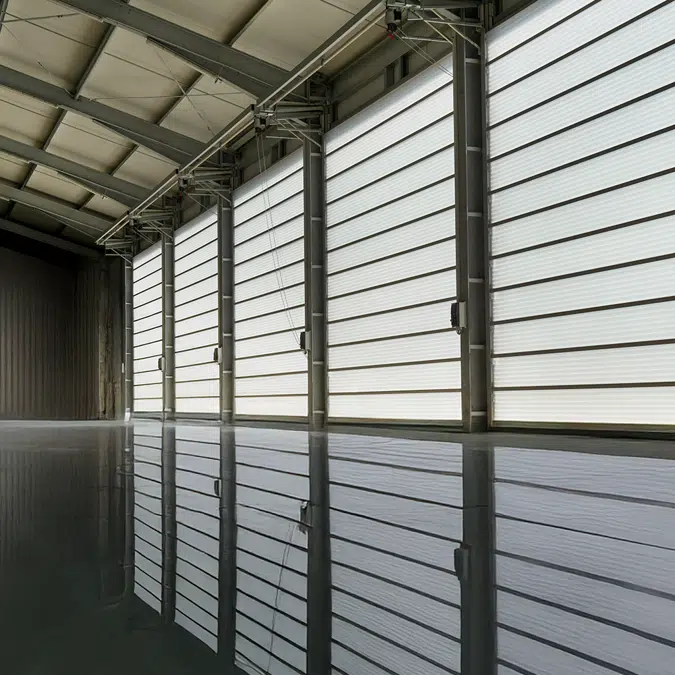

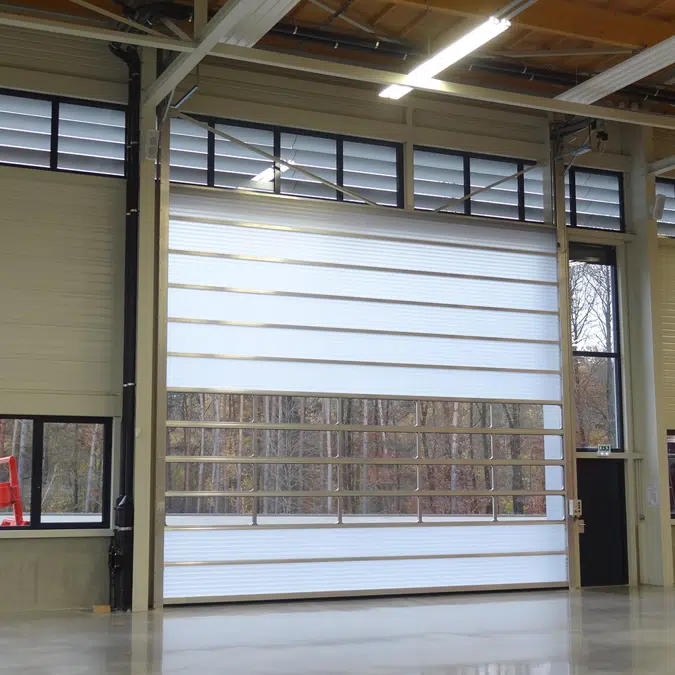

SPACELITE® Stacking Door HT60

One size larger and of course as individual as your company. Up to 7.5m wide, the optimal solution to separate your hall from unwanted external influences.

Specification

		HT60	HT60 XL
Door size	Width min./ max. (clear passage width)	1.000/ 7.500 mm	1.000/ 7.500 mm
	Height min./ max. (clear passage height)	1.000/ 13.000 mm	1.000/ 13.000 mm
	Headroom requirement standard min.	750 mm	1.250 mm
	Space requirement Total depth min./ max.	1.015/ 1.850 mm	1.015/ 1.850 mm
	Space requirement on the motor side / not on the motor side min.	200/ 200 mm	200/ 200 mm
	Height vision panel lower edge / upper edge in standard	500 mm	1.000 mm
Performance data	Designed for up to ... Opening cycles per year	30.000	30.000
	Continuous operation: Up to ... opening cycles per hour	10	10
	Opening speed max.	14 cm/s	14 cm/s
	Operating forces/ Safe opening according to EN 13241-1	complied	complied
	Water tightness according to EN 12425	Class 3	Class 3
	Resistance to wind load according to EN 12424 up to	Class 5	Class 5
	Resistance to airborne sound Rw according to EN ISO 717-1 up to approx.	23 dB	23 dB
	Thermal resistance Up according to EN 12428 up to	1,1 W/m²K	1,1 W/m²K
	Air permeability according to EN 12426 up to	Class 2	Class 2
	Burglary protection according to DIN/ TS 18194	RC2/RC3	RC2/RC3
	Fire behavior according to DIN 4102-1	B2	B2
	Fire behavior according to DIN EN 13501-1	E	E
	Power supply Standard	1L/N/PE 230V 50Hz \| 3L/N/PE 400V 50 Hz	1L/N/PE 230V 50Hz \| 3L/N/PE 400V 50 Hz
Safety devices	Integrated TÜV certified fall protection	complied	complied
	Mechanical overload protection	complied	complied
	OSE as safety edge device	complied	complied
	Anti-lift device	complied	complied
	Guide rail closed on three sides	complied	complied
	Light curtain (mounted in front) for contactless reversing	optional	optional
	Sensor solutions for opening and monitoring	optional	optional
	Optical or acoustic warning signals	optional	optional
Special solutions		optional	optional

Technical specification

Unique ref.spacelite-stacking-door-ht60
TypeObject (single object)
Date of publishing2026-03-20
Edition number1

Links

Product urlhttps://www.butzbach.com/en/products/stacking-doors-spacelite/spacelite-ht60/
Instruction videohttps://www.youtube.com/watch?v=sMPdpDkYL0U

Designed inGermany
Manufactured inGermany
