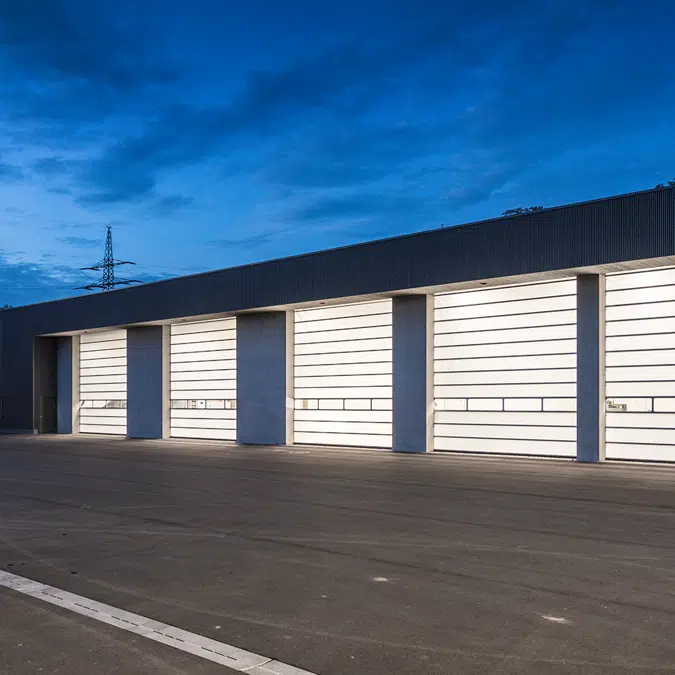

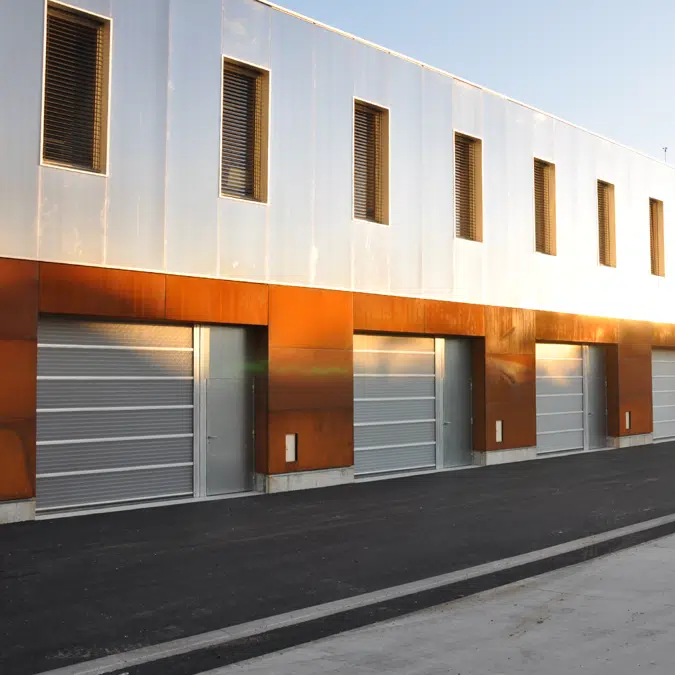

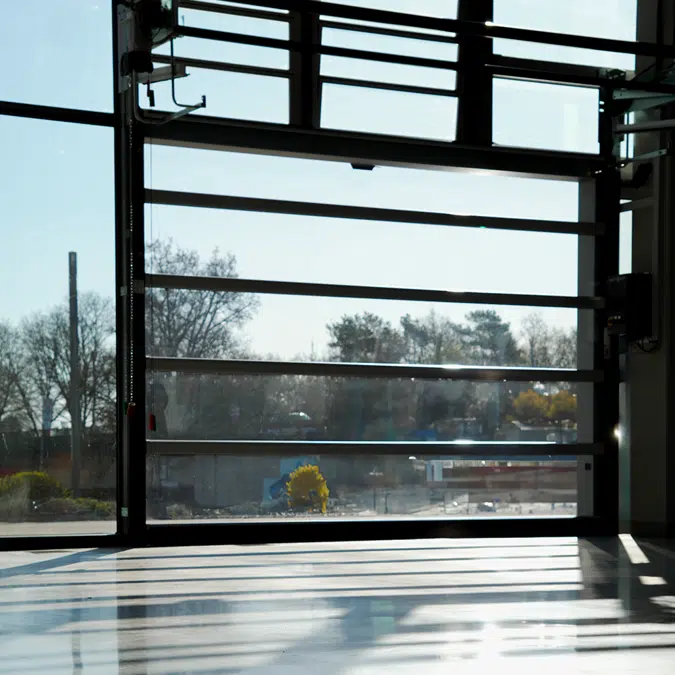

SPACELITE® Stacking Door HT40
SPACELITE® Stacking Door HT40
SPACELITE® Stacking Door HT40
SPACELITE® Stacking Door HT40
    Butzbach

    SPACELITE® Stacking Door HT40

    Every operation is unique, and so is your SPACELITE.

    The intelligent opening principle finds space in any installation situation with the compact console. Overhead cranes, pipelines, lamps or other elements can easily pass by the door area. This makes the HT40 probably the best sectional door.

    Specification
    • Door sizeWidth min./ max. (clear passage width)1.000/ 5.500 mm
      Height min./ max. (clear passage height)1.000/ 8.920 mm
      Headroom requirement standard min.700 mm
      Space requirement Total depth min./ max.620/ 1.540 mm
      Space requirement on the motor side / not on the motor side min.130/ 130 mm
      Height vision panel lower edge / upper edge in standard500 mm
      Performance dataDesigned for up to ... Opening cycles per year50.000
      Continuous operation: Up to ... opening cycles per hour30
      Opening speed max.40 cm/s
      Operating forces/ Safe opening according to EN 13241-1complied
      Water tightness according to EN 12425Class 2
      Resistance to wind load according to EN 12424 up toClass 5
      Resistance to airborne sound Rw according to EN ISO 717-1
      up to approx
      21 dB
      Thermal resistance Up according to EN 12428 up to0,65 W/m²K
      Air permeability according to EN 12426 up toClass 3
      Burglary protection according to DIN/ TS 18194RC2/ RC3
      Fire behavior according to DIN 4102-1B2
      Fire behavior according to DIN EN 13501-1E
      Power supply Standard1L/N/PE 230V 50Hz | 3L/N/PE 400V 50 Hz
      Safety devicesIntegrated TÜV certified fall arrestercomplied
      Mechanical overload protectioncomplied
      OSE as safety edge devicecomplied
      Anti-lift devicecomplied
      Guide rail closed on three sidescomplied
      Light curtain (mounted in front) for contactless reversingoptional
      Sensor solutions for opening and monitoringoptional
      Optical or acoustic warning signalsoptional
      Special solutionsoptional
    Technical specification
    • Unique ref.spacelite-stacking-door-ht40
    • TypeObject (single object)
    • Date of publishing2026-03-20
    • Edition number1
    Related
    • Designed inGermany
    • Manufactured inGermany
