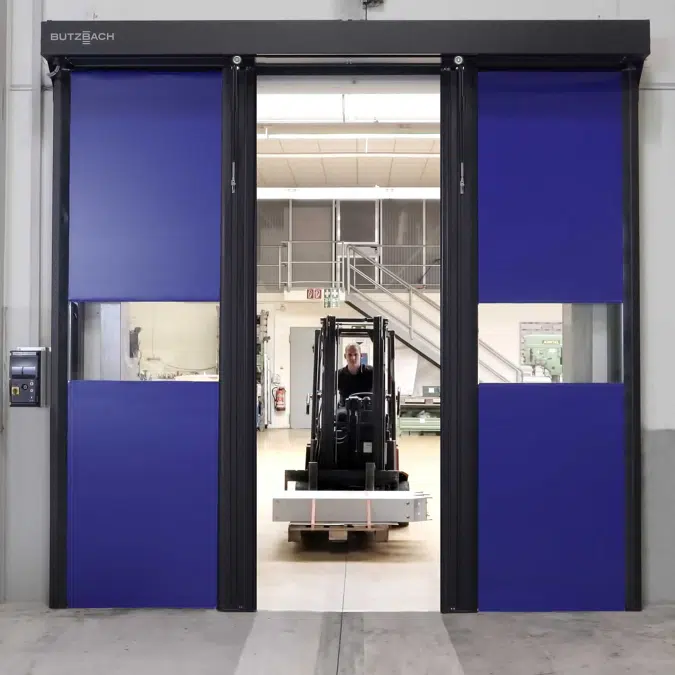

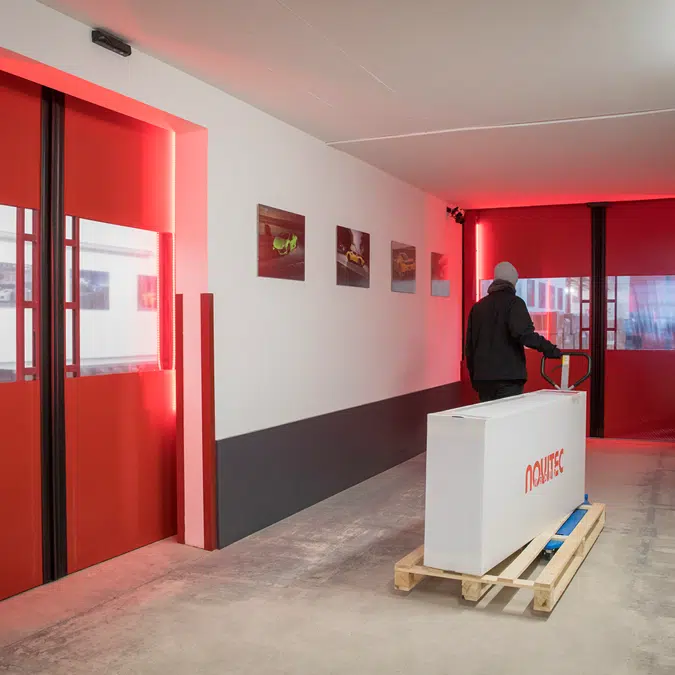

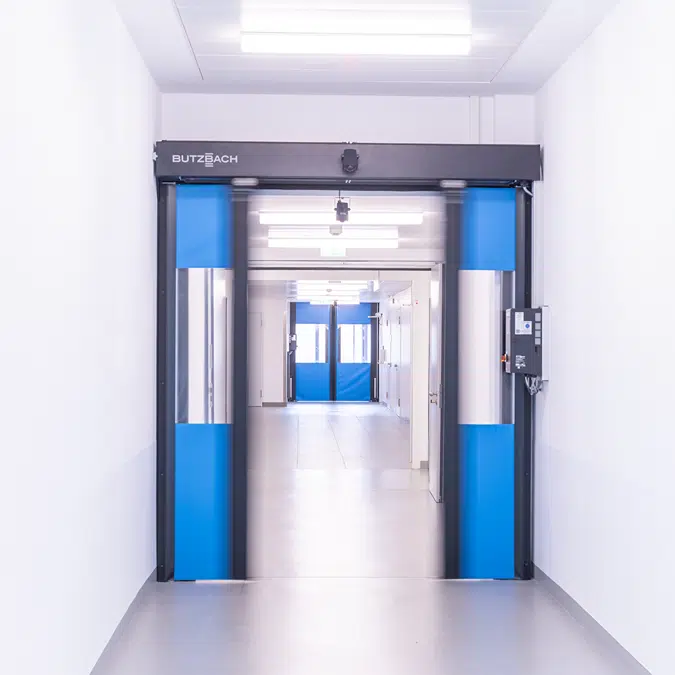

    NOVOSPRINT® Syncro High Speed Door

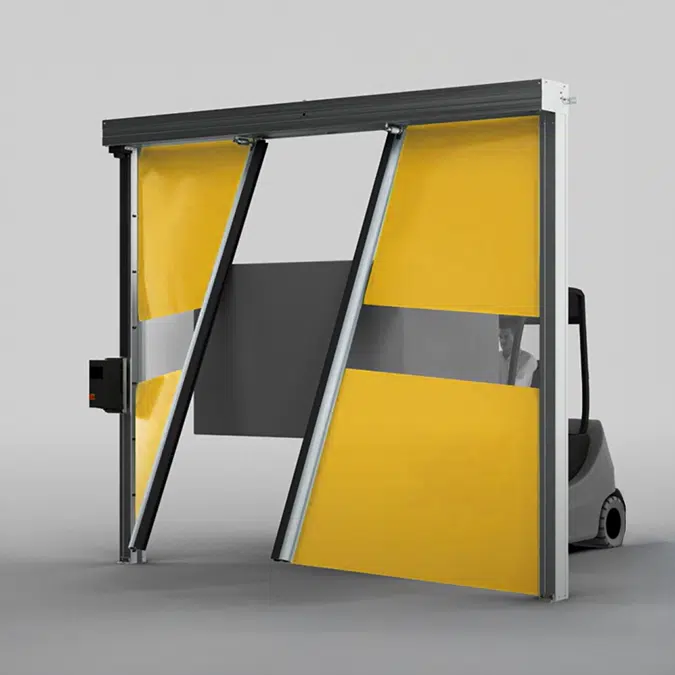

    The horizontal opening principle and speed already make it a classic in the standard range. Unbeatable when customised to your exact requirements up to a size of 9000 x 6000 mm. Can therefore be used as a roller door, forklift passage door, logistics door, area door, lock door and much more.

    NOVOSPRINT® Syncro – the high-speed door.

    Specification
    • Syncro
      Door sizeWidth min./ max. (clear passage width)1.000/ 5.000 mm
      Height min./ max. (clear passage height)1.700/ 4.500 mm
      Headroom requirement standard min.330 mm
      Space requirement total depth min. / max.420/ 520 mm
      Space requirement on the motor side / not
      on the motor side min.
      350/ 350 mm
      Height vision panel lower edge/upper edge
      in standard
      1.480/ 2.000 mm
      Performance dataDesigned for up to ... Opening cycles per year350.000
      Continuous operation: Up to ... opening
      cycles per hour
      120
      Opening speed max.5 m/s
      Operating forces/ Safe opening according to EN 13241-1complied
      Water tightness according to EN 12425Class 0
      Resistance to wind load according to EN 12424 up toClass 2
      Resistance to airborne sound Rw according
      to EN ISO 717-1 up to approx.
      7 dB
      Thermal resistance Up according to EN 12428 up to4,9 W/m²K
      Air permeability according to EN 12426 up toClass 0
      Fire behavior according to DIN 4102-1B1
      Fire behavior according to DIN EN 13501-1B-s2,d0
      Power supply Standard230 V/ 50 Hz
      Safety devicesOSE as safety edge devicecomplied
      Light curtain (integrated) as safety edge
      device
      optional
      Opening in case of electricity failure
      (with emergency opening lever)
      complied
      Automatic opening in case of electricity
      failure
      optional
      Light curtain (mounted in front) for
      contactless reversing
      optional
      Sensor solutions for opening and monitoringoptional
      Optical or acoustic warning signalsoptional
      Escape and rescue route approval (TÜV tested)complied
      Special solutionsoptional
    Technical specification
    • Unique ref.novosprint-syncro-high-speed-door
    • TypeObject (single object)
    • Date of publishing2026-03-20
    • Edition number1
    Related
    • Designed inGermany
    • Manufactured inGermany
