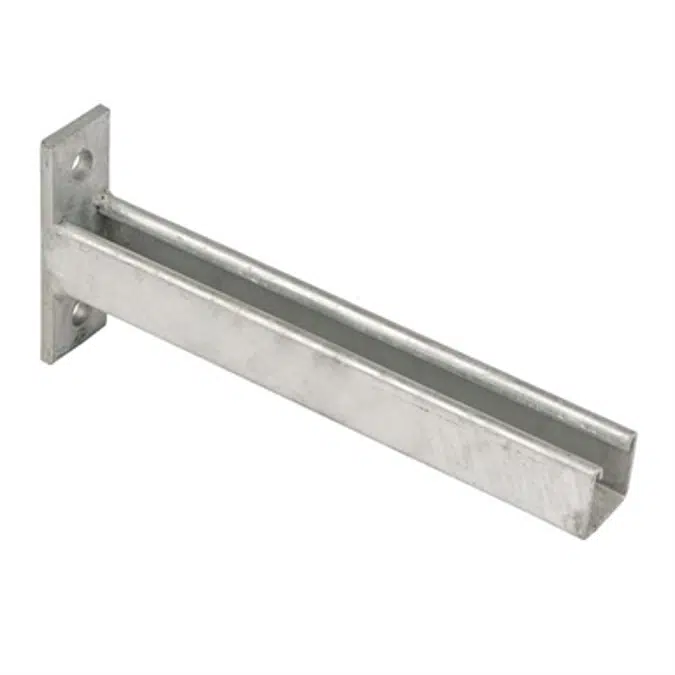

Channel Bracket - Cantilever Arm

Channel Bracket - Cantilever Arm

Channel Bracket - Cantilever Arm

Cantilever arms are fabricated from heavy duty channel and can be used for supporting many different items of equipment. Manufactured from 8 mm 2.5 mm thick galvanised steel with 14 mm holes

Hot dip galvanised, suitable for outdoor use

Specification

Type : Cantilever Arm
Plate Material Thickness 8 mm
Arm Material Thickness 2.5 mm
Finish : Hot Dip Galvanised
Notes: For further information please contact Brymec Technical Dept.

Technical specification

Unique ref.12291_12293_12294_12295_12296_12300_Cantilever_Arm
Product familyCSS - Channel Support Systems
Product groupCBR - Channel Brackets
TypeObject (single object)
Date of publishing2019-10-31
Edition number1

Links

Product urlhttps://www.brymec.com/cantilever-arm-150mm.html
Installation instructionshttps://www.brymec.com/help
Technical descriptionhttps://www.brymec.com/cantilever-arm-150mm.html

Related

Material mainSheet metal
Material secondaryGalvanized steel
Designed inUnited Kingdom
Manufactured inChina

Classification

BIMobject CategoryHVAC - Hanging Systems
IFC classificationFastener
ETIM CodeEC002836
ETIM NameAngle attachment for cable channel
Uniclass 2015 CodePr_80_77_27_15
Uniclass 2015 DescriptionChannel supports
CSI MasterFormat 2014 Code11 53 43
CSI MasterFormat 2014 TitleService Fittings and Accessories
OmniClass Number23-27 43 13
OmniClass TitleMechanical Pipe Supports

Region availability

Europe
Ireland
United Kingdom
