ALFA

ALFA

ALFA

ALFA

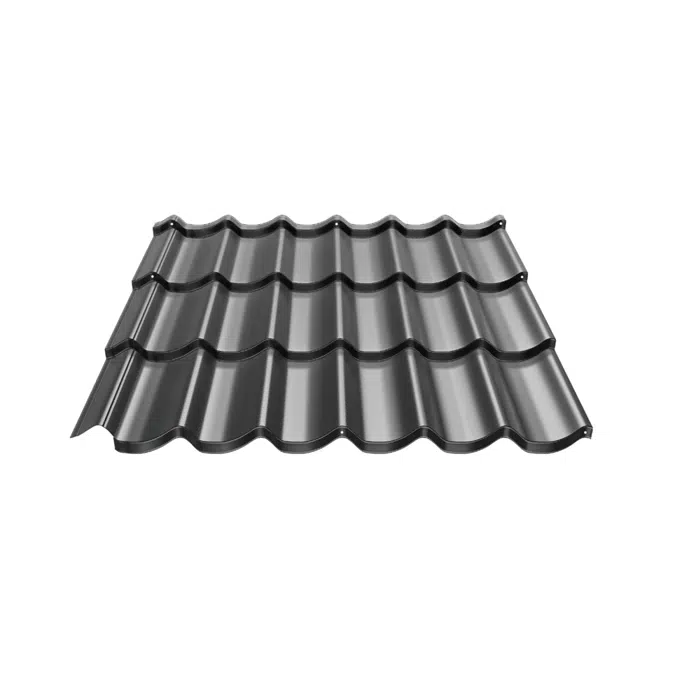

ALFA is the harmony of the wave and simplicity of shape that guarantees a good roofing effect. The wave-shaped cut effectively masks the joint between the sheets. The product is available in sheets cut to size according to the design.

The product is covered by a manufacturer's warranty of up to 40 years.

Specification

Effective width: 1100 mm

Total width: 1183 mm

Thickness of steel sheet: 0,5 mm

Total profile height: 38/43/53/58 mm

Rib height for the module 350: 15/20/30/35 mm

Rib height for the module 400: 15/20 mm

Module length: min. 1160 mm, max. 6010 mm

Weight: ~ 4,5 kg/m2

Length of an overlap, when separating metal sheets: 60 mm

Technical specification

Unique ref.alfa
Product familyROOF TILES
Product groupCLASSIC SERIES
TypeBuilding Material
Date of publishing2022-02-07
Edition number1
Width (mm)1183
Depth (mm)0.5

Links

Product urlhttps://www.bp2.pl/en/produkt/alfa-r-6
Installation instructionshttps://www.bp2.pl/uploaded/AppEntityTranslationTranslatedDownloadFileTranslation/filePath/1423/BP2_INSTALLATION_MANUAL_CLASSIC_SERIES_EN.pdf

Related

Material mainSteel
Designed inPoland
Manufactured inPoland
Weight Net (Kg)4.5

Classification

BIMobject CategoryConstruction - Roof

Region availability

Europe
Austria
Belarus
Belgium
Bulgaria
Czech Republic
Germany
Hungary
Lithuania
Netherlands
Poland
Romania
Serbia
Slovakia
