Legacy Mineral Roof System

Legacy Mineral Roof System

Legacy Mineral Roof System

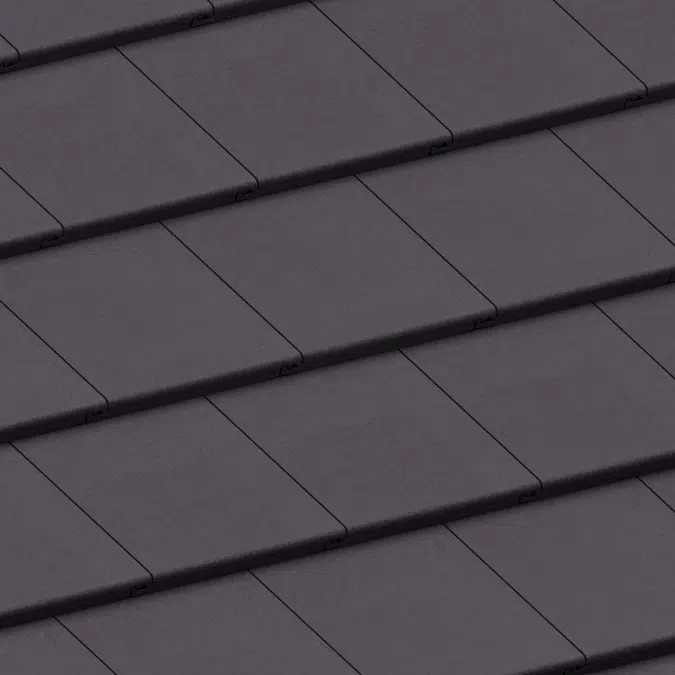

Monier Legacy Mineral roof tiles is a modern, minimalist and exclusive tile profile with modern and vibrant colours that are perfect for modern architectural designs.

Specification

Batten gauge 330 mm (310 - 330 mm) Minimum roof pitch 25°. Tile dimensions 420 x 330 mm. Coverage 300 mm +/- 1mm. Units per m² 10-1 - 10.8. Weight per m² 56.6 - 60.5 kg

Technical specification

Unique ref.legacy-mineral_7780059_my
Product familyPitched Roof Tile System
Product groupLegacy Mineral
TypeShowcase (model)
Date of publishing2024-05-20
Edition number1
Height (mm)330
Width (mm)420
Depth (mm)25

Links

Product urlhttps://www.bmigroup.com/my/product-and-system/pitched-roofs/concrete-tiles/legacy-mineral/
Installation instructionshttps://www.bmigroup.com/my/product-and-system/pitched-roofs/concrete-tiles/legacy-mineral/
Instruction videohttps://www.youtube.com/channel/UC4pSDi_W_hKTfDrdc0WwA9g
Product certificationhttps://www.bmigroup.com/my/product-and-system/pitched-roofs/concrete-tiles/legacy-mineral/
Technical descriptionhttps://www.bmigroup.com/my/product-and-system/pitched-roofs/concrete-tiles/legacy-mineral/

Related

Material mainConcrete
Manufactured inMalaysia
Weight Net (Kg)5.6

Classification

BIMobject CategoryConstruction - Roof
IFC classificationRoof
Uniclass 2015 CodePr_25_93_72_17
Uniclass 2015 DescriptionConcrete interlocking tiles
CSI MasterFormat 2014 Code07 32 16
CSI MasterFormat 2014 TitleConcrete Roof Tiles
OmniClass Number23-13 39 17 13
OmniClass TitleConcrete Roof Tiles

Region availability

Asia
Malaysia
