Frankfurter

Frankfurter

Frankfurter

Frankfurter

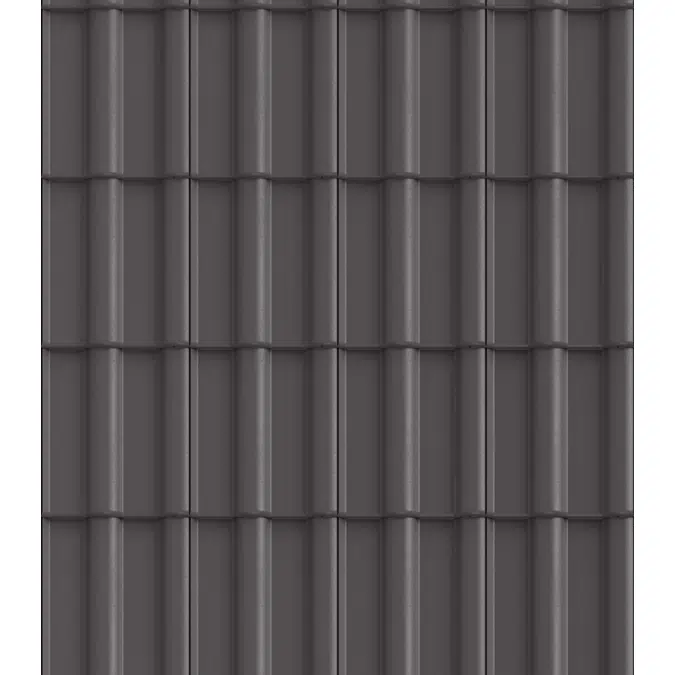

If you want to give your home a special accent with a Romanesque or Southern European style, then the Frankfurter is the right choice for your roof. This means you are choosing a high-quality roof tile! For Instructional videos for applying the Monier Revit file, go to “Links” and “Instructional video”.

Specification

Size: 420 x 330 mm Batten Gauge: 312-345 mm Cover width: 300 mm Minimum Roof pitch 17.5 degrees. For more details follow links to Technical description.

Technical specification

Unique ref.frankfurter_7780070_nl
Product familyPitched Roof Tile System
Product groupFrankfurter
TypeShowcase (model)
Date of publishing2024-06-20
Edition number1
Height (mm)420
Width (mm)330
Depth (mm)68

Links

Product urlhttps://www.bmigroup.com/nl/hellend-dak/betondakpannen/frankfurter/
Installation instructionshttps://www.skgikob.nl/images/afbeeldingen/beoordelingsrichtlijnen/SKG-IKOB-Beoordelingsrichtlijnen/BRL_1513-1_dd_20-07-2022.pdf
Instruction videohttps://www.youtube.com/channel/UC4pSDi_W_hKTfDrdc0WwA9g
Product certificationhttps://www.bmigroup.com/nl/hellend-dak/betondakpannen/frankfurter/
Technical descriptionhttps://bmipimngprodtfe.azureedge.net/sys-master-hybris-media/h61/hc9/9804729417758/Frankfurter-technische-documentatie-Monierpdf

Related

Material mainConcrete
Manufactured inFrance
Weight Net (Kg)4.4

Classification

BIMobject CategoryConstruction - Roof
IFC classificationRoof
Uniclass 2015 CodePr_25_93_72_17
Uniclass 2015 DescriptionConcrete interlocking tiles
CSI MasterFormat 2014 Code07 32 16
CSI MasterFormat 2014 TitleConcrete Roof Tiles
OmniClass Number23-13 39 17 13
OmniClass TitleConcrete Roof Tiles

Region availability

Europe
Netherlands
