Metal panel UNFOLDED
Metal panel UNFOLDED
    binder parametric metal

    Metal panel UNFOLDED

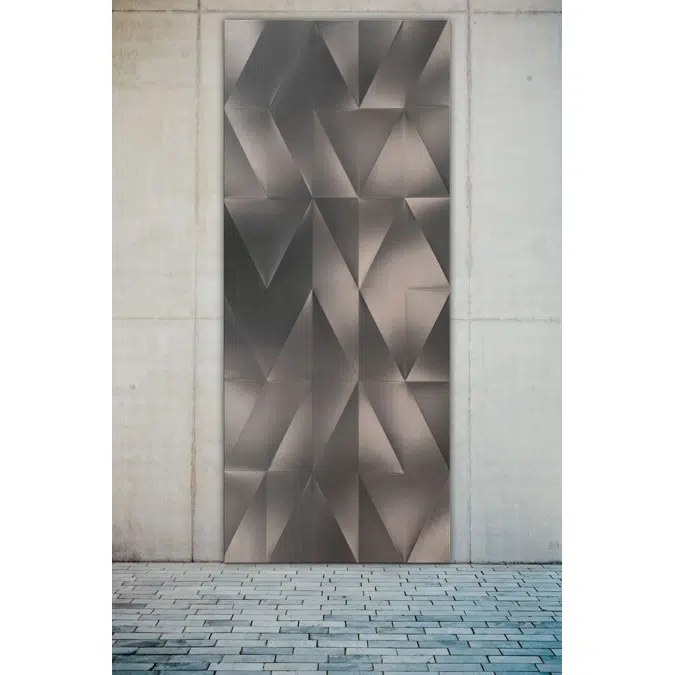

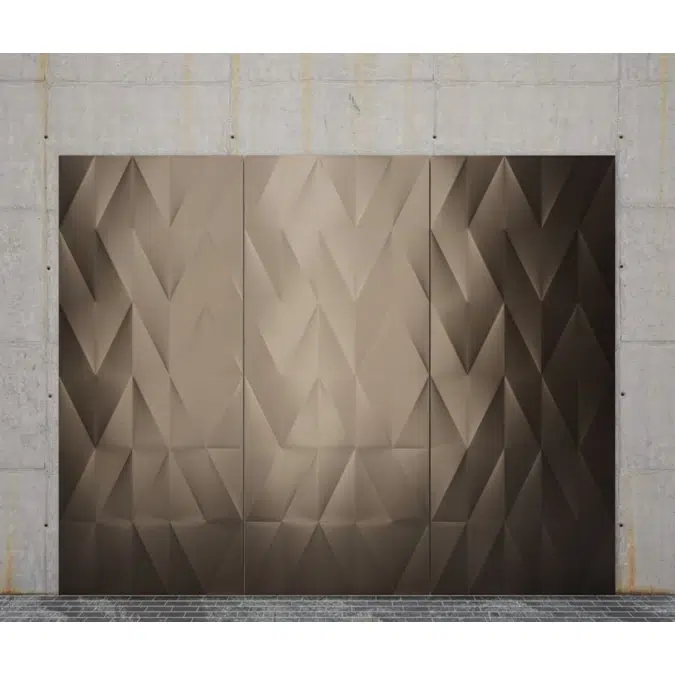

    Concise folds and a clear symmetry appear attractive and tidy. Then light creates bright and shadowy areas and makes the pattern move dressy.

    The dark anodized variants show a simple classiness and accantuate the patterns straightness, whereas variants in plain stainless steel (or polished or brushed) expose very special and crisp reflection effects. Even as perforated metal sheet the subtle structure of lines and sloped small areas are apparent.

    Specification

    • Areas of application: 3D metal facades, 3D wall claddings, 3D ceiling linings, 3D sun protection and sound insulation

      Material: Aluminium, stainless steel, steel, copper alloys, other alloys on request

      Style: Solid or perforated metal sheet, edges trimmed canted as cassette in standard format

      Surface: Anodized, powder coated, polished, matted, brushed, special paintings

      Material thickness: depends on material, 0,3 – 3,0mm

      Length: 3100mm repeating pattern dimension, cassette and other sizes on request

      Width: 1300mm repeating pattern dimension, cassette and other sizes on request

    Technical specification
    • Unique ref.metal-panel-unfolded
    • Product familymetal panel
    • Product groupmetal panel
    • TypeBuilding Material
    • Date of publishing2026-03-12
    • Edition number1
    • Height (mm)3100
    • Width (mm)1300
    Links
    Related
    • Material mainAluminium
    • Material secondaryStainless steel
    • Designed inGermany
    • Manufactured inGermany
    Classification
    • BIMobject CategoryWalls - Cladding
