binder parametric metal

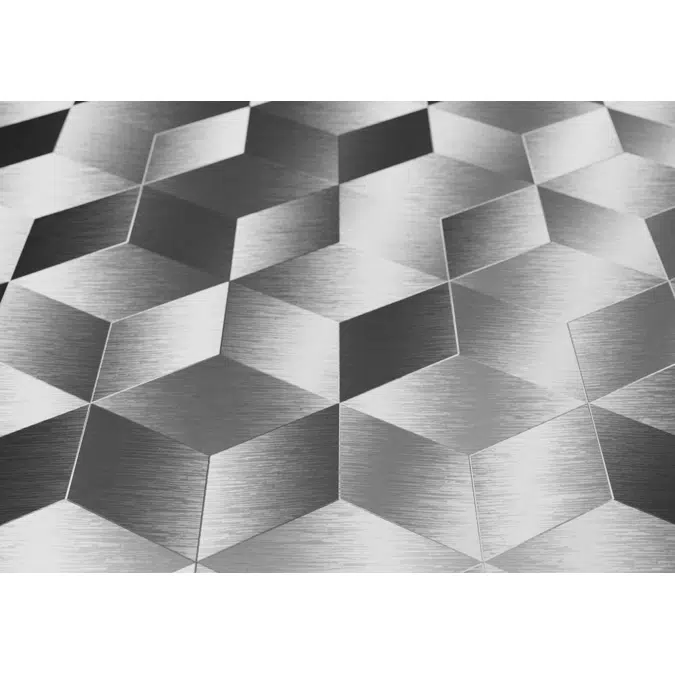

Metal panel CUBES

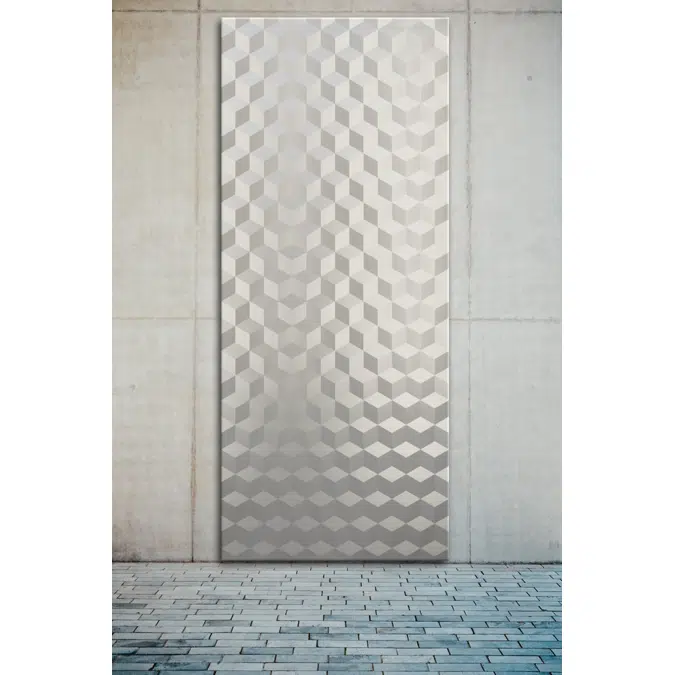

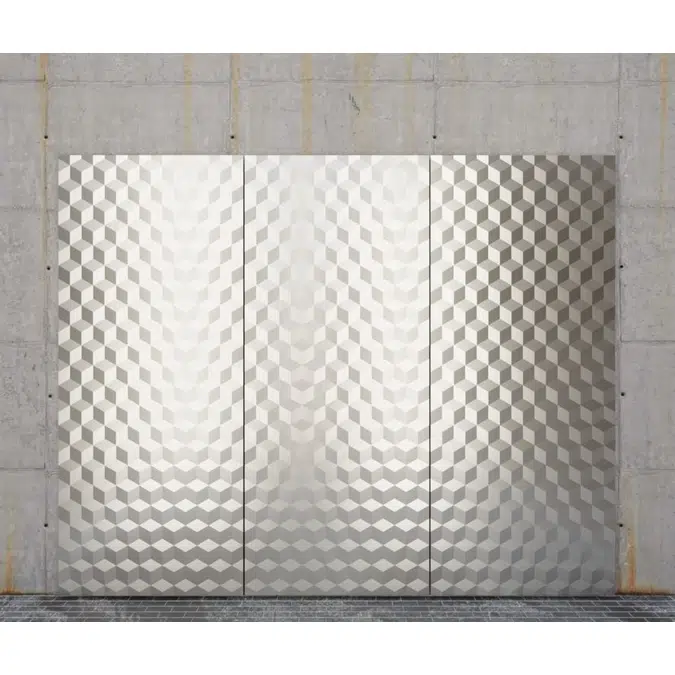

Rows of stacked cubes are generated from a subtle metal forming.

The optical illusion is hereby not achieved through colour, instead the incidence of light generates light and shadows, which creates this special distinct 3D effect. Different materials or surface treatments intensify or individualise the phenomenon even more.

Specification

Areas of application: 3D metal facades, 3D wall claddings, 3D ceiling linings, 3D sun protection and sound insulation
Material: Aluminium, stainless steel, steel, copper alloys, other alloys on request
Style: Solid or perforated metal sheet, edges trimmed; canted as cassette in standard format
Surface: Anodized, powder coated, polished, matted, brushed, special paintings
Material thickness: depends on material, 0,3 – 3,0mm
Length: 2977mm repeating pattern dimension, cassette and other sizes on request
Width: 1250mm repeating pattern dimension, cassette and other sizes on request
