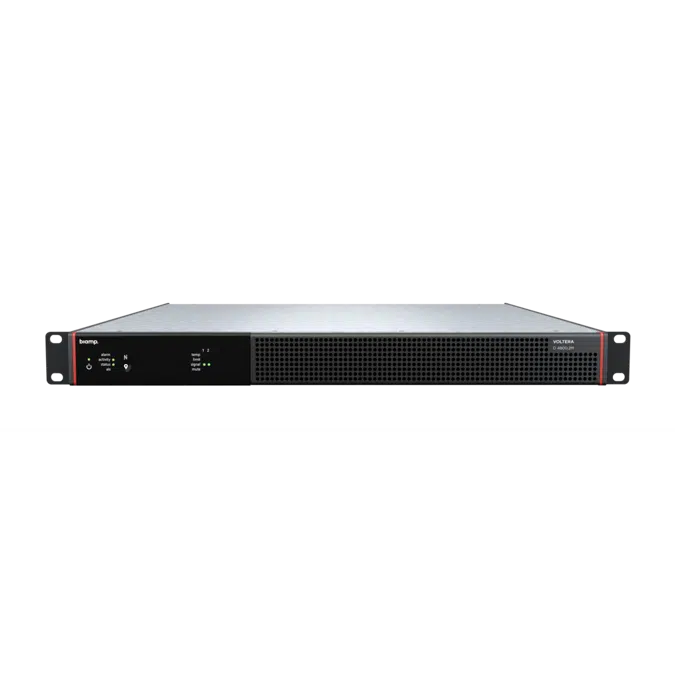

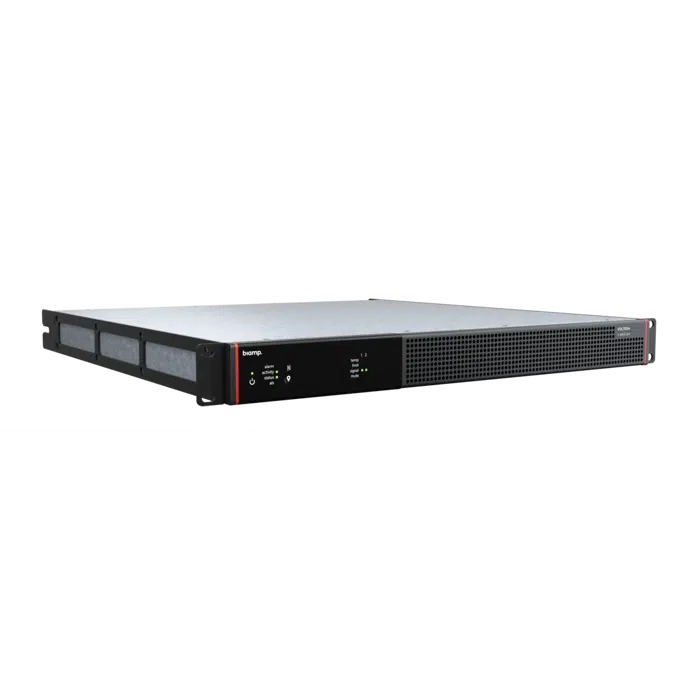

Voltera D 4800.2M Audio DSP and amplified loudspeaker controller

Voltera D M Seriesseamlessly integrates amplification into a powerful loudspeaker controller, while also adding a fully programmable DSP onboard with enough headroom to handle even complex audio processing and distribution needs.

A host of one-of-a-kind features drive flexibility, reliability and extraordinary audio performance. The combination of integrated DSP, high power and channel density, high efficiency and low idle power — along with support for power sharing and networked audio — delivers significant space and cost savings.

Voltera D M amplified loudspeaker controllers are perfect for smaller venues where their ability to replace an external DSP can have a significant proportional impact on the total system cost. However, larger systems can also benefit when more DSP power is needed. No central resources to limit system size and onboard processing means system cost scales with power requirements

100% software configurable, by either Tesira or Biamp VenueTune software, depending on user preference and audio network protocols, Voltera D M amplified loudspeaker controllers make setup and use easier.

The ALAMOS loudspeaker profile library, with nearly 700 unique profiles covering over 200 Biamp models, streamlines commissioning when using Tesira or VenueTune software

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 2 class D channels sharing 4800 watts
• Power sharing provides up to 100% of total power or 4800 W through any single channel
• High peak voltage output capability: 237 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready
