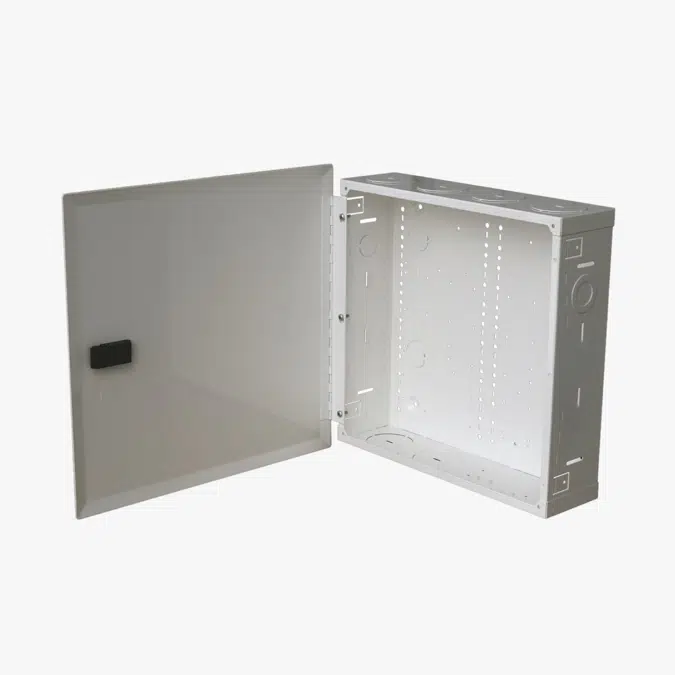

MMH Series: Interior Structured Wiring Enclosures (Hinged Door)

Benner-Nawman

MMH Series: Interior Structured Wiring Enclosures (Hinged Door)

Four sizes available. MMH Series enclosure fits perfectly into wall spaces before drywall installation. The enclosure features a 20-gauge body and an 18-gauge dual-sided hinged door, both are equipped with a universal mounting system compatible with most module brands. It includes side-mount slots with depth markings and top/bottom knockouts, as well as an AC knockout.

Features

Zinc-coated steel construction; Powder-coat white finish
20 gauge box / 18 gauge dual-sided hinged door
Hinged Door is included; (see MM series for removable lid option)
Universal Mounting pattern - accepts most module brands
Mounts prior to drywall between 16" center studs
Side-mounting slots and depth markings
Knockouts: Top and bottom; AC knockout on bottom with additional options on sides and rear panel

MMH Series Models Include

Mounting Screws
Instruction Sheet
Cardboard paint shield

Optional Add-Ons

MM-KLA Key Lock (2 keys)

Specification

Model Numbers:	14104-MMH: 14-1/4" (W) x 10" (H) x 4" (D) (8 lbs)
	14144-MMH: 14-1/4" (W) x 14" (H) x 4" (D) (10 lbs) [UL985, UL1023]
	14284-MMH: 14-1/4" (W) x 28" (H) x 4" (D) (17 lbs) [UL985, UL1023]
	14424-MMH: 14-1/4" (W) x 42" (H) x 4" (D) (25 lbs) [UL985, UL1023]
