36-Inch Series Surface-Mount Enclosures

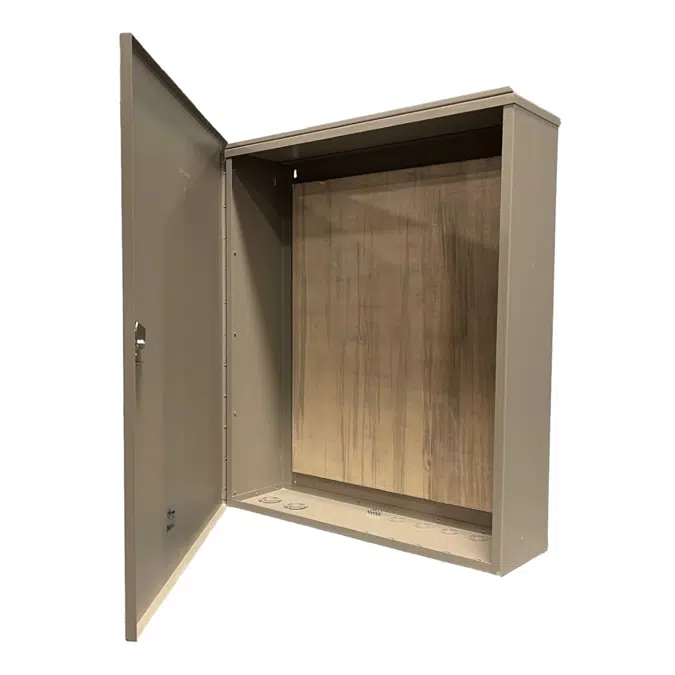

Two Sizes available. The 36-Inch exterior service box consists of 14-gauge zinc-coated steel material, which provides weather resistance and features a tan powder-coat finish. The service box includes a reinforced hinged door with a recessed hex latch, a plywood backboard, a ground bar, and 12 knockouts.

Features

Two Models:
- 36368W-UL: 36" (W) x 36" (H) x 8" (D)
- 36369W-UL: 36" (W) x 36" (H) x 9" (D)
Fully enclosed exterior service boxes
Constructed of 14 gauge zinc-coated steel with powder-coated tan finish
14 gauge reinforced hinged door with 7/16" recessed hex latch
"Communications" embossed
Box weight is 115 lbs. (36368W-UL) | 119 lbs. (36369W-UL)
UL listed (UL 1863); designed to NEMA 3R

36" Service Boxes Include:

Enclosure w/ hinged door
3/4" plywood backboard for mounting utility equipment
4-position #4-14 ground bar
12 Total Knockouts

Specification

Enclosure Type	Exterior, Surface-Mount
Model #s (Dimensions/Box Weight)	36368W-UL: 36" (W) x 36" (H) x 8" (D) \| 115 lbs.
	36369W-UL: 36" (W) x 36" (H) x 9" (D) \| 119 lbs.
Knockouts	36368W-UL: 2 knockouts 2-1/2" to 3-1/2" (for 2" to 3" conduit) & 10 knockouts 1-1/8" to 1-3/4" (for 1" to 1-1/2" conduit)
	36369W-UL: 2 knockouts 2-1/2" to 3-1/2" (for 2" to 3" conduit) & 8 knockouts 1-3/8" to 1-3/4" (for 1" to 1-1/2" conduit)
Certifications	UL listed (UL 1863); designed to NEMA 3R
