DCX Rackmount Patch Panel High Density
Belden

DCX Rackmount Patch Panel High Density

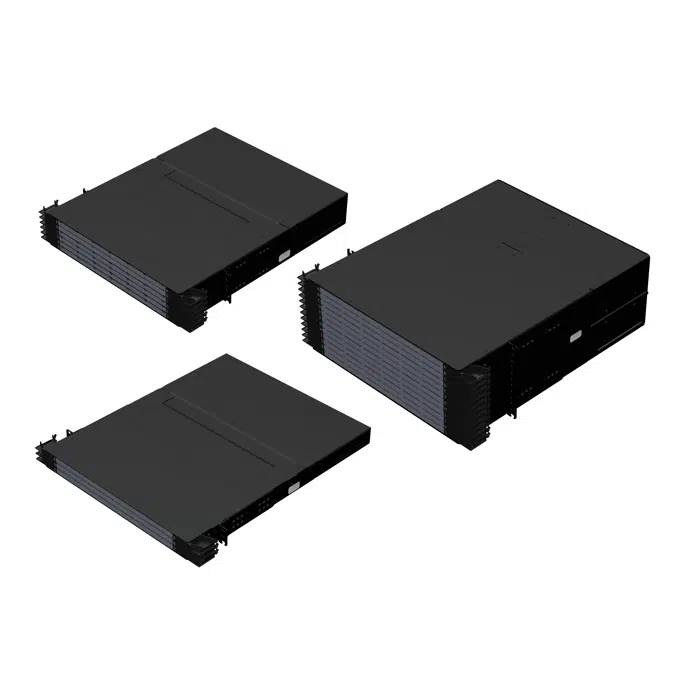

Belden's rack-mount fiber patch panels are available in 1U, 2U & 4U configurations. Belden offers three platforms for housings and shelves in data center environments. All platforms offer the flexibility to deploy pre-terminated or field-terminated solutions including splicing.

Specification

  • Available in two configurations, the DCX platform delivers unmatched flexibility:

    • Ultra High-Density: Features 3 pull-out trays per rack unit (72-ports/RU)1
    • High-Density: Includes 1 pull-out/tilt tray per rack unit (48-ports/RU)

    Both versions are compatible with all the DCX frames and cassettes available in the line allowing an easy migration from Base-12 technology to Base-8 and beyond without sacrificing termination density.

Technical specification
  • Unique ref.dcx-rackmount-patch-panel-high-density
  • Product familyPatch Panels
  • Product groupDC Housings & Shelves
  • TypeObject (single object)
  • Date of publishing2026-02-20
  • Edition number1
Links
Related
  • Material mainSteel
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryElectronics - Networking
  • UNSPSC nameData Voice or Multimedia Network Equipment or Platforms and Accessories
  • UNSPSC code4322
  • Uniclass 2015 CodePr_75_75_50_60
  • Uniclass 2015 DescriptionPatch panels
  • CSI MasterFormat 2014 Code27 11 19
  • CSI MasterFormat 2014 TitleCommunications Termination Blocks and Patch Panels
  • OmniClass Number23-37 00 00
  • OmniClass TitleInformation and Communication Specific Products and Equipment
  • CSI UniFormat II CodeD5030
  • CSI UniFormat II TitleCommunications & Security
