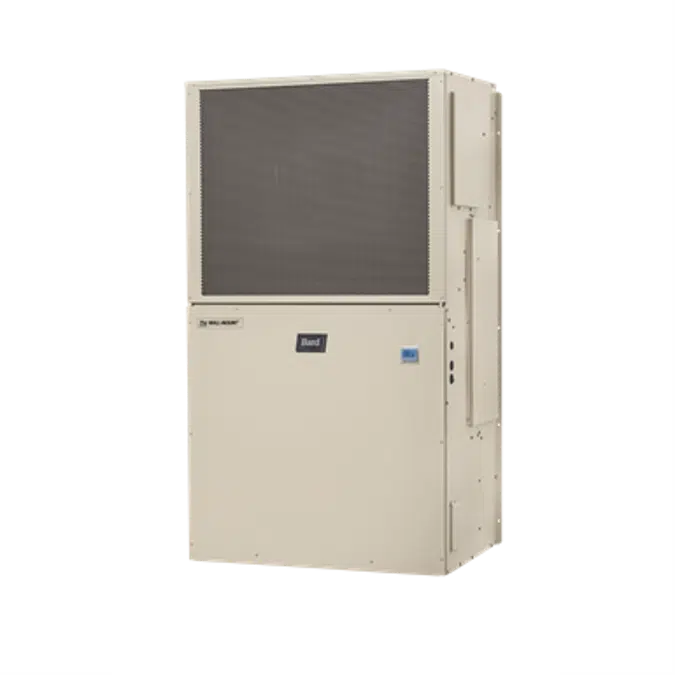

WR36 / WR58 Series FUSION-TEC Wall Mount Air Conditioners
Bard Manufacturing

WR36 / WR58 Series FUSION-TEC Wall Mount Air Conditioners

The FUSION-TECTM has been designed specifically to optimize Free Direct Ambient Cooling (DAC) opportunities. By implementing a counterflow design, productive outdoor air for free cooling is brought into the system from the lower portion of the chassis. The heat in the shelter is exhausted out of the top of the chassis which completely eliminates any possibility of recirculating hot exhaust into the cool air entryway. When outdoor air is not
productive for free cooling, the FUSION-TEC system has a fully flexible mechanical cooling operation that operates at an IPLV of up to 17.0, and also surpasses the D.O.E.'s future 11.0 EER efficiency requirements.

























Balanced Climate;  Bard Wall-Mount:  Active Hot Gas Dehumidification;  Energy Recovery Ventilator;  SPVU;  62.1;  ARI 390-2003;  ETL US & Canada;  60hz;  50hz

Specification
    • 3.0 to 5.0 ton cooling capacity
    • Up to 17.0 IPLV
    • Reverse Air Flow Path
    • Single and three phase power options
    • Copeland step capacity scroll compressor
    • ECM indoor blower motor
    • R-410A green refrigerant
    • Enclosed condenser fan motor
    • Hydrophilic aluminum finned evaporator coil
    • Factory installed electric heat
    • Factory installed economizer - standard
    • Optional Bard Guard security system
    • Uses LC1000 PLC controller - controls up to 14 units
    • AHRI-390 Certified
    • ETL Listed (US and Canada)
Technical specification
  • Unique ref.WR-FUSION-TEC-wall-mount-air-conditioners-36-58
  • Product familyIndoor Solution
  • Product groupWall Mount Air Conditioner
  • TypeObject (single object)
  • Date of publishing2019-10-13
  • Edition number1
  • Height (inches)76
  • Width (inches)44
  • Depth (inches)29.8
Links
Related
  • Material mainSteel
  • Designed inUnited States
  • Manufactured inUnited States
  • Weight Net (Lbs)545
Classification
  • BIMobject CategoryHVAC - Air Conditioning
  • IFC classificationHeat Exchanger
  • UNSPSC nameAir conditioners
  • UNSPSC code40101701
  • Uniclass 2015 CodeSs_65_80
  • Uniclass 2015 DescriptionAir conditioning systems
  • CSI MasterFormat 2014 Code23 81 19
  • CSI MasterFormat 2014 TitleSelf-Contained Air-Conditioners
  • OmniClass Number23-33 39 17
  • OmniClass TitlePackaged Air Conditioners
  • CSI UniFormat II CodeD3090
  • CSI UniFormat II TitleOther HVAC Systems & Equipment
