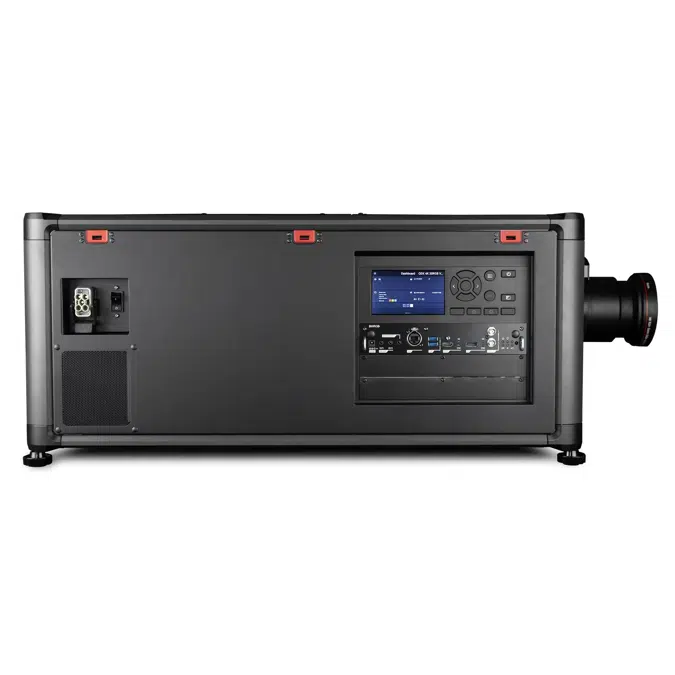

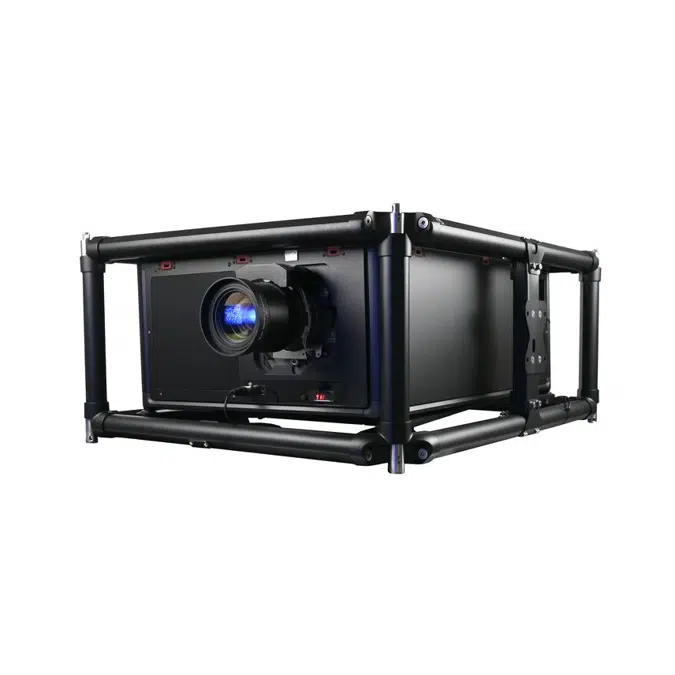

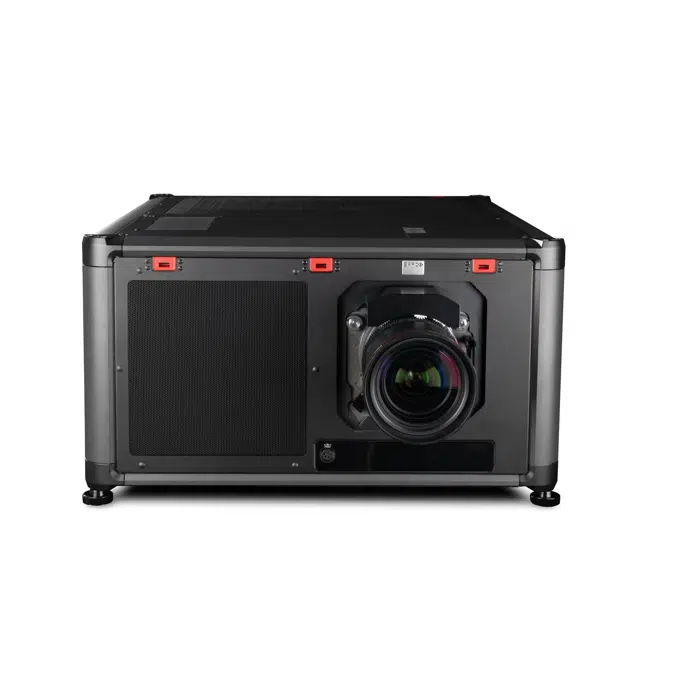

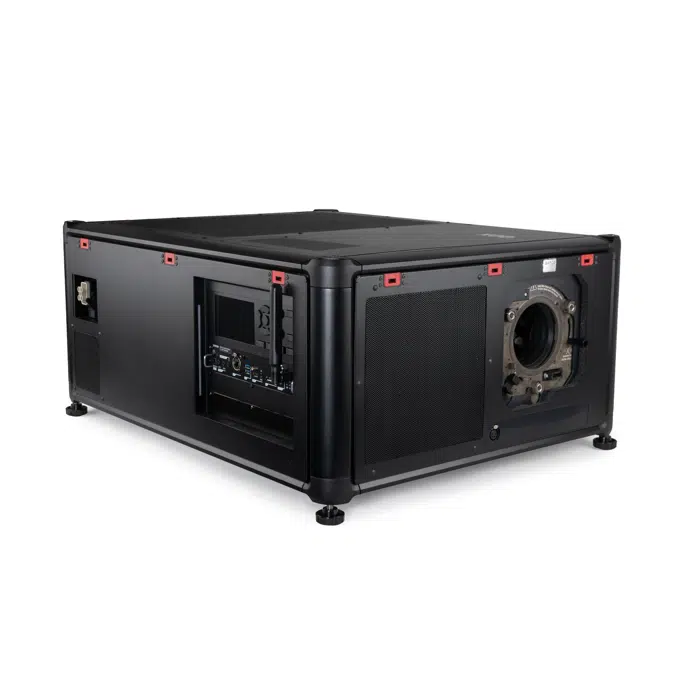

QDX N4K35 projector

Notes The specifications in this document are preliminary

Projector type Native 4K 3-chip DLP digital projector

Technology 0.98" DMD™ x3

Resolution 4096 x 2176 (DC 4K Native)

Brightness 33000 center lumens*

35000 ISO lumens

31000 ANSI lumens

Contrast ratio Full field 2.200:1

Contrast ratio Barco DynaBlack® 20.000:1

Optical lens shift Vertical: up to -150% to +130% (motorized)

Horizontal: up to +/-50% (motorized)

with lens memory on TLD+ lenses

Light source Blue+Red laser phosphor with inorganic phosphor wheel

Brightness uniformity 95%

Light source lifetime 20000 hrs (100% power, DynaBlack® off)

Color correction Yes

Optical dowser Yes

Aspect ratio 4096:2176

Lens type TLD+

Lens range TLD+: 0.37:1 ; 0.65-0.85:1 ; 0.8-1.16:1 ; 1.25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1

Color space REC 709 +

Orientation 360°

Sealed DLP™ core Standard

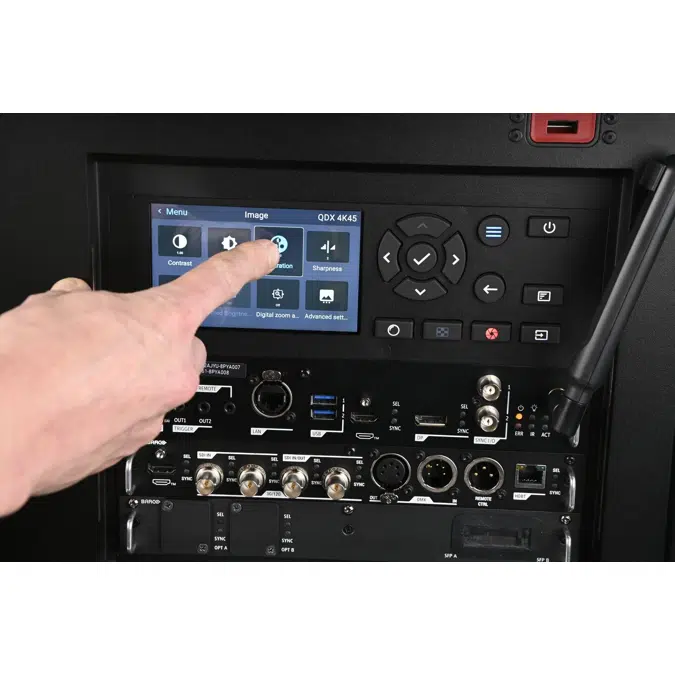

Inputs HDMI™ 2.1 (HDCP2.2 -HDR****)/ DP1.4 (HDCP 1.3) / RJ45 Ethernet / USB(5v) / 12V out/ BNC 3D sync in-out

Input resolutions Including and up to:

4096 x 2160 @ 240Hz

3840 x 2400 @ 240Hz

7680 × 4320 @ 60Hz

Processing Pulse electronics

Web browser Yes

Picture-by-picture Two sources simultaneously

CLO (constant light output) Yes

DMX 512 Optional

Image processing Embedded warp & blend

Keystone correction Yes

Standby power TBD

Software tools Pulse Toolset + Android app + iOS app + IMS

Control DMX (optional), XLR wired (optional) + IR, RJ45, Wifi**, GSM**

3D Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz*

3D stereo formats: 1xHDMI™ 1xDP or Quad DP(optioN/Al) top/ bottomsequential multi pipe.

24/7 operation Yes

BTU per hour TBD

Operating temperature 0-40°C / 32°-104°F (reduce power > 40°C)

Optional Inputs Quad DP1.2

Fiber SFP

HDBaseT(Lite)/ HDMI™/ Quad-3G/ 12G/ DMX/ remote CTRL

HDBaseT

Storage temperature -10°C to 60°C

Operating humidity 0-80% (no condense)

Storage humidity 5 -90% RH

Network connection 10/100 base-T RJ-45 connection Wifi

Dimensions (WxLxH) 660 x 830 x 350 mm / 25.98 x 32.67 x 13.77 inches

Weight 79 kg / 174 lbs

Shipping weight 92,5 kg / 202 lbs box + pallet

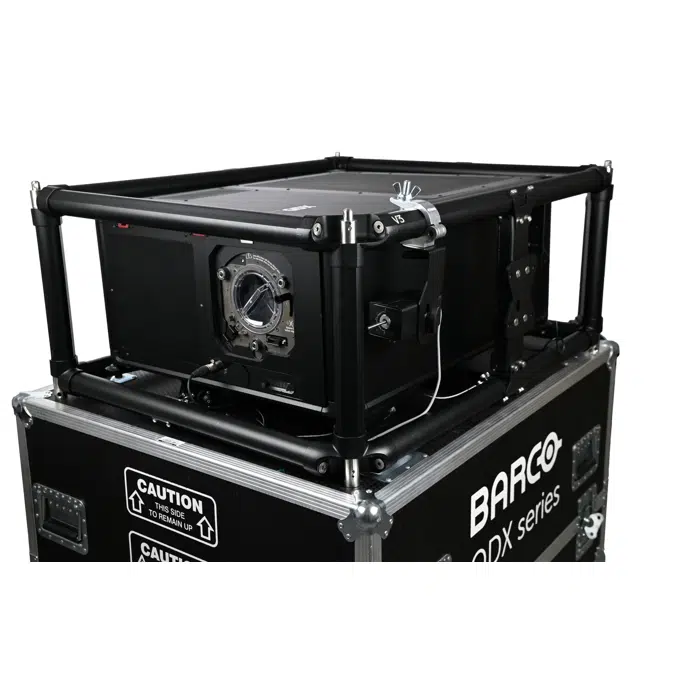

179 kg / 392 lbs flightcase + pallet

Power requirements 120-160V (reduced power)20A / 200-240V (+/-10%) 32A 50-60Hz

Power consumption TBD

Noise level (typical at 25°C/77°F)

Shipping dimensions (WxLxH) 800 x 1200 x 660 mm / 31.49 x 47.24 x 25.9 " incl. palet

800 x 970 x 510 mm / 31.5 x 38.1 x 20 " box only

1660 x 990 x 920 / 65.3 x 39 x 36.2 " incl. flightcase

Safety class Laser Safety Class: RG3 Class 2

Standard accessories Power cord wireless / XLR wired rugged remote control

Certifications Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations part 15 Class A and CE EN55032 Class A Rohs

Warranty 3 years

*Note * Brightness levels +/-10%

** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
