TCVS – Wall Expansion Joint Face Seal

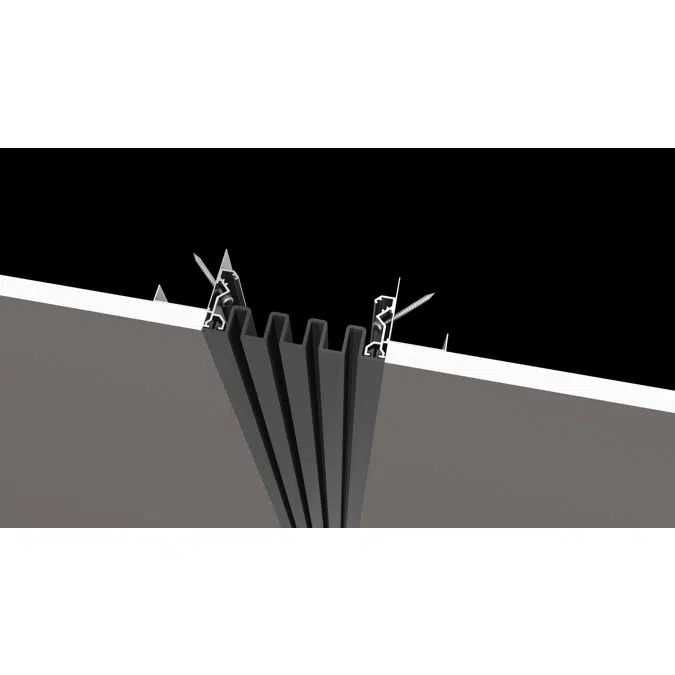

Balco interior face seal expansion joint covers are a combination of elastomeric seals and aluminum base frames that are designed to mechanically attach to various wall and ceiling materials such as gyp-board, CMU or acoustical ceiling frame-work.

IDEAL FOR:

Applications where a narrow, recessed and colorable joint cover is preferred for blending with interior finishes

ADVANTAGES:

Narrow sight-line
No exposed fasteners
Available in multiple standard colors (custom colors available)

OPTIONS:

Fire barrier

Balco Expansion Joint Systems and Seismic Joint Covers blend aesthetically appealing finishes with high performance-tested materials and safety features (i.e. fire rating and ADA compliance).

Specification

RELATED: TCVSE
JOINT SIZE: 2-12″ (Custom larger sizes may be available; contact Balco directly)
MOVEMENT: ±100% Expansion/Contraction; ±100% Lateral Shear (Excludes joints over 5″); Vertical Shear Varies
FEATURES: Extruded santroprene seal (Silicone option available); No exposed fasteners; Flush mount installation only; Multiple santoprene (and silicone) color options available*; Aluminum Ships in 10′ lengths; Santoprene ships in up to 60′ lengths; TCVSE only available up to 4″ joint
PERFORMANCE: Seismic, thermal and wind movement per ASTM E1399 standard; Contributes to LEED® credits

Technical specification

Unique ref.tcvs_EJC
Product familyExpansion Joint Cover Systems
Product groupArchitectural Systems
TypeObject (single object)
Date of publishing2021-06-30
Edition number1

Links

Product urlhttps://www.balcousa.com/product/tcvs/
Installation instructionshttps://www.balcousa.com/product/tcvs/
Product certificationhttps://www.balcousa.com/product/tcvs/
Technical descriptionhttps://www.balcousa.com/product/tcvs/

Material mainElastomer
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryConstruction - Joining Systems
IFC classificationBuilding Element
Uniclass 2015 CodePr_35_90_27
Uniclass 2015 DescriptionExpansion joints
CSI MasterFormat 2014 Code07 95 13
CSI MasterFormat 2014 TitleExpansion Joint Cover Assemblies
OmniClass Number23-13 31 21 19 11
OmniClass TitleExpansion and Contraction Joints
