49482USA AXOR Citterio C 3-hole bath mixer for concealed installation wall-mounted

49482USA AXOR Citterio C 3-hole bath mixer for concealed installation wall-mounted

49482USA AXOR Citterio C 3-hole bath mixer for concealed installation wall-mounted

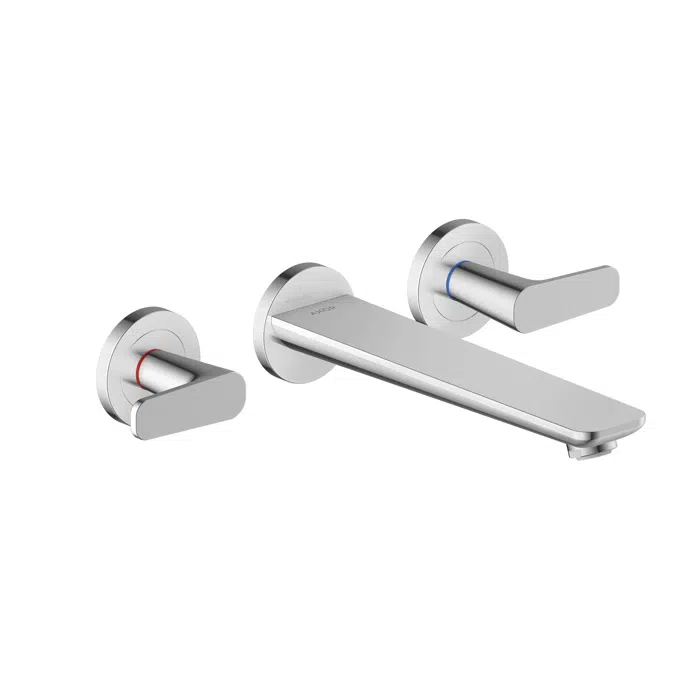

AXOR Citterio C 3-hole bath mixer for concealed installation wall-mounted

Specification

Surfaces:
- 49482001 Chrome
- 49482141 Brushed Bronze
- 49482251 Brushed Gold Optic
- 49482331 Polished Black Chrome
- 49482341 Brushed Black Chrome
- 49482671 Matt Black
- 49482801 Stainless Steel Optic
- 49482821 Brushed Nickel
- 49482831 Polished Nickel
- 49482951 Brushed Brass
- 49482991 Polished Gold Optic
Specification:
• 1 function
• projection: 222 mm
• spray type mixer: normal spray
• maximum flow rate at 3 bar: 20 l/min
• ceramic valves hot/cold 90°
• connection type: basic set
• wall-mounted
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• no additional maintenance opening required

Technical specification

Unique ref.49482USA
Product familyBath mixer
Product groupAXOR Citterio C
TypeObject (single object)
Date of publishing2024-05-23
Edition number1
Height (mm)2.38
Width (mm)12.3
Depth (mm)9.5

Links

Product urlhttps://www.axor-design.com/articledetail--49482001

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.7

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationValve
ETIM CodeEC010862
ETIM NameBath mixing tap
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87
Uniclass 2015 DescriptionTaps and water supply outlet fittings
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
Canada
United States
