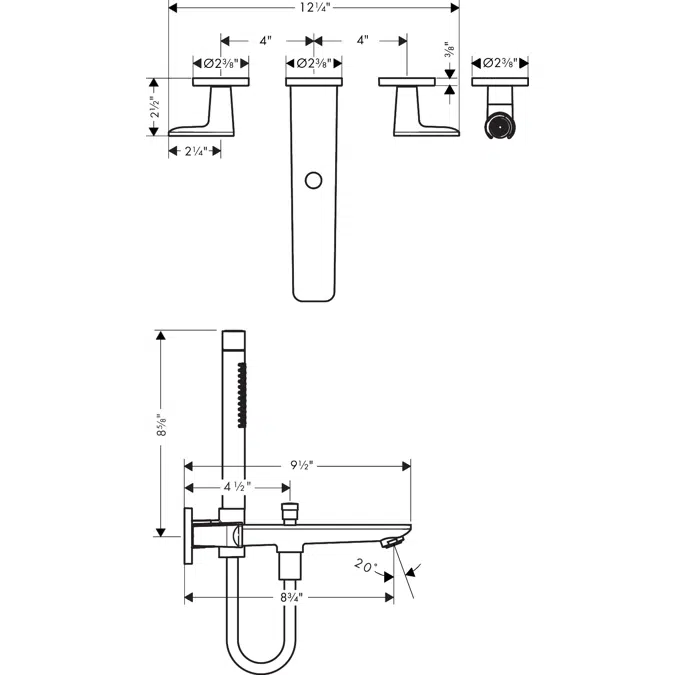

AXOR Citterio C 3-hole bath mixer for concealed installation wall-mounted with hand shower

Specification

Surfaces:
- 49480001 Chrome
- 49480141 Brushed Bronze
- 49480251 Brushed Gold Optic
- 49480331 Polished Black Chrome
- 49480341 Brushed Black Chrome
- 49480671 Matt Black
- 49480801 Stainless Steel Optic
- 49480821 Brushed Nickel
- 49480831 Polished Nickel
- 49480951 Brushed Brass
- 49480991 Polished Gold Optic
Specification:
• consists of: 3-hole bath mixer, hand shower, shower holder, shower hose
• 2 functions
• projection: 222 mm
• spray type mixer: normal spray
• spray type hand shower: Rain, Mono
• maximum flow rate at 3 bar: 20 l/min
• flow rate of hand shower at 3 bar: 6,3 l/min
• ceramic valves hot/cold 90°
• diverter with automatic resetting
• non-return valve
• connection dimension: DN15
• connection type: basic set
• wall-mounted
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• no additional maintenance opening required

Technical specification

Unique ref.49480USA
Product familyBath mixer
Product groupAXOR Citterio C
TypeObject (single object)
Date of publishing2024-05-23
Edition number1
Height (inches)8.7
Width (inches)14.7
Depth (inches)9.5

Links

Product urlhttps://www.axor-design.com/articledetail--49480001

Related

Designed inGermany
Manufactured inGermany
Weight Net (Lbs)5.68

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationValve
ETIM CodeEC010862
ETIM NameBath mixing tap
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87
Uniclass 2015 DescriptionTaps and water supply outlet fittings
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
Canada
United States
