49111CHN AXOR Citterio C Single lever basin mixer for concealed installation wall-mounted with spout 195 mm - cubic cut

49111CHN AXOR Citterio C Single lever basin mixer for concealed installation wall-mounted with spout 195 mm - cubic cut

49111CHN AXOR Citterio C Single lever basin mixer for concealed installation wall-mounted with spout 195 mm - cubic cut

AXOR Citterio C Single lever basin mixer for concealed installation wall-mounted with spout 195 mm - cubic cut

Specification

Surfaces: - 49111007 Chrome - 49111147 Brushed Bronze - 49111257 Brushed Gold Optic - 49111307 Polished Red Gold - 49111317 Brushed Red Gold - 49111337 Polished Black Chrome - 49111347 Brushed Black Chrome - 49111677 Matt Black - 49111807 Stainless Steel Optic - 49111827 Brushed Nickel - 49111957 Brushed Brass - 49111997 Polished Gold Optic Specification: • consists of: single lever basin mixer for concealed installation wall-mounted, waste set • projection: 193 mm • handle variant: lever handle • spray type: normal spray • maximum flow rate at 3 bar: 5 l/min • ceramic cartridge • suitable for continuous flow water heaters • non-closing waste set • connection type: basic set • connection dimension: DN15 • handle can be positioned on the right or left, depending on the basic set installation

Technical specification

Unique ref.49111CHN
Product familyBasin mixer
Product groupAXOR Citterio C
TypeObject (single object)
Date of publishing2024-05-23
Edition number1

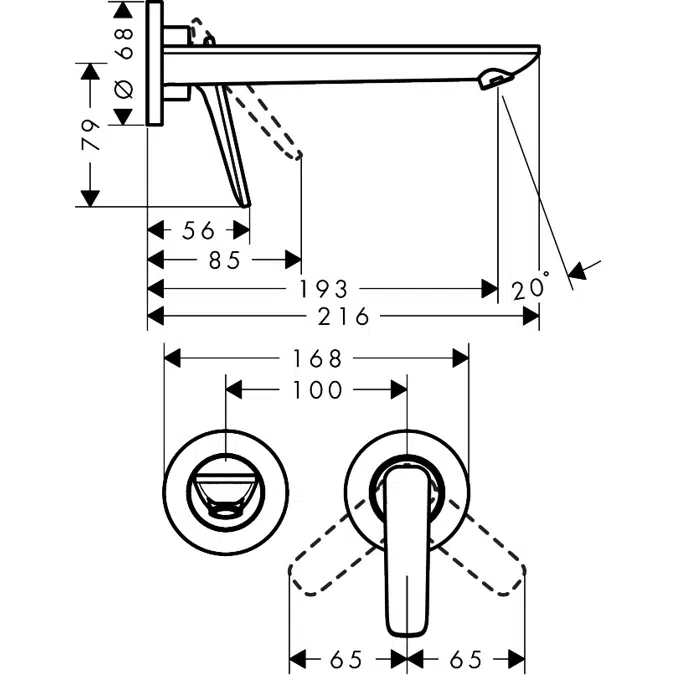

Height (mm)113
Width (mm)168
Depth (mm)216

Links

Product urlhttps://www.axor-design.com/articledetail--49111007

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.45

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationValve
ETIM CodeEC010862
ETIM NameBath mixing tap
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87
Uniclass 2015 DescriptionTaps and water supply outlet fittings
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

Asia
China
