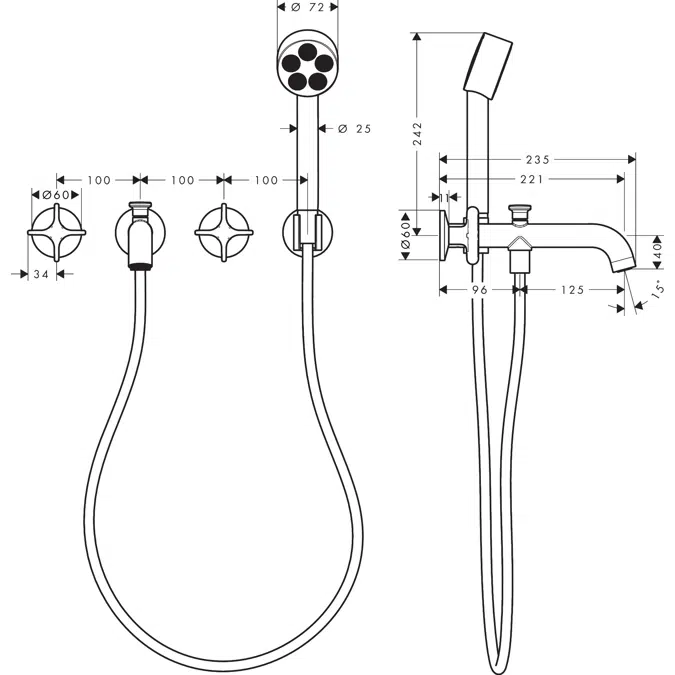

48443XXX AXOR One 3-hole bath mixer for concealed installation wall-mounted with cross handles and hand shower
48443XXX AXOR One 3-hole bath mixer for concealed installation wall-mounted with cross handles and hand shower
    AXOR

    48443XXX AXOR One 3-hole bath mixer for concealed installation wall-mounted with cross handles and hand shower

    AXOR One 3-hole bath mixer for concealed installation wall-mounted with cross handles and hand shower
    Specification

    • Surfaces:

      - 48443000 Chrome

      - 48443140 Brushed Bronze

      - 48443250 Brushed Gold Optic

      - 48443300 Polished Red Gold

      - 48443310 Brushed Red Gold

      - 48443330 Polished Black Chrome

      - 48443340 Brushed Black Chrome

      - 48443800 Stainless Steel Optic

      - 48443820 Brushed Nickel

      - 48443950 Brushed Brass

      - 48443990 Polished Gold Optic

      Specification:

      • consists of: 3-hole bath mixer, hand shower, shower holder, shower hose

      • 2 functions

      • projection: 220 mm

      • spray type mixer: normal spray

      • maximum flow rate at 3 bar: 25,7 l/min

      • flow rate of hand shower at 3 bar: 8 l/min

      • ceramic valves hot/cold 90°

      • diverter with automatic resetting

      • connection dimension: DN15

      • connection type: basic set

      • wall-mounted

      • min. operating pressure: 1 bar

      • max. operating pressure: 10 bar

    Technical specification
    • Unique ref.48443XXX
    • Product familyBath mixer
    • Product groupAXOR One
    • TypeObject (single object)
    • Date of publishing2025-06-26
    • Edition number1
    • Height (mm)272
    • Width (mm)370
    • Depth (mm)235
    Links
    Related
    • Designed inGermany
    • Manufactured inGermany
    • Weight Net (Kg)2
    Classification
    • BIMobject CategorySanitary - Taps & Mixers
    • IFC classificationValve
    • ETIM CodeEC010862
    • ETIM NameBath mixing tap
    • UNSPSC nameSanitary ware
    • UNSPSC code301815
    • Uniclass 2015 CodePr_40_20_87
    • Uniclass 2015 DescriptionTaps and water supply outlet fittings
    • CSI MasterFormat 2014 Code22 41 39
    • CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
    • OmniClass Number23-31 11 00
    • OmniClass TitleFaucets
    • CSI UniFormat II CodeD2010
    • CSI UniFormat II TitlePlumbing Fixtures
