48020USA AXOR One Basin mixer Select 170 without waste set

48020USA AXOR One Basin mixer Select 170 without waste set

48020USA AXOR One Basin mixer Select 170 without waste set

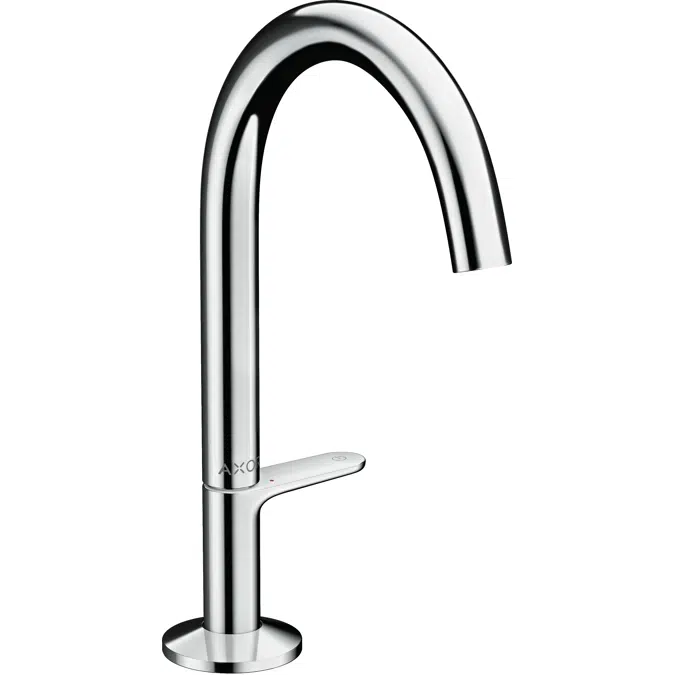

AXOR One Basin mixer Select 170 without waste set

Specification

Surfaces:
- 48020701 Matt White
- 48020001 Chrome
- 48020141 Brushed Bronze
- 48020671 Matt Black
- 48020341 Brushed Black Chrome
- 48020251 Brushed Gold Optic
- 48020821 Brushed Nickel
- 48020801 Stainless Steel Optic
- 48020991 Polished Gold Optic
Specification:
• ComfortZone 170
• projection: 140 mm
• spray type: normal spray
• maximum flow rate at 3 bar: 4,5 l/min
• Select cartridge with temperature control
• temperature limitation adjustable
• suitable for continuous flow water heaters
• connection type: G ⅜ compression
• connection dimension: DN15
• cold water in middle position

Technical specification

Unique ref.48020USA
Product familyAXOR One
Product groupBasin mixers
TypeObject (single object)
Date of publishing2022-09-28
Edition number1
Height (mm)9.75
Width (mm)3.25
Depth (mm)6.89

Links

Product urlhttps://www.axor-design.com/articledetail--48020701
Technical descriptionhttps://www.axor-design.com/articledetail--48020001

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)3.9

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationValve
ETIM CodeEC011328
ETIM NameWashbasin mixing tap
Uniclass 2015 CodePr_40_20_76
Uniclass 2015 DescriptionSanitary accessories
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets

Region availability

North America
Canada
United States
