48001XXX AXOR One Single lever basin mixer 70 with lever handle and waste set
48001XXX AXOR One Single lever basin mixer 70 with lever handle and waste set
    AXOR

    48001XXX AXOR One Single lever basin mixer 70 with lever handle and waste set

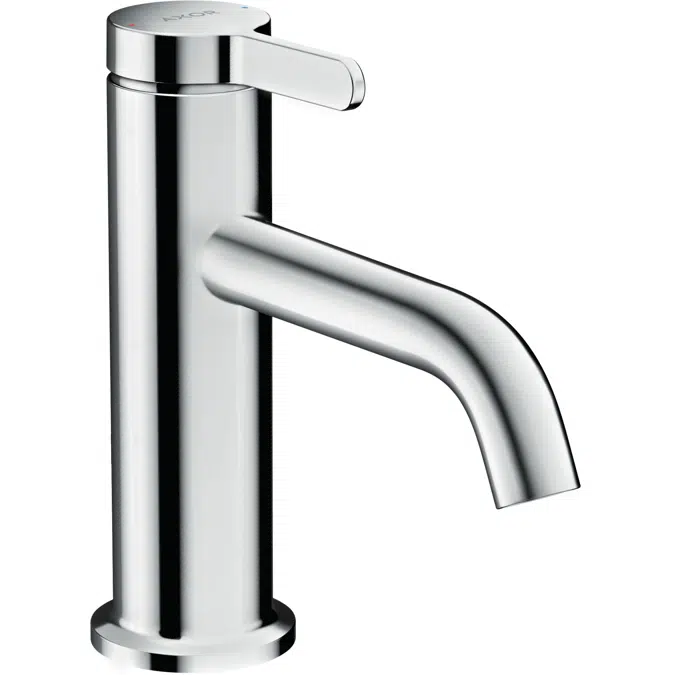

    AXOR One Single lever basin mixer 70 with lever handle and waste set
    Specification

    • Surfaces:

      - 48001000 Chrome

      - 48001340 Brushed Black Chrome

      - 48001700 Matt White

      - 48001670 Matt Black

      - 48001950 Brushed Brass

      - 48001990 Polished Gold Optic

      - 48001250 Brushed Gold Optic

      - 48001140 Brushed Bronze

      - 48001300 Polished Red Gold

      - 48001310 Brushed Red Gold

      - 48001820 Brushed Nickel

      - 48001800 Stainless Steel Optic

      - 48001330 Polished Black Chrome

      - 48001020 Polished Chrome

      - 48001260 Brushed Chrome

      - 48001830 Polished Nickel

      - 48001130 Polished Bronze

      - 48001930 Polished Brass

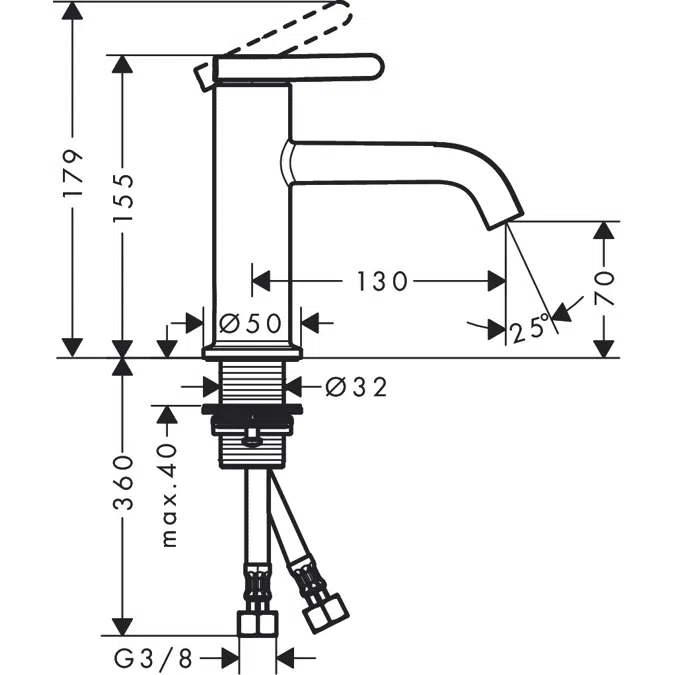

      Specification:

      • consists of: single lever basin mixer, waste set

      • ComfortZone 70

      • projection: 130 mm

      • spout height: 70 mm

      • spray type: normal spray

      • maximum flow rate at 3 bar: 5 l/min

      • ceramic cartridge

      • temperature limitation adjustable

      • suitable for continuous flow water heaters

      • non-closing waste set

      • material waste set: metal

      • connection type: G ⅜ connections

      • connection dimension: DN15

      • EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
    Technical specification
    • Unique ref.48001XXX
    • Product familyAXOR One
    • Product groupBasin mixers
    • TypeObject (single object)
    • Date of publishing2022-09-28
    • Edition number1
    • Height (mm)155
    • Width (mm)50
    • Depth (mm)155
    Links
    Related
    • Designed inGermany
    • Manufactured inGermany
    • Weight Net (Kg)1.25
    Classification
    • BIMobject CategorySanitary - Taps & Mixers
    • IFC classificationValve
    • ETIM CodeEC010862
    • ETIM NameBath mixing tap
    • UNSPSC nameSanitary ware
    • UNSPSC code301815
    • Uniclass 2015 CodePr_40_20_87
    • Uniclass 2015 DescriptionTaps and water supply outlet fittings
    • CSI MasterFormat 2014 Code22 41 39
    • CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
    • OmniClass Number23-31 11 00
    • OmniClass TitleFaucets
    • CSI UniFormat II CodeD2010
    • CSI UniFormat II TitlePlumbing Fixtures
